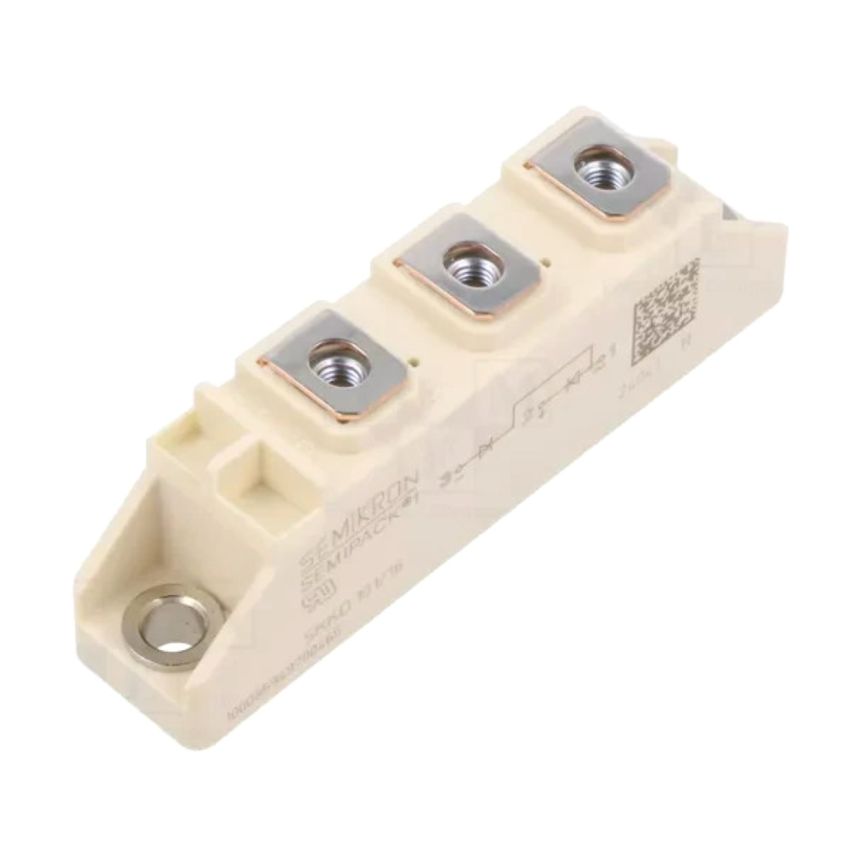

SKKD101-16 Module: diode; double series; 1.6kV; If: 101A; SEMIPACK1; screw

The SKKD101-16 is a heavy-duty diode module designed for high-power applications that require uncompromising reliability and extreme voltage tolerance. Built around the industry-standard SEMIPACK 1 housing, this module features a double series diode configuration, making it an exceptionally versatile component for large-scale power rectification. With a massive reverse voltage rating of 1.6kV (1600V), the SKKD101-16 is engineered to thrive in high-voltage environments, such as industrial motor drives, high-voltage power supplies, and power grid infrastructure. Its ability to handle a continuous forward current of 101A makes it a powerhouse in the world of power electronics, providing the necessary capacity to drive heavy machinery and large-scale electrical systems with ease and efficiency, ensuring that your operations remain smooth and uninterrupted.

One of the defining characteristics of the SKKD101-16 is its robust mechanical design. The SEMIPACK 1 package is specifically engineered for high-power semiconductors, featuring a modular construction that simplifies installation and maintenance. The screw-terminal connections provide a secure, low-resistance electrical interface that is resistant to loosening under the stresses of vibration and thermal expansion. This is particularly important in industrial settings where equipment is subject to constant mechanical stress. The baseplate of the module is electrically isolated, which allows multiple modules to be mounted on a single heat sink without the risk of short circuits. This isolation greatly simplifies the thermal management design, allowing for more compact and efficient cooling systems in large power cabinets and control panels.

The double series configuration inside the SKKD101-16 offers significant advantages for circuit designers. By having two diodes connected in series within a single module, engineers can easily implement full-bridge or half-bridge rectification circuits with fewer individual components. This reduces the complexity of the wiring and decreases the overall footprint of the power assembly. The internal diodes are carefully matched to ensure balanced performance and thermal distribution, which prevents localized overheating and extends the life of the module. Whether used in non-controlled rectifiers for AC/DC converters, line rectifiers for transistorized AC motor controllers, or field supply for DC motors, the SKKD101-16 provides a stable and predictable performance that professional engineers can rely on for their most critical designs.

Thermal performance is a key factor in the longevity of high-current diode modules, and the SKKD101-16 excels in this regard. The module is designed with high-quality ceramic insulation that provides excellent heat transfer from the silicon chips to the metal baseplate. This ensures that the junction temperature remains within safe limits even during continuous operation at the rated 101A current. By effectively dissipating heat, the module minimizes thermal stress on the internal semiconductors, reducing the likelihood of premature failure. This makes the SKKD101-16 an ideal choice for applications with high duty cycles, such as battery chargers for electric vehicles, electroplating equipment, and large-scale DC power plants where the equipment must operate 24/7 with minimal downtime.

Furthermore, the SKKD101-16 is built to withstand extreme electrical transients. In industrial environments, voltage spikes and surges are a common occurrence, and the 1.6kV rating provides a substantial safety margin to protect against these anomalies. The rugged construction of the SEMIPACK 1 housing also provides protection against environmental contaminants, ensuring that the internal components remain isolated from dust and moisture. This level of durability is why the SKKD101-16 is a staple in industries ranging from heavy manufacturing to renewable energy. Its proven track record in the field makes it a low-risk, high-reward choice for any project that demands the highest levels of power density and operational reliability in a standardized, easy-to-use form factor.

In conclusion, the SKKD101-16 SEMIPACK 1 Diode Module is the ultimate solution for high-power rectification needs. Its combination of 101A current capacity, 1.6kV voltage rating, and double series configuration makes it a versatile and powerful tool for any electrical engineer. The secure screw terminals and isolated baseplate ensure that it is as easy to install as it is reliable to operate. By choosing the SKKD101-16, you are ensuring that your power systems are built on a foundation of quality and performance that can withstand the test of time and the rigors of industrial use. Invest in the best for your high-voltage applications. Purchase the SKKD101-16 today and take control of your industrial power requirements with confidence and precision.
