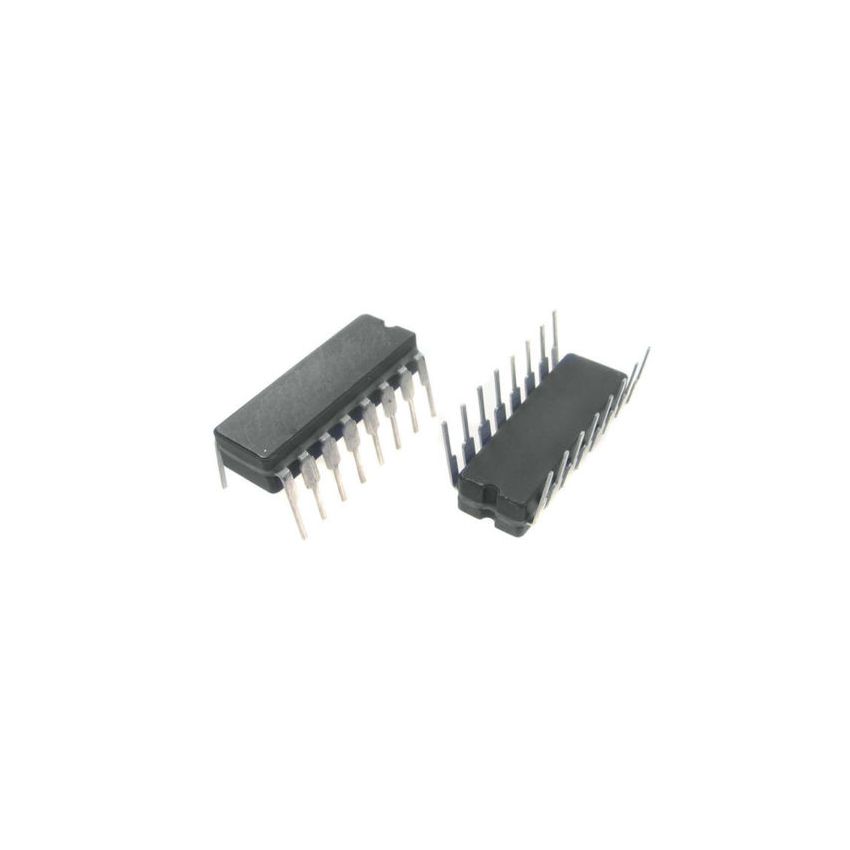

SN7404J INTEGRATED CIRCUIT CDIP-14

The SN7404J integrated circuit is a hex inverter housed in a CDIP-14 (Ceramic Dual In-Line Package) package. This IC provides six independent inverters, each capable of taking an input signal and producing its logical inverse at the output. The CDIP package offers enhanced thermal and environmental protection compared to standard plastic DIP packages, making it suitable for applications requiring higher reliability and robustness. The SN7404J is a fundamental component in digital logic circuits, used for signal inversion, waveform shaping, and implementing basic logic functions. Its ceramic construction ensures stable performance across a wider temperature range and in harsh environments.

The CDIP-14 package of the SN7404J provides excellent hermetic sealing, protecting the internal circuitry from moisture and contaminants. This makes it ideal for use in aerospace, military, and industrial applications where reliability is paramount. The SN7404J operates typically at a 5V supply voltage, making it compatible with TTL logic families. Its fast switching speeds allow it to process signals efficiently, ensuring minimal delay in digital circuits. The ceramic package also offers improved heat dissipation, allowing the IC to operate at higher power levels without compromising performance. The SN7404J is a dependable choice for critical applications where performance and durability are essential.

Applications for the SN7404J include signal conditioning, oscillator circuits, and logic gate implementation. In signal conditioning, it can be used to invert and sharpen digital signals, improving their clarity and reliability. In oscillator circuits, the inverters can be configured to create stable and precise timing signals. The SN7404J can also be combined with other logic gates to create more complex functions, such as NAND and NOR gates. Its versatility and robust construction make it a valuable component in a wide range of digital systems. The SN7404J's ability to withstand harsh conditions ensures long-term reliability and performance.

When selecting the SN7404J, consider the specific environmental requirements of your application. Ensure that the operating voltage and temperature range are compatible with your system. Proper decoupling capacitors should be used to minimize noise and ensure stable operation. Always refer to the datasheet for detailed specifications and application guidelines. The SN7404J offers a high-reliability solution for signal inversion and logic gate implementation, making it a worthwhile investment for critical applications. Its robust ceramic package and stable performance ensure long-term dependability. Upgrade your digital designs with the SN7404J hex inverter IC. Order now and experience the difference in quality and performance.
