SN7474N SN7474N DUAL D-TYPE POSITIVE-EDGE-TRIGGERED FLIP-FLOP DIP

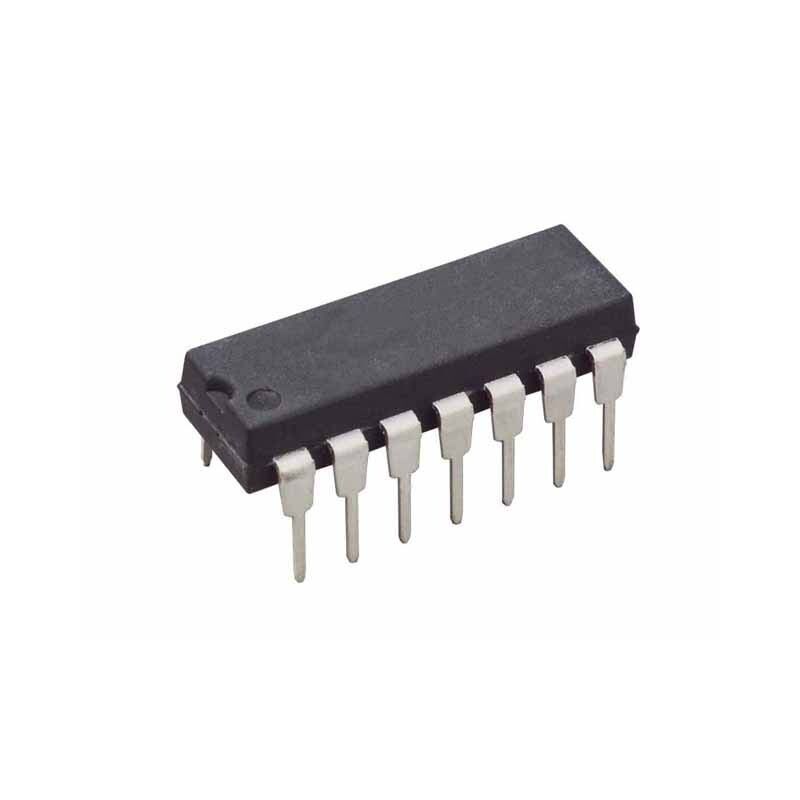

The SN7474N is a dual D-type positive-edge-triggered flip-flop integrated circuit, packaged in a 14-DIP (Dual In-Line Package). This IC contains two independent D flip-flops, each capable of storing a single bit of data. The flip-flops are positive-edge-triggered, meaning that the data at the D input is transferred to the Q output only on the rising edge of the clock signal. The SN7474N is a fundamental building block in sequential logic circuits, used for data storage, shift registers, and counters. Its reliable performance and ease of use make it a popular choice for both hobbyists and professional engineers.

The 14-DIP package of the SN7474N allows for easy insertion into breadboards, prototyping boards, and PCBs (Printed Circuit Boards). Each flip-flop has a D input, a clock input, a Q output, a Q' (Q-bar) output, a set input, and a reset input. The set and reset inputs are active-low, meaning that a low signal on these inputs will set or reset the flip-flop, respectively, regardless of the clock signal. The SN7474N operates typically at a 5V supply voltage, making it compatible with TTL logic families. Its fast switching speeds allow it to process signals efficiently, ensuring minimal delay in sequential circuits.

Applications for the SN7474N include shift registers, counters, and data storage. In shift registers, the flip-flops are cascaded together to shift data from one stage to the next on each clock pulse. In counters, the flip-flops are configured to count the number of clock pulses. In data storage, the flip-flops are used to store individual bits of data. The SN7474N's versatility and ease of use make it a valuable component in a wide range of digital systems. Its dual flip-flop configuration allows for efficient use of board space and reduces the number of ICs required in a design.

When selecting the SN7474N, consider its positive-edge-triggered operation and the active-low set and reset inputs. Ensure that the operating voltage and temperature range are compatible with your system. Proper decoupling capacitors should be used to minimize noise and ensure stable operation. Always refer to the datasheet for detailed specifications and application guidelines. The SN7474N offers a cost-effective solution for data storage and sequential logic implementation, making it a worthwhile choice for simple digital systems. Its ease of use and reliable performance make it a valuable asset for any digital design. Enhance your digital projects with the SN7474N dual D-type flip-flop IC. Order yours today and experience seamless integration and dependable performance.
