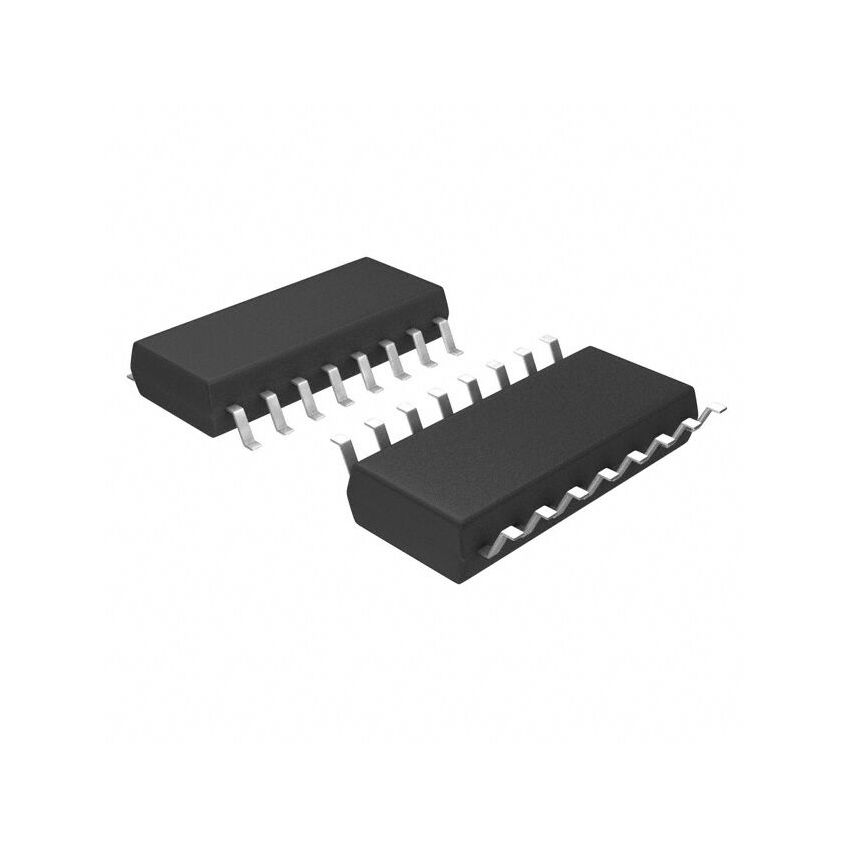

SN74ALS139NSR SMD INTEGRATED CIRCUIT SOP-16

The SN74ALS139NSR is a high-speed, dual 2-to-4 line decoder/demultiplexer integrated circuit, designed for surface mount applications and housed in a compact SOP-16 package. This device is part of the Advanced Low-Power Schottky (ALS) family, offering a balance of high speed and low power consumption. It's ideal for address decoding, memory chip selection, and data routing in digital systems. The SN74ALS139NSR provides two independent 2-to-4 line decoders, allowing for versatile control and selection of multiple devices or memory locations. Its small size and ease of integration make it a popular choice among digital design engineers.

This decoder/demultiplexer features active-low outputs, providing a convenient way to enable or select devices with active-low enable inputs. The SN74ALS139NSR operates over a wide voltage range, typically from 4.5V to 5.5V, making it compatible with standard TTL logic levels. Its low propagation delay ensures fast switching speeds, enabling high-performance operation in demanding applications. The device also includes an enable input, allowing for easy cascading of multiple decoders to create larger decoding networks. The SN74ALS139NSR is designed to minimize noise and signal distortion, ensuring reliable operation in noisy environments.

The SOP-16 package of the SN74ALS139NSR facilitates easy surface mounting and provides excellent thermal contact with the printed circuit board. This allows for efficient heat dissipation, preventing overheating and ensuring reliable operation. The device is commonly used in memory systems for selecting individual memory chips or banks. It is also used in address decoding circuits for microprocessors and microcontrollers. The SN74ALS139NSR is also suitable for use in data routing applications, where it can be used to direct data to different destinations based on the input address.

Key applications for the SN74ALS139NSR include memory chip selection, address decoding, data routing, and control logic. It is also used in computer systems, industrial control equipment, and telecommunications equipment. The SN74ALS139NSR is a versatile decoder/demultiplexer that can be used in a wide range of digital circuits. Its high speed, low power consumption, and ease of use make it an excellent choice for both professional and hobbyist applications. The device's compact size and easy mounting further enhance its appeal, making it a valuable component in modern electronic designs.

In conclusion, the SN74ALS139NSR SMD integrated circuit is a vital component for address decoding and data routing in digital systems. Its high speed, low power consumption, and compact SOP-16 package make it an ideal choice for a wide range of applications. Simplify your digital designs and ensure reliable operation with the SN74ALS139NSR. Order yours today and experience the peace of mind that comes with a dependable decoder/demultiplexer. Don't wait – invest in the SN74ALS139NSR and optimize your electronic designs now!
