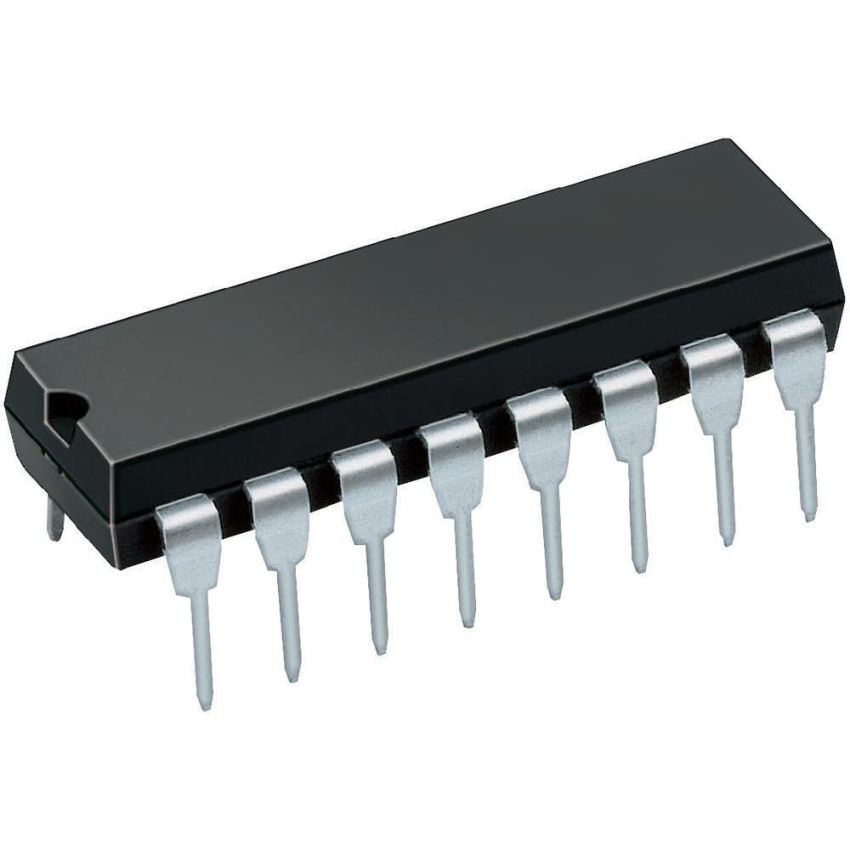

SN74HC157N IC MULTIPLEXER 4 X 2:1 16DIP

The SN74HC157N is a high-speed quad 2-to-1 line multiplexer. This integrated circuit selects one of two data sources for each of the four channels based on the state of a common select input. The selected data is then routed to the corresponding output. The device features a strobe input that, when high, forces all outputs to a low state, regardless of the select input or data inputs. The SN74HC157N is fabricated using silicon gate CMOS technology, offering high noise immunity and low power consumption. It is specified in compliance with JEDEC standard no. 7-A. The 16DIP (Dual In-line Package) makes it easy to use in breadboard and prototyping applications.

This multiplexer is ideal for applications where multiple data sources need to be selected and routed to a single output. The quad configuration allows for handling four independent channels simultaneously, making it suitable for parallel data processing and signal routing. The strobe input provides a convenient way to disable the outputs, allowing for easy control and testing. The SN74HC157N is commonly used in data selection, signal routing, and logic function generation in various digital systems. Its high speed and low power consumption make it a versatile choice for a wide range of applications.

Key features of the SN74HC157N include its high-speed operation, with typical propagation delays of around 13ns at 5V. The wide operating voltage range ensures compatibility with various logic levels. The low power consumption minimizes heat dissipation and extends battery life in portable devices. The quad configuration allows for handling four independent channels simultaneously. The device is also ESD protected, ensuring robustness against electrostatic discharge events. The SN74HC157N is available in a standard 16DIP package, making it easy to integrate into existing designs and new projects.

The SN74HC157N finds applications in a wide array of digital electronic systems. It is commonly used in computer systems for data selection and routing, allowing the processor to access different memory locations or peripheral devices. In industrial control systems, it serves as a multiplexer for sensor inputs and control signals. In communication systems, it is used for selecting different data streams or communication channels. The device is also suitable for use in automotive electronics, consumer electronics, and medical devices. Its versatility and reliability make it a popular choice among engineers and hobbyists alike.

In summary, the SN74HC157N is a versatile and reliable quad 2-to-1 line multiplexer. Its high-speed operation, wide operating voltage range, low power consumption, and quad configuration make it an excellent choice for a wide range of digital logic applications. Whether you are designing a new computer system, an industrial control system, or a consumer electronic device, the SN74HC157N can provide the multiplexing you need. Add the SN74HC157N to your cart now and experience the benefits of this high-performance multiplexer in your next project.
