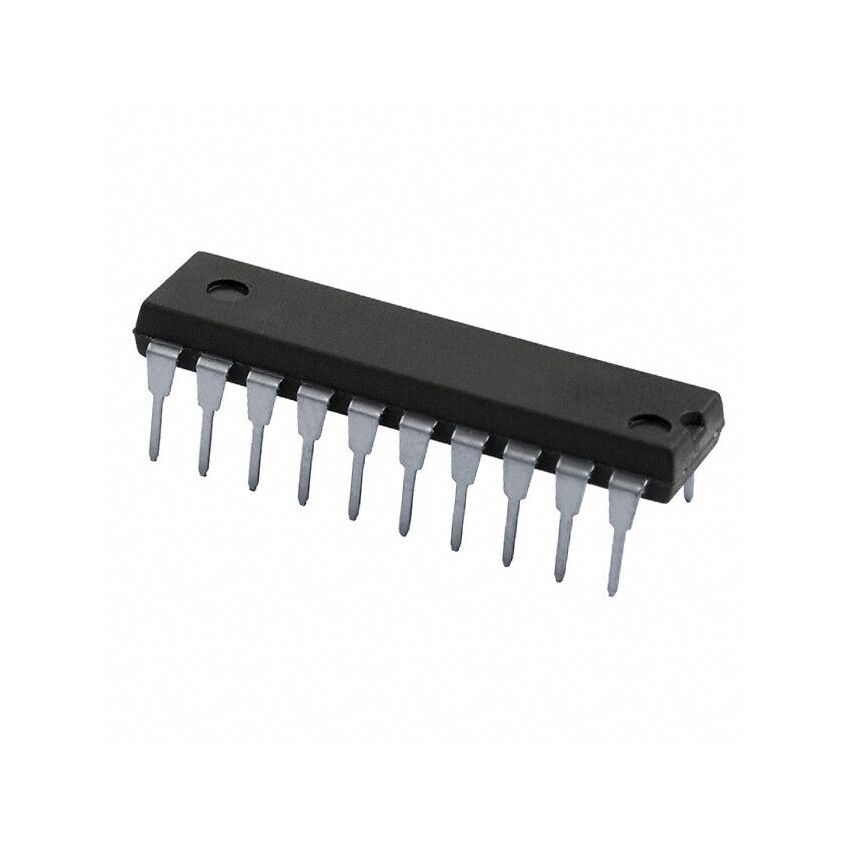

SN74LS374AN 8-Bit Registers with 3-State Outputs DIP-20

The SN74LS374AN is an 8-Bit Register featuring 3-State Outputs, a fundamental building block in digital systems for temporary data storage and manipulation. Encased in a DIP-20 (Dual In-Line Package), this integrated circuit is designed to latch and hold eight bits of data, providing a convenient way to store information for later use. The 3-state outputs allow the register to be easily connected to a data bus, enabling multiple devices to share the same bus lines without contention. This makes it an essential component for memory systems, data acquisition systems, and various digital control applications. Its robust design and compatibility with TTL (Transistor-Transistor Logic) voltage levels ensure reliable operation in a wide range of digital systems. The SN74LS374AN simplifies the process of data storage and retrieval, reducing the complexity of circuit design and improving overall system efficiency.

Key features of the SN74LS374AN include its eight D-type flip-flops, which latch and hold the input data on the rising edge of the clock signal. The 3-state outputs can be enabled or disabled, allowing the register to be connected to a data bus without interfering with other devices. The DIP-20 package allows for easy integration into breadboards and printed circuit boards (PCBs), facilitating prototyping and mass production. The device operates on a 5V power supply, making it compatible with a wide range of digital logic components. Furthermore, the SN74LS374AN is designed for high-speed operation, ensuring fast data transfer and processing. These features make it a versatile and reliable solution for data storage and manipulation in various applications.

The benefits of using the SN74LS374AN extend beyond its functional capabilities. Its TTL compatibility ensures seamless integration with other digital logic components, simplifying circuit design and reducing the need for additional interface circuitry. The DIP-20 package provides a convenient and standardized form factor for easy installation and replacement. The 3-state outputs allow for efficient sharing of data bus lines, reducing the number of components required and improving overall system efficiency. The high-speed operation ensures fast data transfer and processing, improving overall system performance. These advantages make the SN74LS374AN a cost-effective and efficient solution for data storage and manipulation in a wide range of applications.

Typical applications for the SN74LS374AN include memory systems, where it is used to store data temporarily before it is written to memory. It is also used in data acquisition systems, capturing data from sensors and other input devices. In digital control applications, the SN74LS374AN is used to store control signals and commands. Other applications include microcomputer systems, digital signal processing (DSP) systems, and various industrial control systems. The SN74LS374AN's versatility and ease of use make it a valuable component in any application requiring data storage and manipulation. Its ability to latch and hold data with 3-state outputs simplifies circuit design and improves overall system efficiency.

In conclusion, the SN74LS374AN 8-Bit Register with 3-State Outputs is a reliable and efficient solution for data storage and manipulation in a wide range of applications. Its TTL compatibility, DIP-20 package, 3-state outputs, and high-speed operation make it a versatile and easy-to-use component. By simplifying the process of data storage and retrieval, the SN74LS374AN reduces the complexity of circuit design and improves overall system efficiency. Upgrade your digital systems with the SN74LS374AN and experience the benefits of reliable and efficient data storage. Order yours today and take your digital designs to the next level!
