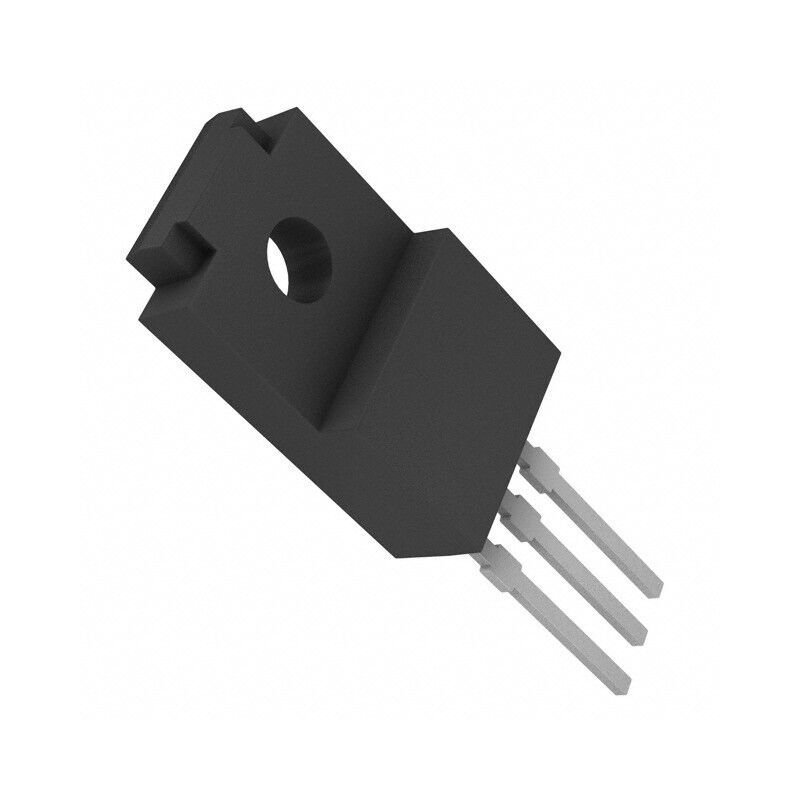

STP10NK70ZFP Transistor: N-MOSFET; unipolar; 700V; 5.4A; Idm: 34A; 35W; TO220FP

<p>The STP10NK70ZFP is a high-voltage N-channel MOSFET designed for efficient power switching in a variety of applications. This unipolar transistor boasts a drain-source voltage rating of 700V and a continuous drain current of 5.4A, with a pulsed drain current (Idm) of 34A. Encased in a TO220FP (Fully Isolated Package), the STP10NK70ZFP offers enhanced thermal performance and isolation, making it suitable for applications where safety and reliability are paramount. With a power dissipation rating of 35W, this MOSFET is designed for efficient power conversion and control. Its key features include low on-resistance, fast switching speed, and high avalanche ruggedness, ensuring reliable operation in demanding environments.</p><p>The STP10NK70ZFP's low on-resistance minimizes conduction losses, resulting in improved energy efficiency and reduced heat dissipation. Its fast switching speed reduces switching losses, further enhancing efficiency. The high avalanche ruggedness ensures that the MOSFET can withstand transient voltage spikes, preventing damage and ensuring reliable operation. The TO220FP package provides excellent thermal isolation, allowing the STP10NK70ZFP to operate at high voltages without compromising safety. This MOSFET is designed to meet the stringent requirements of modern power electronics applications, offering a balance of performance, safety, and reliability.</p><p>Typical applications for the STP10NK70ZFP include power supplies for consumer electronics, LED lighting ballasts, and high-voltage DC-DC converters. In power supplies, the STP10NK70ZFP can be used as a switching element to efficiently convert AC voltage to DC voltage. In LED lighting ballasts, it can be used to drive the LEDs with high efficiency and precise control. In high-voltage DC-DC converters, the STP10NK70ZFP can be used to step up or step down voltage levels with minimal losses. Its versatility and robust performance make it a valuable component in a wide range of power electronics designs.</p><p>From a technical standpoint, the STP10NK70ZFP features a gate threshold voltage of typically 3V, making it compatible with a wide range of gate drive circuits. Its input capacitance is relatively low, minimizing the drive power required. The MOSFET's total gate charge is also low, contributing to its fast switching speed. The STP10NK70ZFP is designed to operate over a wide temperature range, ensuring reliable performance in harsh environments. Its robust design and comprehensive specifications make it a reliable and efficient choice for demanding applications. The fully isolated package simplifies mounting and enhances safety.</p><p>In summary, the STP10NK70ZFP transistor offers a compelling combination of high voltage, high efficiency, and robust performance. Its low on-resistance, fast switching speed, and high avalanche ruggedness make it an ideal choice for power supplies, lighting ballasts, and DC-DC converters. The TO220FP package provides excellent thermal isolation and ease of mounting. Upgrade your power electronics designs with the STP10NK70ZFP and experience the difference. Order yours today and unlock the full potential of your applications!</p>
