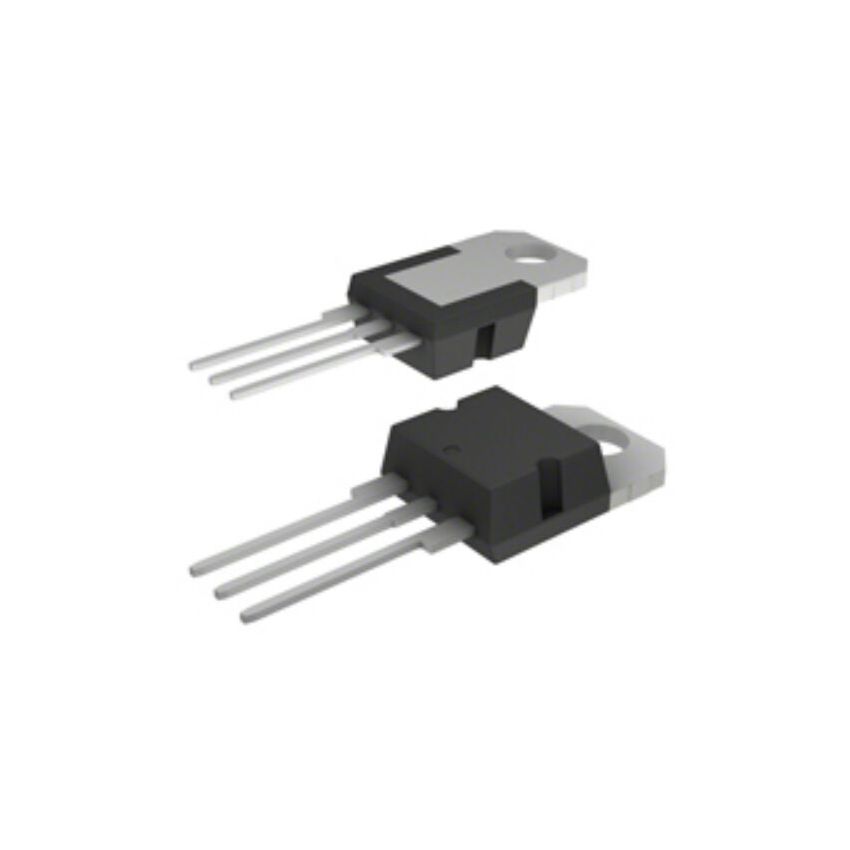

STMicroelectronics STP22NE10L N-Channel Power MOSFET TO-220

FAQs for Products

1. Given its high current handling, what are the recommended thermal management strategies for the STMicroelectronics STP22NE10L N-Channel Power MOSFET TO-220 to ensure optimal long-term reliability in continuous operation?

   Effective thermal management is crucial for maximizing the reliability and lifespan of the STMicroelectronics STP22NE10L N-Channel Power MOSFET TO-220, especially in high-current, continuous operation. The TO-220 package, while robust, requires proper heat sinking. It's recommended to mount the STP22NE10L onto an appropriately sized heat sink, chosen based on the expected power dissipation and ambient temperature, to maintain the junction temperature within safe operating limits. Utilizing thermal interface materials (TIMs) like thermal paste or pads between the device and the heat sink can significantly improve heat transfer efficiency. Additionally, forced air cooling (fans) may be necessary for applications pushing the device to its limits or operating in high ambient temperatures. Careful PCB layout, including sufficient copper pour connected to the drain tab, also aids in heat spreading. Regularly monitoring the case temperature during prototyping and ensuring adequate airflow around the component are best practices for optimal thermal performance and extended operational life of the STMicroelectronics STP22NE10L.

2. How does the low on-resistance (Rds(on)) and fast switching speed of the STMicroelectronics STP22NE10L N-Channel Power MOSFET TO-220 translate into efficiency gains for high-frequency switching applications?

   The STMicroelectronics STP22NE10L N-Channel Power MOSFET TO-220 is engineered for high efficiency, particularly in high-frequency switching applications like switching regulators and DC-DC converters. Its low on-resistance (Rds(on)) directly minimizes conduction losses, which are proportional to the square of the current and Rds(on). This means less power is dissipated as heat when the MOSFET is fully 'on'. Concurrently, the fast switching speed, characterized by low gate charge (Qg) and short rise/fall times, reduces switching losses. These losses occur during the transitions between the on and off states, where both voltage and current are present across the device. By minimizing the duration of these transitions, the STP22NE10L significantly cuts down the energy wasted during each switching cycle. Combined, these characteristics ensure that more input power is delivered to the load rather than being lost as heat within the STMicroelectronics STP22NE10L, leading to higher overall system efficiency, reduced cooling requirements, and improved power density in compact designs.

3. What are the critical gate drive considerations, including voltage levels and current sourcing/sinking capability, to fully leverage the performance of the STMicroelectronics STP22NE10L N-Channel Power MOSFET TO-220 in motor control or SMPS designs?

   Optimizing the gate drive for the STMicroelectronics STP22NE10L N-Channel Power MOSFET TO-220 is paramount for achieving its specified performance in applications like motor control and switched-mode power supplies (SMPS). The gate-source voltage (Vgs) must be sufficient to fully turn on the MOSFET, typically requiring a drive voltage between 10V and 15V to ensure the Rds(on) is minimized. Operating below the optimal Vgs can lead to increased conduction losses and potential thermal runaway. Furthermore, the gate driver must have adequate current sourcing and sinking capability to quickly charge and discharge the MOSFET's input capacitance (Ciss). A strong gate driver minimizes switching times, thereby reducing switching losses and improving overall efficiency, especially at higher frequencies. Insufficient gate current can lead to slow transitions, increased power dissipation, and even shoot-through conditions in half-bridge configurations. Therefore, selecting a dedicated MOSFET driver IC matched to the gate charge requirements of the STMicroelectronics STP22NE10L is highly recommended for robust and efficient operation.

4. Beyond general high-current applications, what specific design advantages does the STMicroelectronics STP22NE10L N-Channel Power MOSFET TO-220 offer for demanding motor driver or power amplification circuits?

   For demanding motor driver and power amplification circuits, the STMicroelectronics STP22NE10L N-Channel Power MOSFET TO-220 provides several distinct advantages. Its robust high current handling capability allows it to manage the significant inductive current spikes and continuous loads inherent in motor control, minimizing the need for parallel devices. The low Rds(on) reduces power dissipation, which is critical for efficiency in battery-powered applications or those requiring compact heat sinking. Furthermore, its fast switching characteristics are essential for high-frequency PWM (Pulse Width Modulation) motor control, enabling smoother motor operation, reduced audible noise, and precise speed/torque regulation. In power amplification, the STP22NE10L's ability to switch quickly with minimal losses helps maintain signal integrity and efficiency, particularly in Class D amplifiers. The thermally efficient TO-220 package also simplifies integration into these systems, allowing for straightforward mounting to heat sinks for reliable, long-term operation under varying load conditions, making the STMicroelectronics STP22NE10L a reliable choice for these demanding applications.

5. What inherent robustness features, such as avalanche energy ratings, should be considered when designing with the STMicroelectronics STP22NE10L N-Channel Power MOSFET TO-220 in environments prone to inductive spikes or transient overvoltages?

   When integrating the STMicroelectronics STP22NE10L N-Channel Power MOSFET TO-220 into systems susceptible to inductive spikes or transient overvoltages, understanding its inherent robustness features, particularly avalanche energy capability, is critical. Power MOSFETs like the STP22NE10L are designed to withstand a certain level of unclamped inductive switching (UIS) energy, where the device safely dissipates energy from an inductive load during turn-off, driving itself into avalanche breakdown. The specified repetitive (EAR) and non-repetitive (EAS) avalanche energy ratings in the datasheet indicate the device's capacity to handle such events without permanent damage. These ratings are crucial for applications involving inductive loads such as relays, solenoids, or motors. While the STMicroelectronics STP22NE10L offers inherent avalanche ruggedness, it's still good practice to consider external protection mechanisms like TVS diodes or snubber circuits for extremely high energy transients or to provide an additional safety margin, especially in mission-critical or harsh industrial environments, to ensure the long-term reliability of the component.

6. How does the balance between voltage rating and high current handling of the STMicroelectronics STP22NE10L N-Channel Power MOSFET TO-220 make it suitable for a broad range of demanding power switching applications?

   The STMicroelectronics STP22NE10L N-Channel Power MOSFET TO-220 strikes an excellent balance between its voltage rating and high current handling capability, making it exceptionally versatile for a wide array of demanding power switching applications. While specific voltage ratings are found in the detailed datasheet, the product description emphasizes its suitability for 'high-current applications' and 'high power levels.' This balance means the STP22NE10L can reliably switch significant currents without incurring excessive conduction losses, even in circuits with moderate voltage swings. Unlike devices optimized purely for ultra-low voltage or extremely high voltage, this MOSFET offers a sweet spot for applications such as 12V/24V/48V systems, where both substantial current delivery and sufficient voltage withstand are necessary. This versatility allows engineers to confidently deploy the STMicroelectronics STP22NE10L in motor drivers, automotive systems, industrial controls, and power supplies, where robust performance across a practical voltage and current range is a key design requirement, simplifying component selection and reducing inventory.

7. What derating guidelines or design practices are recommended for the STMicroelectronics STP22NE10L N-Channel Power MOSFET TO-220 to maximize its operational lifespan and maintain performance under continuous peak loads?

   To maximize the operational lifespan and ensure consistent performance of the STMicroelectronics STP22NE10L N-Channel Power MOSFET TO-220 under continuous peak loads, adhering to specific derating guidelines and design practices is essential. Firstly, it's recommended to operate the device with a voltage and current margin below its absolute maximum ratings. For instance, designing for a drain-source voltage (Vds) that is 70-80% of the maximum Vds rating and a continuous drain current (Id) that is 50-70% of the maximum Id (at a specified case temperature) can significantly extend its life. Junction temperature (Tj) is a critical factor; always aim to keep Tj well below the absolute maximum specified in the datasheet, ideally below 125°C for long-term reliability. This often necessitates robust thermal management, as previously discussed. Additionally, ensuring proper gate drive signal integrity, minimizing switching losses, and managing transient overvoltages through snubber circuits or TVS diodes contribute to derating. By implementing these practices, the STMicroelectronics STP22NE10L can provide stable, reliable performance over many years, even in challenging application environments.
