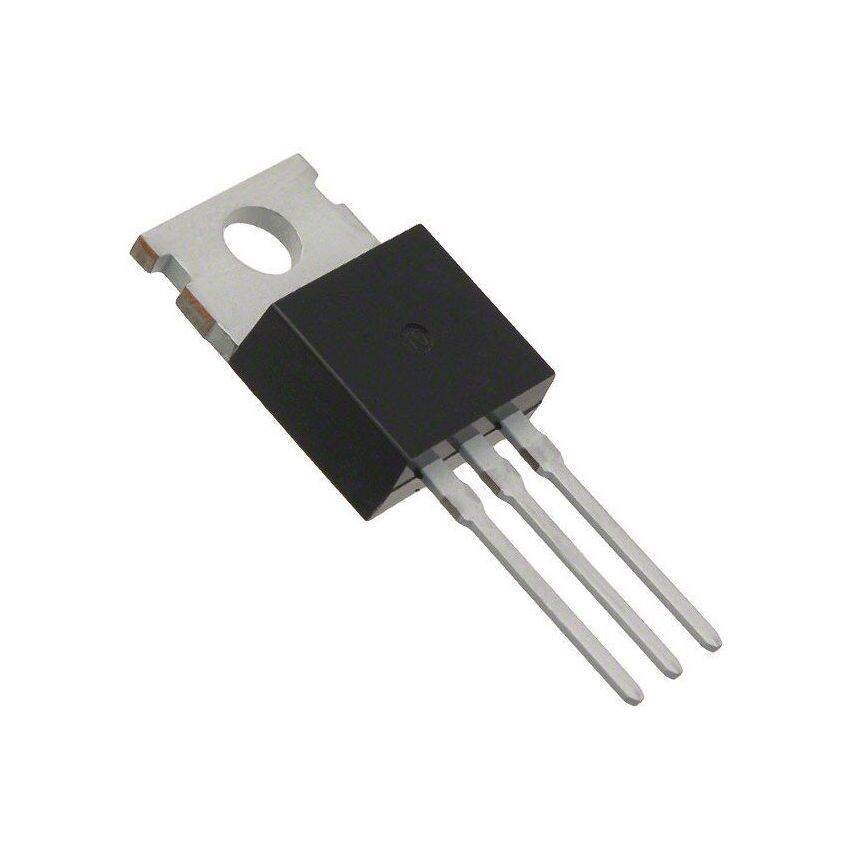

STP65NF06 TRANSISTOR TO-220

The STP65NF06 is a robust N-channel MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) designed for high-power switching applications. Encased in a TO-220 package, this transistor is ideal for applications requiring efficient power control and heat dissipation. With a drain-source voltage (Vds) rating of 60V and a continuous drain current (Id) of 65A, the STP65NF06 offers exceptional performance in demanding environments. Its key features include low on-resistance (RDS(on)), fast switching speeds, and high avalanche energy, making it suitable for power supplies, motor control, and DC-DC converters. The TO-220 package ensures easy mounting and effective heat transfer, contributing to reliable operation.

This N-channel MOSFET is commonly used in switch-mode power supplies (SMPS), uninterruptible power supplies (UPS), and motor drives. The STP65NF06's low on-resistance minimizes power dissipation, enhancing overall system efficiency and reducing heat generation. Its fast switching speeds allow for high-frequency operation, reducing the size and cost of passive components. The device's high avalanche energy rating provides robustness against voltage spikes and transient conditions, ensuring reliable performance in harsh environments. Furthermore, the STP65NF06 is widely employed in automotive systems, industrial automation, and renewable energy applications, demonstrating its broad applicability across diverse sectors.

The STP65NF06's specifications include a gate-source voltage (Vgs) of ±20V, a pulsed drain current (Idm) of 260A, and a power dissipation (Pd) of 150W. These parameters ensure safe and reliable operation within specified limits. The transistor's operating temperature range spans from -55°C to +175°C, allowing it to function effectively in extreme conditions. The TO-220 package provides excellent thermal conductivity, facilitating efficient heat dissipation and preventing overheating. The STP65NF06 is also RoHS compliant, ensuring adherence to environmental regulations and minimizing the use of hazardous substances. Its robust design and high-performance characteristics make it an excellent choice for demanding power applications.

When selecting the STP65NF06, consider its suitability for your specific application requirements. Evaluate the required voltage levels, current ratings, and switching speeds to ensure optimal performance. Proper gate drive techniques are essential to maximize the transistor's efficiency and prevent damage. Utilize appropriate heat sinking methods to maintain the transistor's junction temperature within acceptable limits. The STP65NF06 is a cost-effective and reliable solution for a wide range of power applications, offering excellent performance and ease of integration. Its widespread availability and comprehensive documentation make it a popular choice among designers and engineers.

In summary, the STP65NF06 N-channel MOSFET is a high-performance, versatile component suitable for numerous power switching applications. Its robust TO-220 package, exceptional electrical characteristics, and wide operating temperature range make it an ideal choice for demanding electronic designs. Whether you're building power supplies, motor drives, or DC-DC converters, the STP65NF06 offers reliable and efficient performance. Don't hesitate to add this essential component to your toolkit and experience the difference it makes in your projects. Order your STP65NF06 transistors today and elevate your power electronic designs to the next level!
