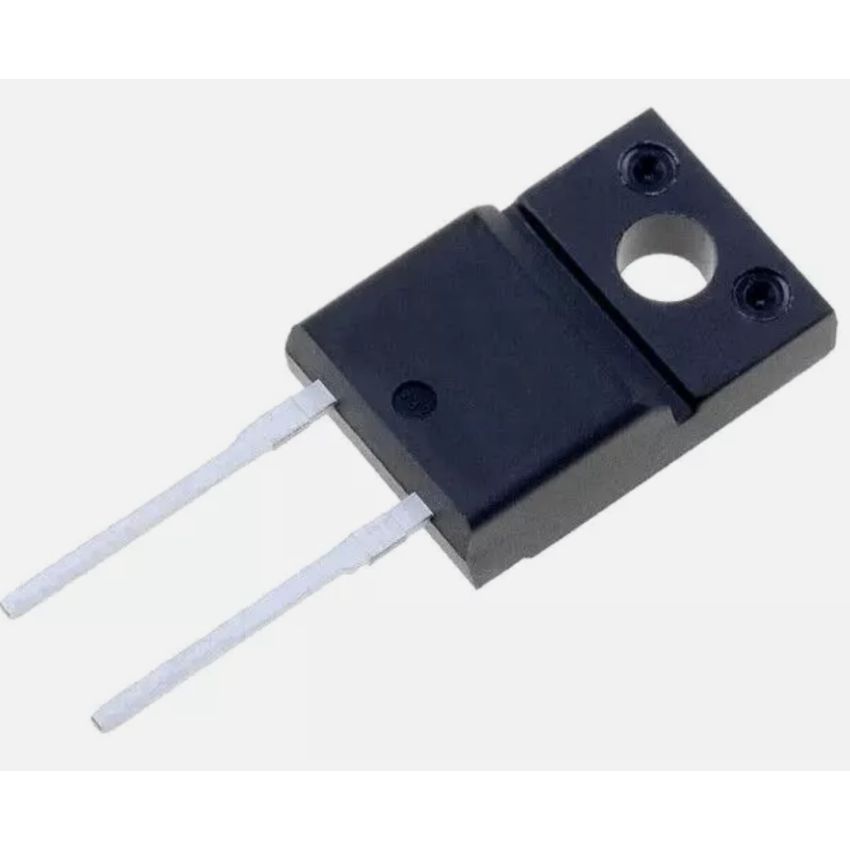

STTH812FP Diode: rectifying; THT; 1.2kV; 8A; tube; Ifsm: 80A; TO220FPAC; 50ns

The STTH812FP is a high-performance, ultrafast recovery rectifier diode designed to meet the demanding requirements of modern high-voltage power conversion systems. Engineered for efficiency and reliability, this diode is an essential component for power supply designers who need to minimize switching losses and maximize overall system performance. With a formidable repetitive peak reverse voltage rating of 1.2kV (1200V), the STTH812FP is perfectly suited for use in high-voltage environments, including industrial power supplies, motor drives, and renewable energy inverters. Its through-hole technology (THT) design ensures a robust physical connection to the printed circuit board, making it ideal for applications where mechanical durability and ease of assembly are paramount. This diode represents the pinnacle of STMicroelectronics' power discrete technology, offering a balance of high-speed operation and high-voltage capability.

Performance is at the core of the STTH812FP, featuring an ultrafast recovery time of just 50ns. This exceptionally short recovery period is crucial in high-frequency switching applications, as it drastically reduces the energy dissipated during the transition from a conducting to a non-conducting state. By minimizing these switching losses, the STTH812FP helps to improve the efficiency of switch-mode power supplies (SMPS) and reduces the thermal load on the entire system. With a continuous forward current rating of 8A, it can comfortably handle significant power levels, while its impressive peak forward surge current (Ifsm) of 80A ensures that the device can withstand the high-current inrush events common during system startup or under fault conditions. This combination of speed and ruggedness makes it a versatile choice for a wide array of power electronic circuits.

The STTH812FP is housed in a TO-220FPAC package, which offers significant advantages in terms of thermal management and safety. The 'FP' designation stands for Full Pack, meaning the package is fully isolated. This internal insulation eliminates the need for external insulating washers or pads when mounting the diode to a heatsink, which simplifies the assembly process and reduces the risk of electrical arcing or short circuits. The TO-220FPAC format allows for efficient heat dissipation, ensuring that the diode remains within its optimal operating temperature range even under heavy loads. This is particularly important in compact power designs where airflow may be limited. The package is also designed to meet stringent creepage and clearance requirements, providing an extra layer of protection in high-voltage applications where safety and regulatory compliance are critical.

Ideal for use in a variety of demanding applications, the STTH812FP shines in bridge rectifiers, freewheeling circuits, and boost diodes in power factor correction (PFC) stages. In solar inverters and uninterruptible power supplies (UPS), its ability to handle high voltages with minimal loss contributes directly to the energy rating and reliability of the final product. Industrial automation systems also benefit from the STTH812FP's robust design, as it can endure the harsh electrical environments often found on factory floors. The diode's low forward voltage drop further enhances efficiency by reducing conduction losses, making it an eco-friendly choice for designs aiming to meet strict energy consumption standards. Its consistent performance across a wide temperature range ensures that your equipment will operate reliably in both indoor and outdoor environments.

Reliability is a key factor when selecting power components, and the STTH812FP is built to last. STMicroelectronics employs advanced silicon technology to ensure that these diodes exhibit stable characteristics over their entire lifespan. The device's high immunity to voltage transients and its robust surge current handling make it a dependable component in systems prone to power fluctuations. For repair technicians, the STTH812FP is a high-quality replacement part that can restore the functionality of high-voltage equipment, often providing better performance than the original components. Its industry-standard footprint and isolated package make it an easy drop-in replacement for many other 8A, 1200V diodes, allowing for quick and efficient repairs without the need for extensive circuit modifications. This diode is a testament to the importance of quality discrete components in the longevity of electronic systems.

Optimize your power electronics with the STTH812FP Ultrafast Rectifier Diode and experience the benefits of high-speed, high-voltage efficiency. Whether you are developing a new cutting-edge power converter or maintaining existing industrial machinery, this diode provides the performance and safety features required for success. Its 1.2kV rating, 8A capacity, and 50ns recovery time make it a leader in its class, while the isolated TO-220FPAC package ensures easy and safe integration into your designs. Don't compromise on the heart of your power system; choose a diode that offers the perfect mix of speed, power, and protection. Order the STTH812FP today and ensure your projects are powered by the best in ultrafast rectification technology. With its proven track record and superior technical specifications, it is the clear choice for any professional power application. Secure your stock now and drive your efficiency to new heights.
