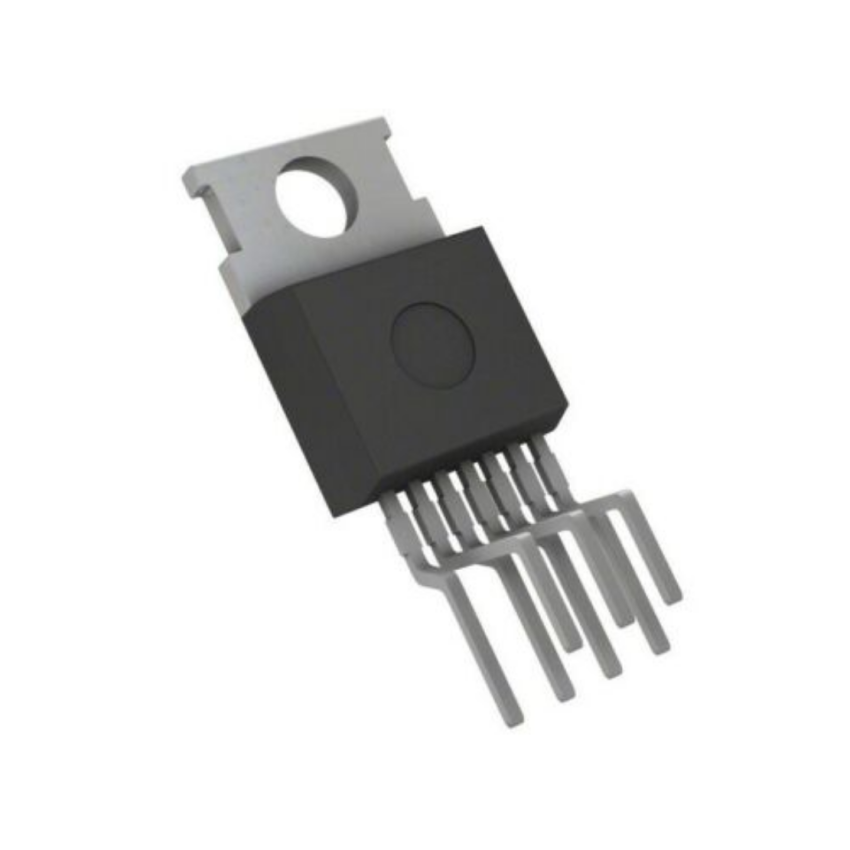

STV9325 INTEGRATED CIRCUIT TO-220-7

The STV9325 is a vertical deflection output integrated circuit designed for CRT (Cathode Ray Tube) televisions and monitors. Encased in a TO-220-7 package, this IC provides the necessary drive signals to control the vertical deflection coil, ensuring accurate and stable image display. The STV9325 is known for its high linearity and low power dissipation, making it a reliable and efficient solution for CRT display systems. Its integrated design simplifies circuit design and reduces the number of external components required. This IC is a popular choice for manufacturers of CRT televisions and monitors.

Key features of the STV9325 include its high output current capability, which allows it to drive large deflection coils, and its built-in flyback generator, which simplifies the design of the vertical deflection circuit. The TO-220-7 package provides excellent thermal performance, allowing the IC to operate at high power levels without overheating. This integrated circuit is designed for ease of use, requiring minimal external components. Its built-in protection features, such as overcurrent protection and thermal shutdown, ensure safe and reliable operation. The STV9325 is a versatile IC that can be used in a wide range of CRT display systems.

The STV9325 finds applications in CRT televisions, where it is used to drive the vertical deflection coil and control the vertical position of the electron beam. It is also used in CRT monitors for computer displays and other applications. In video projectors, the STV9325 can be used to drive the vertical deflection coil in the CRT projection system. Hobbyists and DIY enthusiasts may find the STV9325 useful for repairing or modifying CRT televisions and monitors. Its robust design and reliable performance make it a popular choice among engineers and technicians.

When integrating the STV9325 into a circuit, it is important to follow the manufacturer's recommended guidelines for power supply decoupling and heatsinking to ensure optimal performance and reliability. Proper grounding techniques are also essential to prevent noise and interference. The datasheet provides detailed information on the IC's electrical characteristics, pinout configuration, and application circuits. By carefully considering these factors, users can unlock the full potential of the STV9325 and achieve superior vertical deflection performance. The TO-220-7 package is designed for efficient heat transfer, contributing to the IC's overall reliability.

Ready to bring your CRT displays to life with a reliable vertical deflection IC? The STV9325 Integrated Circuit is your perfect solution. Designed for CRT televisions and monitors, this IC delivers accurate and stable image display. Don't compromise on picture quality – invest in the STV9325 and experience the difference. Order now and unleash the power of precision display control!
