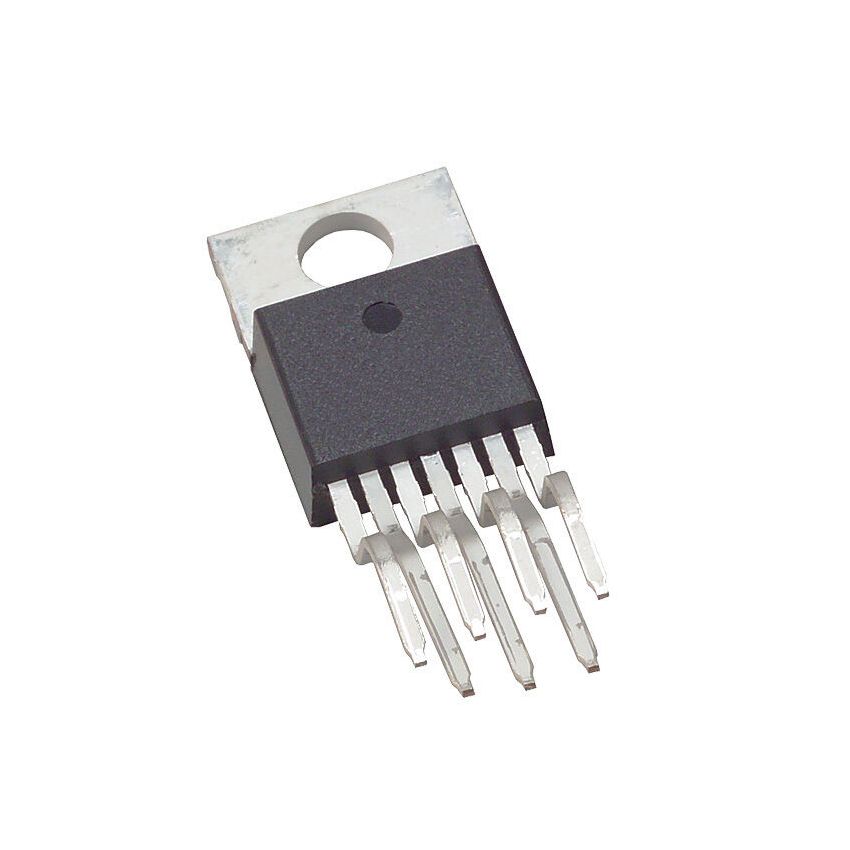

STV9379FA STM INTEGRATED CIRCUIT TO-220-7

The STV9379FA is a vertical deflection booster integrated circuit from STM (STMicroelectronics), designed for use in CRT (Cathode Ray Tube) televisions and monitors. Housed in a TO-220-7 package, this IC provides the necessary power and control signals to drive the vertical deflection coil, ensuring accurate and stable image display. The STV9379FA is known for its high performance, reliability, and integrated protection features, making it a popular choice among TV manufacturers and repair technicians. Its robust design and efficient operation contribute to the overall quality and longevity of CRT displays. The STV9379FA simplifies the design process by integrating multiple functions into a single chip.

Key features of the STV9379FA include a high output current capability, typically around 2A, which is sufficient to drive the vertical deflection coil in most CRT displays. It operates on a wide supply voltage range, typically from 10V to 35V, providing flexibility in power supply design. The IC incorporates several protection features, including thermal shutdown, overcurrent protection, and short-circuit protection, ensuring safe and reliable operation. Its low power dissipation minimizes heat generation and improves overall efficiency. The STV9379FA also features a vertical ramp generator and a flyback generator, simplifying the design of the vertical deflection circuit.

The TO-220-7 package of the STV9379FA is designed for easy mounting and efficient heat dissipation. The package's large surface area allows for effective transfer of heat away from the IC, preventing overheating and ensuring long-term reliability. A heatsink is typically required to maximize the IC's performance and prevent thermal shutdown. The TO-220-7 package also provides excellent mechanical stability, protecting the IC from physical stress and vibration. This makes the STV9379FA a reliable choice for demanding applications in CRT televisions and monitors.

When integrating the STV9379FA into a circuit, it is essential to follow the manufacturer's recommendations for external components and circuit layout. Proper decoupling capacitors should be used to minimize noise and ensure stable operation. The heatsink should be properly sized and mounted to provide adequate cooling. It is also important to protect the IC from electrostatic discharge (ESD) during handling and installation. By following these guidelines, engineers can ensure the reliable and efficient operation of the STV9379FA in their designs.

In summary, the STV9379FA integrated circuit is a high-performance and reliable vertical deflection booster for CRT televisions and monitors. Its high output current, wide supply voltage range, and integrated protection features make it an excellent choice for demanding applications. Whether you are designing a new CRT display or repairing an existing one, the STV9379FA offers the performance and reliability you need. Add the STV9379FA to your cart today and ensure the quality and stability of your CRT display!
