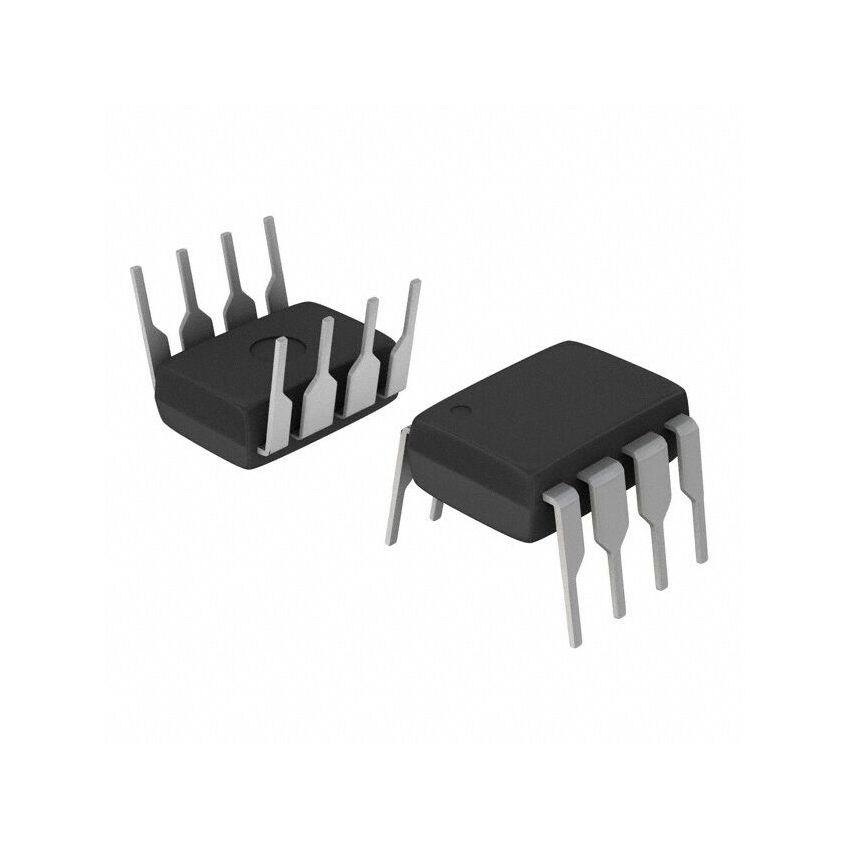

TC1044SCPA IC REG CHARGE PUMP INV 20MA 8DIP

The TC1044SCPA is a highly efficient and versatile integrated circuit designed for voltage conversion applications. Specifically, it functions as a charge pump inverter, capable of inverting a positive input voltage to a corresponding negative output voltage. This makes it an ideal solution for generating negative rails in systems that primarily operate on positive voltages. The device is designed to deliver up to 20mA of output current, suitable for powering low-power analog circuits, operational amplifiers, and other sensitive components. Housed in an 8-pin DIP package, the TC1044SCPA is easy to integrate into existing circuit designs and prototyping boards, making it a favorite among hobbyists and professional engineers alike.

At the heart of the TC1044SCPA's operation is a charge pump circuit, which utilizes capacitors to store and transfer charge, effectively inverting the input voltage. This approach offers several advantages over traditional inductor-based inverters, including smaller size, lower noise, and reduced electromagnetic interference (EMI). The device operates with a wide input voltage range, typically from 1.5V to 10V, providing flexibility in various power supply configurations. Its high conversion efficiency minimizes power loss and heat generation, contributing to overall system reliability and longevity. The TC1044SCPA also features built-in short-circuit protection, safeguarding the device and the connected circuitry from potential damage due to overcurrent conditions.

The TC1044SCPA finds applications in a diverse range of electronic systems. It is commonly used in battery-powered devices to generate the negative voltage required for certain analog components. In instrumentation and measurement equipment, it provides a stable and regulated negative supply for precision amplifiers and data converters. The device is also employed in LED lighting applications to drive negative-referenced LEDs. Furthermore, the TC1044SCPA is suitable for use in RS-232 interface circuits, where a negative voltage is needed for proper signal transmission. Its compact size and ease of use make it a popular choice for both new designs and retrofitting existing systems.

When selecting the TC1044SCPA, consider the specific voltage and current requirements of your application. Ensure that the input voltage falls within the device's operating range and that the output current does not exceed its 20mA limit. Pay attention to the external capacitor selection, as the capacitor values influence the charge pump's performance and output ripple. Proper layout techniques, such as minimizing trace lengths and using decoupling capacitors, can further enhance the device's stability and reduce noise. By carefully considering these factors, you can maximize the performance and reliability of the TC1044SCPA in your application. Order yours today and experience the convenience and efficiency of this versatile charge pump inverter!
