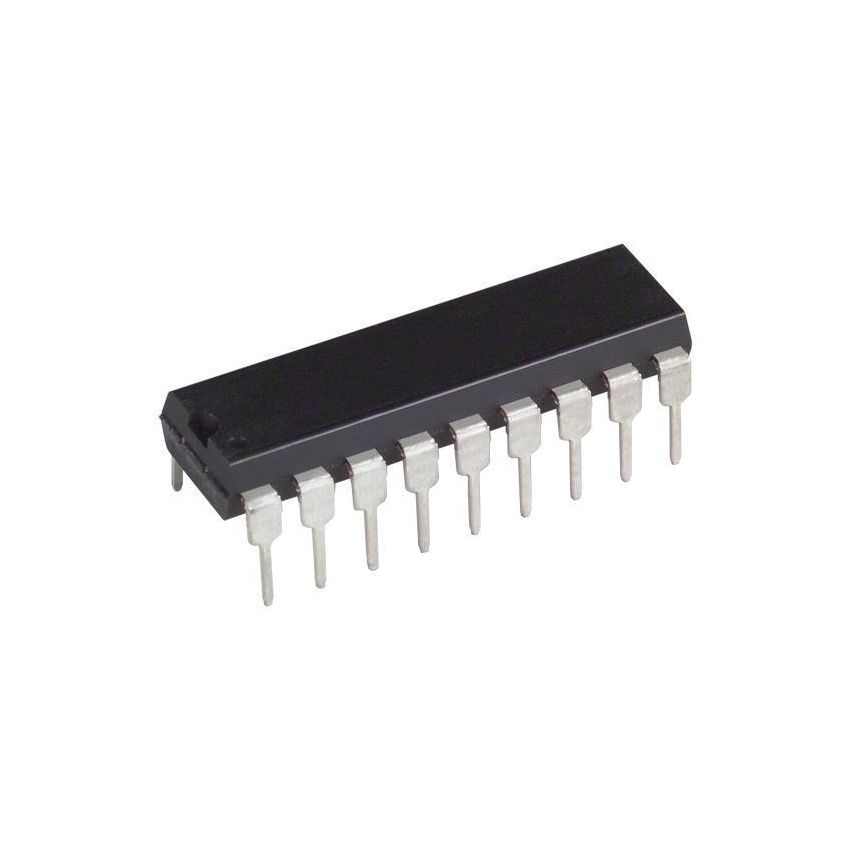

TDA2575AQ Video IF Amplifier Demodulator IC DIP-18

FAQs for Products

1. What are the primary functions of the TDA2575AQ Video IF Amplifier Demodulator IC DIP-18 in a television receiver, and how does it contribute to video quality?

   The TDA2575AQ Video IF Amplifier Demodulator IC DIP-18 serves as a crucial component in the signal processing chain of traditional television receivers. Its primary functions include amplifying the intermediate frequency (IF) signal received from the tuner, providing automatic gain control (AGC), and synchronously demodulating the amplified IF signal to extract the baseband composite video signal. The high gain and low noise characteristics of the TDA2575AQ ensure that even weak broadcast signals are sufficiently amplified without significant degradation, maintaining signal integrity. Furthermore, the synchronous demodulation technique employed by the TDA2575AQ Video IF Amplifier Demodulator IC DIP-18 is vital for accurate extraction of both luminance and chrominance information, minimizing distortion and intermodulation products. This precise signal recovery is fundamental to achieving high-quality video reproduction with accurate colors, sharp details, and stable picture imagery, directly impacting the viewer's experience by delivering a clean and reliable video output to subsequent processing stages.

2. How does the integrated Automatic Gain Control (AGC) feature of the TDA2575AQ Video IF Amplifier Demodulator IC DIP-18 enhance signal stability, and what are its typical adjustment characteristics?

   The integrated Automatic Gain Control (AGC) circuit within the TDA2575AQ Video IF Amplifier Demodulator IC DIP-18 is a critical feature designed to maintain a consistent output video level despite variations in the strength of the incoming broadcast signal. This stability is achieved by automatically adjusting the gain of the IF amplifier stage in response to changes detected in the demodulated video signal's amplitude. When a strong signal is received, the AGC reduces the amplifier's gain to prevent saturation and distortion; conversely, for weaker signals, it increases the gain to boost the signal to an optimal level. The typical adjustment characteristics of the TDA2575AQ's AGC system are optimized for television broadcast standards, providing a wide dynamic range of gain control to handle diverse signal conditions, from very weak to very strong. This continuous and automatic adjustment ensures a stable and consistent video output level from the TDA2575AQ Video IF Amplifier Demodulator IC DIP-18, preventing picture fading or over-amplification, which is essential for reliable and high-quality video reception.

3. Can you elaborate on the synchronous demodulation capabilities of the TDA2575AQ Video IF Amplifier Demodulator IC DIP-18 and its impact on color and luminance signal integrity?

   The TDA2575AQ Video IF Amplifier Demodulator IC DIP-18 utilizes synchronous demodulation, a superior technique compared to envelope detection, particularly for maintaining signal integrity in color television systems. Synchronous demodulation involves multiplying the incoming IF signal with a locally generated carrier that is precisely synchronized in phase and frequency with the original broadcast carrier. This method offers significant advantages by reducing distortion and minimizing cross-modulation between the luminance (Y) and chrominance (C) components of the video signal. For the TDA2575AQ, this precise demodulation ensures that the extracted composite video signal accurately reflects the original broadcast, leading to improved linearity and a wider bandwidth for both Y and C signals. The impact on color and luminance signal integrity is profound: colors appear more vibrant and accurate, free from hue shifts or desaturation, while luminance details remain sharp and well-defined without smearing or ringing artifacts. This critical capability of the TDA2575AQ Video IF Amplifier Demodulator IC DIP-18 contributes directly to the overall fidelity and visual quality of the displayed image.

4. What essential external components are typically required for optimal operation of the TDA2575AQ Video IF Amplifier Demodulator IC DIP-18, and what design considerations should be noted for its integration?

   For optimal operation of the TDA2575AQ Video IF Amplifier Demodulator IC DIP-18, several essential external components are typically required to form a complete video IF stage. These commonly include IF transformers for input matching and inter-stage filtering, tuned circuits (LC networks) to establish the precise IF frequency and bandwidth, and decoupling capacitors to ensure stable power supply operation and minimize noise. Resistors are used for biasing and gain setting, while specific capacitors define time constants for the AGC loop and detector circuits. When integrating the TDA2575AQ Video IF Amplifier Demodulator IC DIP-18, critical design considerations include proper PCB layout to minimize parasitic capacitances and inductive coupling, which can degrade high-frequency performance. Grounding techniques are paramount to prevent noise and ensure signal integrity. Careful selection of passive component values is necessary to match the desired IF frequency, bandwidth, and AGC characteristics according to the specific television standard (e.g., PAL, NTSC, SECAM). Furthermore, attention to power supply filtering is crucial to prevent ripple from affecting the sensitive amplifier and demodulator stages, ensuring the TDA2575AQ delivers its specified high-quality video output.

5. What is the typical IF frequency range the TDA2575AQ Video IF Amplifier Demodulator IC DIP-18 is designed to process, and is it compatible with common global TV broadcast standards?

   The TDA2575AQ Video IF Amplifier Demodulator IC DIP-18 is specifically designed to process video intermediate frequency (IF) signals, which are standardized frequencies used in television receivers after the tuner stage. While specific operating frequencies can vary slightly depending on external component tuning, the TDA2575AQ is typically optimized for IF frequencies around 38.9 MHz (or 38.0 MHz in some systems) for video and 33.4 MHz for sound carrier in systems like PAL B/G, and 45.75 MHz for video and 41.25 MHz for sound carrier in NTSC M systems. Its broad design allows for flexibility in tuning through external IF filters and resonant circuits, making the TDA2575AQ Video IF Amplifier Demodulator IC DIP-18 compatible with common global TV broadcast standards. This adaptability means it can be configured for use in receivers designed for PAL, NTSC, and SECAM systems, provided the appropriate external filtering and detection components are used to match the specific IF and sound carrier frequencies of the respective standard. This versatility made it a popular choice for TV manufacturers aiming for global market reach in its era.

6. What are common failure modes or performance issues associated with the TDA2575AQ Video IF Amplifier Demodulator IC DIP-18, and what diagnostic steps can be taken?

   Common failure modes for the TDA2575AQ Video IF Amplifier Demodulator IC DIP-18, like many vintage integrated circuits, often stem from age, thermal stress, or power supply irregularities. Typical symptoms of a failing TDA2575AQ include a loss of video signal (no picture, only snow), a very weak or distorted picture, poor color reproduction, or unstable automatic gain control (AGC) leading to picture fading or excessive brightness variations. Internal component degradation, such as semiconductor junction failures or bond wire issues, can also lead to complete IC failure. For diagnosis, initial steps involve checking the power supply voltage to the TDA2575AQ Video IF Amplifier Demodulator IC DIP-18 for stability and correct levels. Next, an oscilloscope can be used to trace the IF signal path: verifying the input IF signal from the tuner, checking for amplified IF at intermediate pins, and finally observing the demodulated video output. If the input is present but the output is absent or severely degraded, and external passive components (filters, capacitors) are confirmed good, it strongly suggests a failure of the TDA2575AQ itself, necessitating replacement.

7. Given its design era, is the TDA2575AQ Video IF Amplifier Demodulator IC DIP-18 still relevant for new designs, or is it primarily suited for repairs? Are there direct modern equivalents?

   Given that the TDA2575AQ Video IF Amplifier Demodulator IC DIP-18 was designed for analog television receivers, its relevance for new product designs in the era of digital broadcasting (DVB-T, ATSC, ISDB-T) is very limited. Modern television architectures typically employ highly integrated digital tuners and demodulators that directly process digital RF signals, rendering analog IF processing stages largely obsolete for new consumer electronics. Therefore, the TDA2575AQ Video IF Amplifier Demodulator IC DIP-18 is primarily suited for the repair and restoration of vintage analog television sets or other legacy video equipment that utilized this specific IC. For hobbyists, restorers, and repair technicians, these chips are invaluable for maintaining the functionality of classic hardware. Direct, pin-compatible modern equivalents are generally not available, as semiconductor technology and broadcast standards have evolved significantly. Any 'modern equivalent' would likely be a highly integrated digital solution, requiring substantial redesign of the surrounding circuitry rather than a simple drop-in replacement, underscoring the TDA2575AQ's niche role in historical electronics maintenance.
