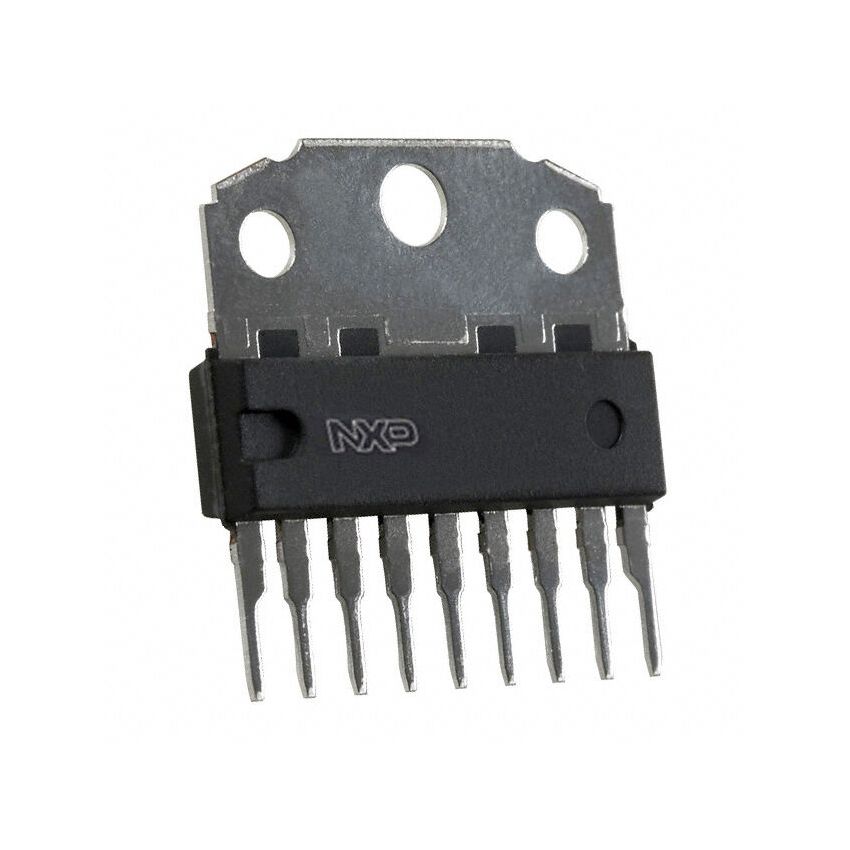

TDA7056B mono BTL output amplifier with DC volume control SIP

The TDA7056B is a monolithic integrated audio amplifier designed for mono (single channel) Bridge-Tied Load (BTL) output configurations. Housed in a SIP (Single In-Line Package), this amplifier IC is ideal for applications requiring a compact and efficient audio amplification solution. A key feature of the TDA7056B is its integrated DC volume control, allowing for simple and reliable volume adjustment without the need for external potentiometers. This makes it a cost-effective and space-saving choice for various audio applications.

This mono BTL output amplifier delivers a significant amount of power to a single speaker, making it suitable for applications where a loud and clear audio output is required. The BTL configuration effectively doubles the voltage swing across the speaker, resulting in four times the output power compared to a single-ended amplifier with the same supply voltage. The TDA7056B incorporates internal protection circuitry to prevent damage from overloads, short circuits, and thermal overloads, ensuring reliable operation even under demanding conditions. The DC volume control allows for smooth and linear volume adjustment, providing a user-friendly experience.

The TDA7056B is designed for ease of integration into audio systems. Its SIP package allows for straightforward insertion into circuit boards, minimizing assembly time and cost. The device requires minimal external components, further simplifying the design process. Its low power consumption makes it suitable for battery-powered applications or systems where energy efficiency is a concern. The TDA7056B is commonly used in portable radios, audio players, and other consumer electronics devices. It provides a cost-effective and reliable solution for amplifying audio signals and delivering a clear and loud sound output.

Beyond its core amplification functions, the TDA7056B contributes to the overall performance and reliability of audio systems. By delivering a high-power output with minimal distortion, it ensures a clear and enjoyable listening experience. The integrated DC volume control simplifies the design and reduces the component count, making it a cost-effective solution. The TDA7056B is a proven and trusted solution for audio amplification, offering a combination of performance, reliability, and ease of use. Its widespread adoption across various audio equipment manufacturers is a testament to its effectiveness in enhancing sound quality. Upgrade your audio system with the TDA7056B today. Order now and experience the difference in sound clarity and volume.
