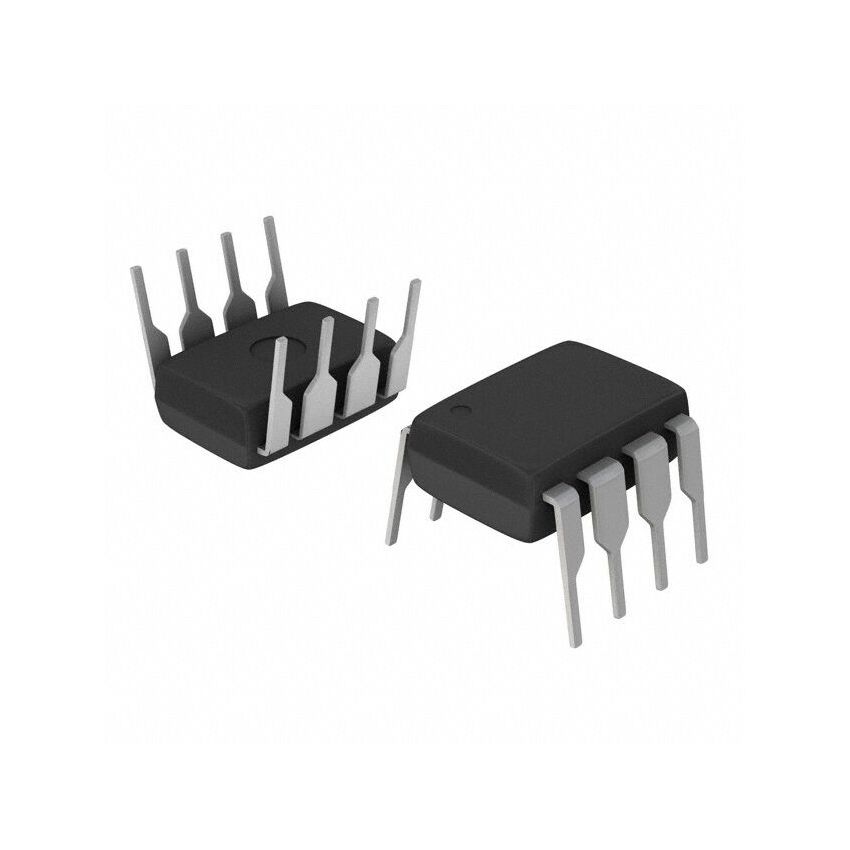

TDA7267 Dual Bridge Audio Amplifier IC

FAQs for Products

1. What is the maximum output power the TDA7267 Dual Bridge Audio Amplifier IC can deliver per channel, and under what load conditions?

   The TDA7267 Dual Bridge Audio Amplifier IC is specifically designed for efficient power delivery in low-voltage applications. While specific maximum power output figures can vary slightly based on supply voltage and thermal conditions, a typical configuration might yield approximately 2 Watts per channel into a 4-ohm load when operating from a 5V supply. For an 8-ohm load, the output power would generally be lower, around 1 Watt per channel. This performance is achieved through its dual bridge-tied load (BTL) configuration, which significantly enhances power output compared to single-ended designs for a given supply voltage. It's crucial for designers to consider the supply voltage, speaker impedance, and the thermal environment to optimize the output power and ensure stable, high-quality audio amplification from the TDA7267 Dual Bridge Audio Amplifier IC.

2. What is the recommended operating voltage range for the TDA7267 Dual Bridge Audio Amplifier IC, and how does it impact performance in low-voltage applications?

   The TDA7267 Dual Bridge Audio Amplifier IC is optimized for low-voltage operation, making it highly suitable for battery-powered and portable audio devices. Its typical operating voltage range extends from approximately 2.0V to 6V. This wide yet low voltage compatibility allows the TDA7267 Dual Bridge Audio Amplifier IC to be powered directly from common battery sources like two AA/AAA cells or a single lithium-ion cell. Operating within this range ensures optimal performance, including maintaining low distortion and stable output. For low-voltage applications, the BTL configuration is particularly advantageous as it maximizes output power from limited supply rails, making the TDA7267 Dual Bridge Audio Amplifier IC an incredibly efficient choice for compact audio systems without requiring voltage boosting circuitry.

3. Can the TDA7267 Dual Bridge Audio Amplifier IC drive different speaker impedances, and what are the typical considerations for 4-ohm versus 8-ohm loads?

   Yes, the TDA7267 Dual Bridge Audio Amplifier IC is capable of driving various speaker impedances, with common applications utilizing 4-ohm and 8-ohm loads. When driving a 4-ohm speaker, the amplifier will generally deliver higher output power but will also draw more current from the supply and generate more heat. This requires careful consideration of the power supply capacity and thermal management strategies. For an 8-ohm speaker, the output power will be lower, but the current draw will decrease, leading to less heat generation and potentially longer battery life in portable devices. Designers using the TDA7267 Dual Bridge Audio Amplifier IC should select the speaker impedance based on the desired output power, battery life requirements, and the thermal budget of their specific application, ensuring stable and reliable audio performance.

4. What are the primary advantages of using the dual bridge (BTL) configuration in the TDA7267 Dual Bridge Audio Amplifier IC compared to single-ended amplifiers for compact systems?

   The TDA7267 Dual Bridge Audio Amplifier IC leverages a dual bridge-tied load (BTL) configuration, offering significant advantages over traditional single-ended (SE) amplifiers, especially for compact and low-voltage systems. Firstly, BTL topology effectively doubles the voltage swing across the load compared to SE operation for a given supply voltage, resulting in four times the theoretical output power. This is crucial for achieving respectable volume levels from low supply rails, such as batteries. Secondly, BTL eliminates the need for large, costly DC blocking capacitors on the output, which are typically required in SE amplifiers to prevent DC current from flowing through the speaker, saving board space and reducing bill of materials for the TDA7267 Dual Bridge Audio Amplifier IC. Lastly, BTL provides inherent common-mode noise rejection, contributing to cleaner audio output, making the TDA7267 an excellent choice for high-quality, efficient audio amplification.

5. What external components are typically required to implement a functional audio amplifier circuit using the TDA7267 Dual Bridge Audio Amplifier IC?

   To implement a functional audio amplifier circuit using the TDA7267 Dual Bridge Audio Amplifier IC, a minimal set of external components is typically required, simplifying design and reducing board space. Essential components include input coupling capacitors (AC coupling) to block any DC component from the audio source, ensuring clean signal input to the TDA7267 Dual Bridge Audio Amplifier IC. Power supply decoupling capacitors, usually a combination of a larger electrolytic capacitor and a smaller ceramic capacitor, are critical for filtering noise on the power rails and providing stable voltage during peak current demands. Additionally, feedback resistors might be needed if adjustable gain is desired, though the TDA7267 often has a fixed gain configuration. Careful selection and placement of these components are vital for achieving optimal audio quality and stability with the TDA7267 Dual Bridge Audio Amplifier IC.

6. Are there any specific thermal management considerations for the TDA7267 Dual Bridge Audio Amplifier IC, especially when operating at its maximum power output?

   Yes, thermal management is an important consideration for the TDA7267 Dual Bridge Audio Amplifier IC, particularly when operating at or near its maximum output power, despite its efficiency. Housed in a compact DIP-8 package, the primary heat dissipation path for the TDA7267 Dual Bridge Audio Amplifier IC is through its pins and the copper traces on the printed circuit board (PCB). To ensure reliable and long-term operation, designers should implement adequate copper pours connected to the ground and power pins that can act as a heatsink. Avoiding enclosed, unventilated spaces or operating at high ambient temperatures when pushing maximum power is also advisable. Excessive heat can trigger the integrated thermal shutdown protection, leading to temporary audio cut-outs. Proper thermal design ensures the TDA7267 Dual Bridge Audio Amplifier IC maintains its high-quality audio performance without thermal throttling.

7. What kind of protection features are integrated into the TDA7267 Dual Bridge Audio Amplifier IC, and how do they enhance reliability in portable devices?

   The TDA7267 Dual Bridge Audio Amplifier IC incorporates robust protection features designed to enhance its reliability and lifespan, particularly crucial for portable and consumer audio devices where unforeseen conditions can occur. Key integrated protections typically include thermal shutdown, which automatically disables the amplifier if its internal temperature exceeds a safe operating limit, preventing permanent damage from overheating. Additionally, short-circuit protection safeguards the TDA7267 Dual Bridge Audio Amplifier IC against damage if the output pins are accidentally shorted to ground, the supply rail, or each other. These features collectively prevent catastrophic failures due to improper usage, faults, or environmental stressors, thereby significantly improving the durability and overall robustness of systems utilizing the TDA7267 Dual Bridge Audio Amplifier IC in various demanding applications.
