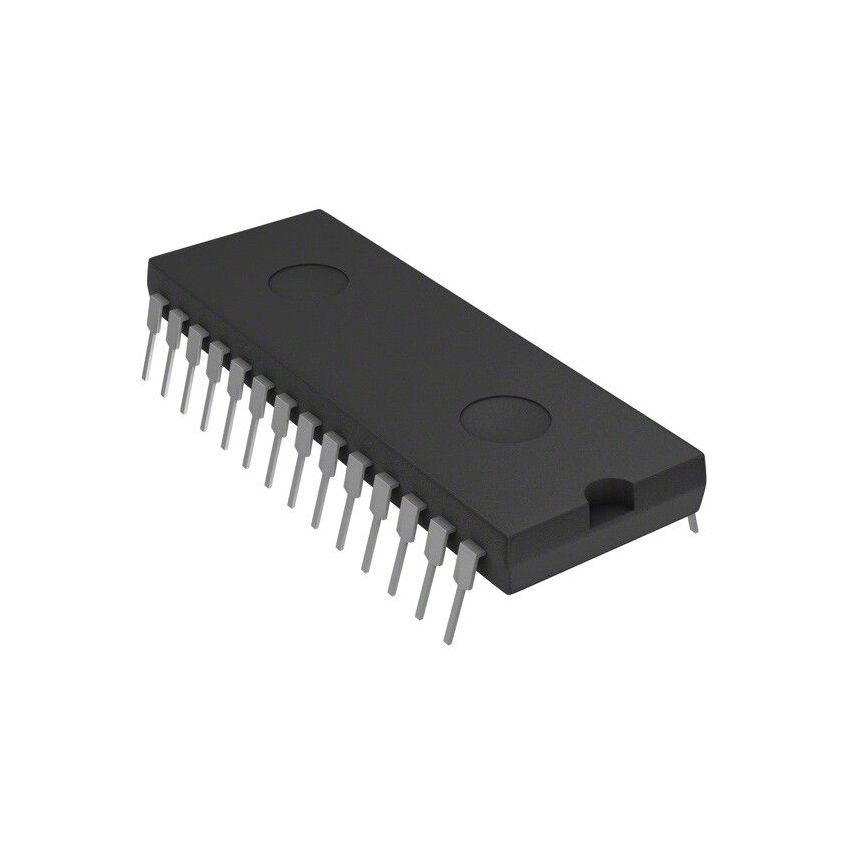

TDA7313 INTEGRATED CIRCUIT DIP-28

The TDA7313 is a high-performance integrated circuit designed for audio signal processing and control in a variety of applications. Encased in a DIP-28 (Dual In-Line Package) format, this IC offers a comprehensive set of features for managing audio input selection, volume control, tone control, and output mixing. It is an ideal solution for car audio systems, home entertainment devices, and other audio equipment requiring precise and flexible audio processing capabilities. At its core, the TDA7313 functions as a complete audio processor, integrating multiple functions into a single chip. It includes input multiplexing, allowing users to select from multiple audio sources, such as CD players, radio tuners, and auxiliary inputs. The selected audio signal is then processed through a sophisticated volume control circuit, which provides precise and smooth adjustment of the audio level.

The TDA7313 also features a comprehensive tone control section, allowing users to adjust the bass, treble, and mid-range frequencies to their preference. This enables customization of the audio output to suit different listening environments and personal tastes. The tone control section is designed to provide a wide range of adjustment, ensuring that the audio output can be optimized for any type of music or audio content. In addition to input selection, volume control, and tone control, the TDA7313 also includes an output mixing function. This allows users to combine multiple audio signals into a single output, which is useful for creating custom audio mixes or for integrating multiple audio sources into a single system. The output mixing function is designed to provide a clean and transparent audio signal, ensuring that the audio quality is not compromised.

The DIP-28 package of the TDA7313 makes it easy to integrate into existing circuits. Its standard pinout and compact size allow for easy installation and connection to other components. The IC is also designed to operate on a wide range of supply voltages, making it compatible with various power supply configurations. The TDA7313 is designed to provide high-quality audio performance with low distortion and noise. Its advanced circuit design and high-quality components ensure that the audio signal is processed accurately and cleanly, resulting in a clear and detailed audio output. The IC also includes built-in protection features, such as over-voltage protection and short-circuit protection, which protect the IC from damage in case of unexpected events.

Whether you are designing a car audio system, a home entertainment device, or any other audio equipment, the TDA7313 Integrated Circuit DIP-28 is an excellent choice for audio signal processing and control. Its comprehensive set of features, high-quality audio performance, and easy integration make it an ideal solution for a wide range of applications. Upgrade your audio systems with the TDA7313 today and experience enhanced audio quality and control. Don't miss out on this essential component for your audio projects. Order now and take your audio systems to the next level!
