TDA8562Q 4x 12W Car Radio Amp w/ Distortion Detector & Diagnostics

The TDA8562Q is a high-performance 4-channel car radio power amplifier designed to deliver exceptional audio quality and robust performance in automotive environments. Capable of outputting 4 x 12 Watts into a 4-ohm load, this integrated circuit is the heart of many high-quality car stereo systems. It is engineered with a Class B output stage, providing a perfect balance between power efficiency and sound fidelity. The TDA8562Q is specifically designed to handle the unique challenges of the automotive world, such as fluctuating battery voltages and high ambient temperatures. With its integrated design, it minimizes the number of external components required, allowing for more compact and cost-effective head unit designs. Whether you are an OEM manufacturer or a DIY car audio enthusiast, the TDA8562Q offers the power and clarity needed to transform any driving experience into a concert-like event.

One of the standout features of the TDA8562Q is its sophisticated distortion detector and diagnostic functions. This built-in intelligence allows the amplifier to monitor its own performance in real-time. If the output signal begins to clip or if a fault condition occurs, the diagnostic pin provides immediate feedback to the system's microcontroller. This feature is invaluable for protecting both the amplifier and the connected speakers from damage caused by overdriving. It also simplifies the troubleshooting process during manufacturing and servicing, as the IC can indicate specific fault states like short circuits to ground or the supply rail. By integrating these diagnostic capabilities, the TDA8562Q ensures a higher level of system reliability and user satisfaction, preventing common audio failures before they can cause permanent harm to your vehicle's audio equipment.

Safety and durability are paramount in the design of the TDA8562Q. The IC features comprehensive protection circuitry, including thermal overload protection and load dump protection. If the internal temperature rises above a safe threshold, the device will automatically reduce its power output or shut down to prevent catastrophic failure. It is also protected against AC and DC short circuits to ground and to the positive supply. Furthermore, the TDA8562Q is designed to be load dump protected, meaning it can withstand the high-voltage transients that occur when the battery is disconnected while the alternator is running. These robust protection features make it one of the most reliable car audio amplifiers on the market, ensuring that your sound system remains operational even under the most stressful electrical conditions found in modern vehicles.

The audio performance of the TDA8562Q is characterized by low noise and low total harmonic distortion. This ensures that the music played through the system is crisp, clear, and faithful to the original recording. The amplifier also features a mute and stand-by function, which eliminates pop noises during power-up and power-down cycles. This creates a more professional and pleasant user experience for the driver and passengers. The high supply voltage rejection ratio ensures that electrical noise from the car's engine or other electronics does not bleed into the audio signal, resulting in a silent background when no music is playing. With its four independent channels, the TDA8562Q can drive a full set of car speakers with ease, providing an immersive soundstage that fills the entire vehicle cabin with high-fidelity audio.

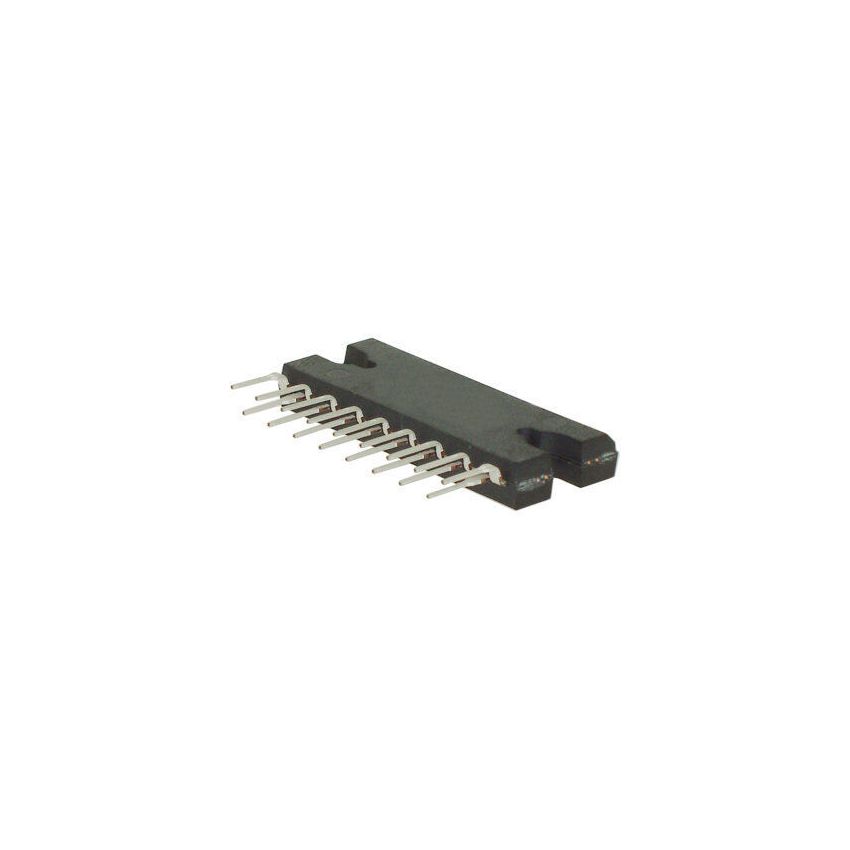

Housed in a 17-pin Single-In-Line power package, the TDA8562Q is designed for easy mounting to a heatsink. This package is optimized for efficient heat transfer, which is essential for maintaining performance during extended periods of high-volume playback. The SIL configuration also simplifies PCB layout, as all the high-power pins are arranged in a single row. This makes it easier to route heavy traces for power and speaker outputs, reducing electrical resistance and improving overall efficiency. The TDA8562Q design is optimized for 14.4V automotive systems but can operate reliably across a range of typical car battery voltages. Its combination of high power, integrated diagnostics, and robust protection makes it a favorite among automotive electronics designers who refuse to compromise on quality and long-term durability.

Experience the ultimate in automotive audio with the TDA8562Q 4-Channel Car Radio Power Amplifier. This IC provides the perfect blend of power, protection, and precision, making it the ideal choice for any car sound system upgrade or repair project. With its built-in distortion detection and comprehensive safety features, you can enjoy high-volume music with the peace of mind that your equipment is well-protected. Whether you are building a custom car stereo or replacing a faulty factory amp, the TDA8562Q delivers the professional-grade performance you expect. Don't settle for inferior sound—equip your vehicle with the power and clarity of the TDA8562Q. Order your amplifier IC today and start enjoying a superior listening experience on the road. Our high-quality components are ready to ship and help you achieve true audio excellence in your vehicle sound system.
