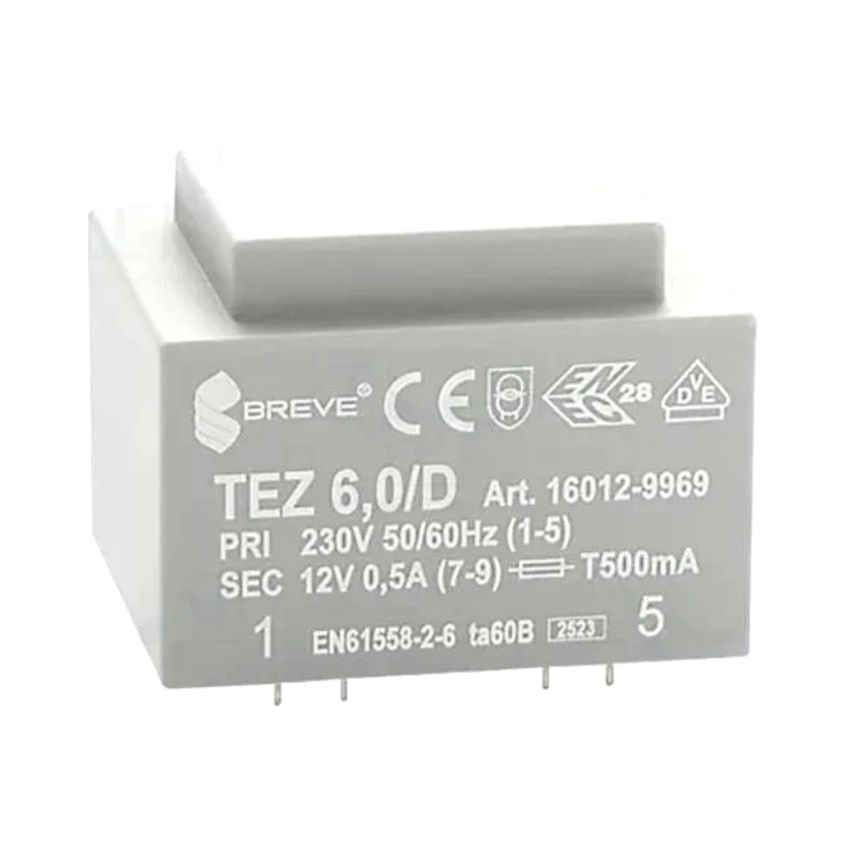

TEZ6/D/12V Transformer: encapsulated; 6VA; 230VAC; 12V; 500mA; PCB; IP00; TEZ

The TEZ6/D/12V is a high-quality encapsulated PCB transformer designed to provide reliable power conversion for a wide range of electronic applications. With a power rating of 6VA, this transformer is perfectly suited for small-to-medium scale electronic devices that require a stable 12V output from a standard 230VAC mains supply. The encapsulation process involves surrounding the transformer core and windings with a high-grade resin, which provides excellent protection against moisture, dust, and mechanical vibration. This makes the TEZ6/D/12V an ideal choice for industrial environments where equipment may be exposed to harsh conditions. Its compact design and PCB-mount pins allow for seamless integration into modern circuit board layouts, providing a clean and efficient power solution for designers and manufacturers alike.

Efficiency and performance are at the core of the TEZ6/D/12V's design. It features a primary voltage rating of 230V AC, which is the standard for most European and international power grids, and steps it down to a precise 12V AC output. With a secondary current capacity of 500mA, it can easily power control circuits, sensors, and small actuators. The transformer is built using high-quality magnetic materials that minimize core losses and heat generation, ensuring that your power supply operates at peak efficiency. This reduction in wasted energy not only lowers operational costs but also extends the lifespan of the transformer and the surrounding components on the PCB. For engineers who prioritize energy efficiency and thermal management, the TEZ6 series offers a dependable solution that meets the highest technical standards.

Safety is a paramount consideration in the construction of the TEZ6/D/12V transformer. The resin-filled encapsulation serves as a robust insulating barrier, significantly reducing the risk of electrical shorts and providing an IP00 protection rating. This design ensures that the transformer complies with stringent safety regulations regarding dielectric strength and insulation resistance. Furthermore, the TEZ transformer is designed to be short-circuit proof or to include thermal protection mechanisms, depending on the specific model variation, which prevents catastrophic failure in the event of an electrical fault. This makes it a safe choice for consumer electronics, medical devices, and household appliances where user safety is the top priority. By choosing an encapsulated transformer, you are investing in a product that has been engineered to provide long-term reliability and peace of mind.

The physical layout of the TEZ6/D/12V is optimized for modern manufacturing processes. The transformer features sturdy pins designed for direct soldering onto printed circuit boards, ensuring a secure mechanical and electrical connection. Its small footprint allows it to be used in space-constrained applications, such as DIN-rail mounted modules or compact wall-plug adapters. The encapsulation not only protects the internals but also gives the transformer a uniform shape that is easy for automated pick-and-place machines to handle. This ease of integration helps to streamline the production process, reducing assembly time and minimizing the potential for human error. Whether you are building a prototype or scaling up for mass production, the TEZ6/D/12V provides the physical and electrical consistency required for high-quality electronics manufacturing.

Versatility is another key advantage of the TEZ6/D/12V transformer, as it can be used in a diverse array of sectors. In the field of home automation, it is often used to power smart thermostats, security cameras, and lighting controllers. In industrial settings, it serves as a reliable power source for PLCs, signal conditioners, and monitoring equipment. The 12V output is a standard voltage for many electronic components, making this transformer a highly adaptable part for various circuit designs. Its ability to operate silently and without electromagnetic interference issues makes it suitable for sensitive audio and communication equipment as well. No matter the application, the TEZ6/D/12V delivers the consistent power needed to keep your electronics running smoothly and reliably day after day.

When it comes to selecting a transformer for your PCB, the TEZ6/D/12V stands out as a top-tier choice that combines safety, efficiency, and durability. Its encapsulated design ensures that it can withstand the test of time, even in the most demanding environments, while its precise electrical characteristics provide the stable power your components need to function correctly. We are proud to offer these high-performance transformers to help you achieve the best possible results in your electronic designs. Don't compromise on the heart of your power supply; choose the proven quality of the TEZ series. Order your TEZ6/D/12V transformers today to take advantage of our competitive pricing and ensure your projects are powered by the best in the industry. Our fast shipping and dedicated support team are here to help you every step of the way.
