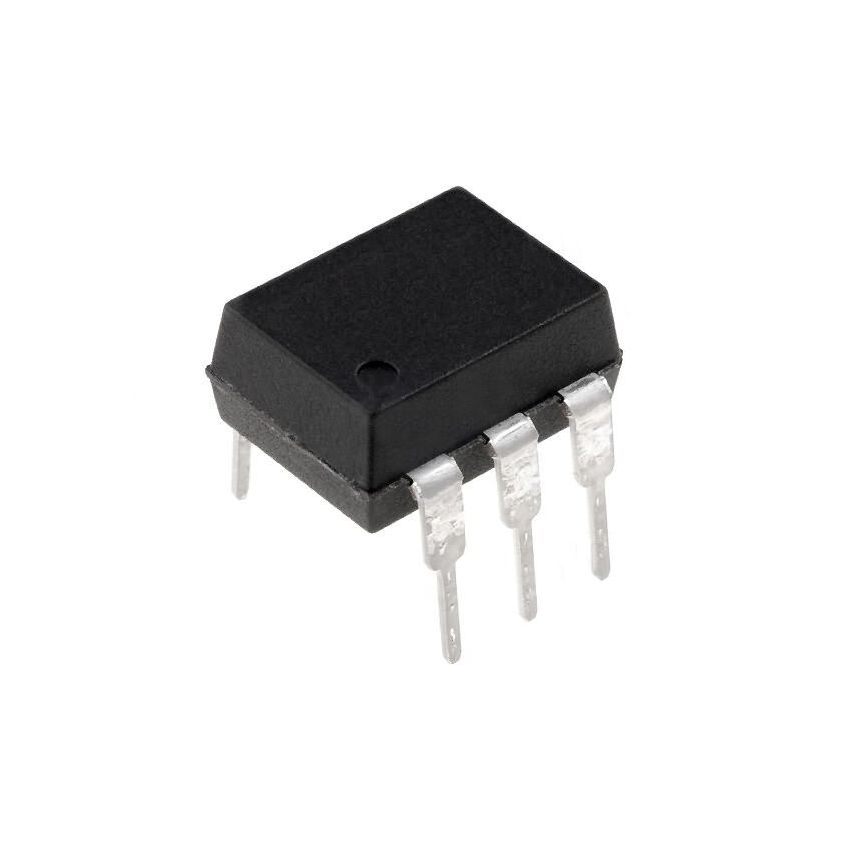

TIL112 OPTO INTEGRATED CIRCUIT DIP-6

The TIL112 is an optocoupler, also known as an optoisolator, housed in a 6-pin Dual In-line Package (DIP-6). This integrated circuit provides electrical isolation between two circuits using an optical signal. It consists of an infrared light-emitting diode (LED) and a phototransistor, allowing a signal to be transmitted without a direct electrical connection. This isolation is crucial in applications where ground loops, voltage differences, or noise can cause interference or damage. The TIL112 is designed to provide a high degree of electrical isolation, typically several kilovolts, making it suitable for isolating sensitive control circuits from high-voltage power circuits. The input side of the optocoupler consists of an infrared LED.

When current flows through the LED, it emits infrared light. This light is detected by the phototransistor on the output side, causing it to conduct. The amount of current that flows through the phototransistor is proportional to the amount of light emitted by the LED. The DIP-6 package is a through-hole package that is easy to handle and solder, making it ideal for prototyping and hobbyist projects. Its standardized pinout simplifies circuit design and allows for easy integration into existing systems. Key features of the TIL112 include its high isolation voltage, high current transfer ratio (CTR), and wide operating temperature range.

The high isolation voltage ensures that the input and output circuits are electrically isolated, protecting sensitive circuits from high-voltage transients. The high CTR indicates the efficiency of the optocoupler in transferring current from the input to the output. The wide operating temperature range allows the optocoupler to operate reliably in a variety of environments. From a design perspective, the TIL112 simplifies circuit design by providing a readily available and easy-to-use optocoupler function. This eliminates the need for complex isolation circuitry and reduces the overall complexity of the circuit. Its standardized DIP-6 package and pinout further simplify integration into existing systems.

Applications for the TIL112 are diverse and span across various industries. In power electronics, it is used to isolate control circuits from high-voltage power circuits. In industrial control systems, it is used to isolate sensors and actuators from the control logic. In medical equipment, it is used to isolate patient-connected circuits from the power supply. The TIL112 is also suitable for communication systems, where it can be used to isolate data transmission lines from noise and interference. In summary, the TIL112 optocoupler is a versatile and reliable component that provides electrical isolation between two circuits.

Its high isolation voltage, high CTR, and wide operating temperature range make it an ideal choice for a wide range of applications. Whether you're designing a power supply, an industrial control system, or medical equipment, the TIL112 can help you achieve your design goals. Protect your circuits and ensure reliable operation with the TIL112 optocoupler. Order now and experience the benefits of robust electrical isolation in your designs.
