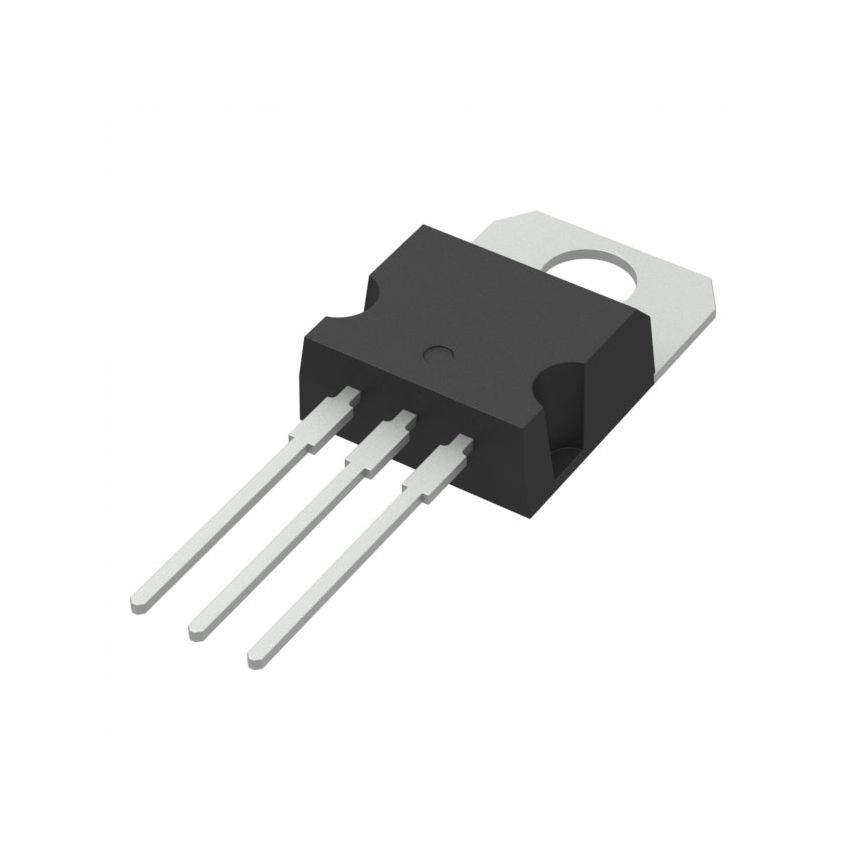

TIP146T TRANSISTOR TO-220

The TIP146 is a high-power PNP Darlington transistor designed for applications that require significant current gain and robust power handling capabilities. By utilizing a Darlington pair configuration—where two transistors are integrated into a single package—the TIP146 achieves an exceptionally high current gain, often exceeding 1000. This unique architecture allows a very small base current to control a much larger collector current, making it the perfect interface for low-power microprocessors and logic circuits that need to drive heavy loads. Housed in the industry-standard TO-220 package, the TIP146 is built for durability and ease of mounting, providing a reliable solution for power amplification and switching in both industrial and consumer electronics. Its ability to manage high voltages and currents makes it a cornerstone for engineers working on demanding power electronics projects.

Technical specifications for the TIP146 are impressive, featuring a collector-emitter voltage rating of -80V and a continuous collector current capacity of up to 10 Amperes. This makes it suitable for high-voltage DC power supplies and heavy-duty motor control systems. The Darlington configuration not only boosts the gain but also simplifies the drive circuitry, as it eliminates the need for multiple stages of amplification. With a total power dissipation rating of 125 Watts (when properly heat-sunk), the TIP146 can handle substantial thermal loads without compromising performance. The built-in base-emitter shunt resistors and an integrated anti-parallel diode provide additional protection against inductive kickback, which is a common issue when driving solenoids, relays, and motors. These integrated features reduce the component count on your PCB, leading to more compact and cost-effective circuit designs.

Thermal management is a critical consideration when working with power transistors like the TIP146, and the TO-220 package is specifically designed to address this. The package includes a metal tab with a pre-drilled hole, allowing it to be easily bolted to an external aluminum heat sink. This direct physical connection ensures that heat is efficiently transferred away from the semiconductor junction, preventing thermal runaway and extending the life of the component. For high-power applications, using a thermal paste or an insulating pad between the transistor and the heat sink is recommended to maximize thermal conductivity. The TO-220's through-hole design provides a secure mechanical connection to the PCB, making it resistant to vibration and mechanical stress, which is particularly important in automotive and industrial environments where equipment is subject to constant movement.

The applications for the TIP146 Darlington transistor are vast, ranging from audio power amplifiers to automated industrial machinery. In the realm of audio engineering, it is often used in the output stages of high-fidelity amplifiers to provide the current necessary to drive low-impedance speakers with minimal distortion. In industrial settings, it serves as a powerful switch for controlling large DC motors, actuators, and heating elements. Its high gain and high current capacity also make it ideal for use in uninterruptible power supplies (UPS) and battery charging systems where efficient power conversion is required. Furthermore, the TIP146 is frequently employed in voltage regulator circuits where it acts as a pass element to maintain a stable output voltage under varying load conditions, showcasing its versatility across different electronic disciplines.

Choosing the TIP146 means opting for a component that has been proven in the field for years. Its robust construction and reliable electrical characteristics make it a favorite among maintenance professionals and design engineers who need a transistor that can withstand the rigors of continuous operation. Every TIP146 we supply is manufactured to meet strict tolerance levels, ensuring that your circuits behave predictably and reliably. When you integrate this Darlington transistor into your design, you are benefiting from a device that minimizes complexity while maximizing power output. Its long-standing reputation for quality ensures that your finished product will meet the high standards of performance and reliability expected in today's market. Whether you are performing a repair or starting a new build, the TIP146 is a dependable choice for high-power PNP switching.

Enhance the power and efficiency of your electronic systems by integrating the TIP146 Darlington PNP Transistor into your next project. This component offers the perfect combination of high gain, high current capacity, and superior thermal management, making it an essential tool for any serious electronics developer. Our inventory is carefully managed to provide you with authentic, high-performance transistors that deliver consistent results every time. Don't settle for less when it comes to power electronics; choose the TIP146 for its unmatched reliability and ease of use. Order now to take advantage of our bulk pricing and fast shipping, ensuring your project stays on schedule and under budget. Click the add to cart button today and empower your designs with the high-performance switching capabilities of the TIP146 Darlington transistor.
