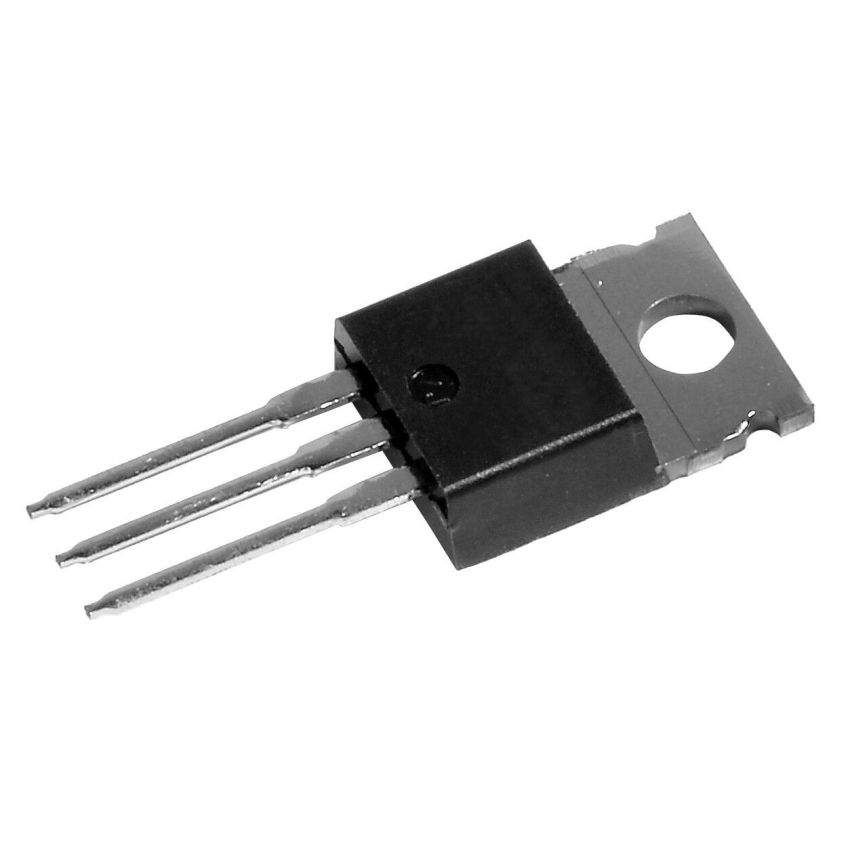

TIP31C NPN Power Transistor TO-220

FAQs for Products

1. What are the recommended thermal management practices for the TIP31C NPN Power Transistor TO-220 when operating at its maximum power dissipation?

   When utilizing the TIP31C NPN Power Transistor TO-220 at or near its maximum power dissipation, effective thermal management is crucial to prevent overheating and ensure long-term reliability. The TO-220 package is designed for heat dissipation, but it requires an external heatsink for significant power levels. Key practices include mounting the TIP31C NPN Power Transistor TO-220 onto an appropriately sized heatsink, often with thermal compound or a thermal pad to minimize thermal resistance between the transistor case and the heatsink. Calculating the required heatsink thermal resistance (Rth_sa) based on the maximum junction temperature, ambient temperature, and power dissipation is essential. Additionally, ensuring adequate airflow around the heatsink, and considering forced air cooling for very high power applications, will optimize performance and prevent thermal runaway, making the TIP31C NPN Power Transistor TO-220 a robust component for demanding circuits.

2. What is the maximum continuous collector current the TIP31C NPN Power Transistor TO-220 can handle, and how does this affect its use in switching applications?

   The TIP31C NPN Power Transistor TO-220 is rated for a maximum continuous collector current (Ic) of 3 Amperes. This high current capability makes it highly suitable for various switching applications, such as driving relays, solenoids, or controlling motors. In switching circuits, the TIP31C NPN Power Transistor TO-220 can effectively turn loads on and off with minimal voltage drop when saturated, ensuring efficient power transfer. However, it's critical to consider the power dissipation (P_D = Vce_sat * Ic) during the ON state, especially when switching inductive loads. While the 3A rating is robust, exceeding this can lead to device degradation or failure. Proper base current drive is also essential to ensure the TIP31C NPN Power Transistor TO-220 fully saturates, minimizing power loss and optimizing its performance in high-current switching scenarios.

3. What are the key voltage ratings (Vce, Vcb, Veo) for the TIP31C NPN Power Transistor TO-220, and how should they be considered in circuit design?

   The critical voltage ratings for the TIP31C NPN Power Transistor TO-220 are fundamental for reliable circuit design. The collector-emitter voltage (Vce) with the base open (VCEO) is typically 100V, indicating the maximum voltage the transistor can withstand across its collector and emitter when not conducting base current. The collector-base voltage (VCBO) is also 100V, representing the maximum reverse voltage between collector and base. Lastly, the emitter-base voltage (VEBO) is typically 5V, which is the maximum reverse voltage that can be applied to the emitter-base junction without damage. In circuit design, it is imperative to keep all operating voltages well below these absolute maximum ratings, typically with a safety margin of 20-30%, to prevent breakdown and ensure the longevity of the TIP31C NPN Power Transistor TO-220. Exceeding these limits can cause permanent damage, making careful voltage selection paramount for robust applications like power amplification or voltage regulation.

4. What is the typical DC current gain (hFE) range for the TIP31C NPN Power Transistor TO-220, and how does it vary with collector current and temperature?

   The DC current gain (hFE) for the TIP31C NPN Power Transistor TO-220 typically ranges from 10 to 50 at a collector current (Ic) of 3A. This gain is not constant; it significantly varies with both collector current and temperature. Generally, hFE tends to be lower at very low and very high collector currents, peaking somewhere in the mid-range. For the TIP31C NPN Power Transistor TO-220, as the collector current increases towards its maximum, the hFE tends to decrease. Temperature also plays a role: hFE typically increases with rising junction temperature, which can affect biasing and stability in amplifier circuits. Designers must account for these variations by using appropriate biasing techniques, such as emitter degeneration or feedback, to ensure stable operation across the expected current and temperature ranges, especially in power amplification and switching applications utilizing the TIP31C NPN Power Transistor TO-220.

5. How does the TIP31C NPN Power Transistor TO-220 perform in audio power amplification stages, particularly concerning linearity and frequency response?

   The TIP31C NPN Power Transistor TO-220 is a robust choice for audio power amplification stages, particularly in Class B or Class AB push-pull configurations, due to its high current capability and power handling. While it can provide significant output power, its linearity for high-fidelity audio might require careful design. Being a general-purpose power transistor, its inherent linearity is moderate compared to specialized audio transistors, potentially introducing harmonic distortion if not properly biased or compensated. Frequency response for the TIP31C NPN Power Transistor TO-220 is generally adequate for the audio range (20 Hz to 20 kHz), but its transition frequency (fT) is typically in the low MHz range, meaning its gain bandwidth product is sufficient for audio but not for high-frequency RF applications. To achieve optimal audio performance, designers often employ feedback mechanisms and appropriate biasing to enhance linearity and minimize distortion across the audio spectrum, leveraging the TIP31C NPN Power Transistor TO-220's power capabilities effectively.

6. Can the TIP31C NPN Power Transistor TO-220 be effectively used as a linear regulator pass element or in pulse-width modulation (PWM) motor control applications, and what considerations are critical?

   Yes, the TIP31C NPN Power Transistor TO-220 is well-suited for both linear regulator pass element and PWM motor control applications, thanks to its high current and voltage ratings. As a linear regulator pass element, it can handle significant current to regulate output voltage, but the primary consideration is power dissipation (P_D = (Vin - Vout) * Iload). A substantial voltage drop across the TIP31C NPN Power Transistor TO-220 at high currents will generate considerable heat, necessitating robust thermal management. For PWM motor control, the TIP31C NPN Power Transistor TO-220 acts as a switch, minimizing power loss by operating in saturation or cutoff. Critical considerations here include ensuring adequate base drive to achieve full saturation for low Vce(sat), handling inductive kickback from the motor with appropriate flyback diodes, and managing switching losses, which increase with higher PWM frequencies. Its TO-220 package is advantageous for heatsinking in both these power-intensive applications, making the TIP31C NPN Power Transistor TO-220 a versatile component.

7. What are the typical saturation voltage (Vce(sat)) and switching times (rise/fall) for the TIP31C NPN Power Transistor TO-220, and why are these important for efficient switching designs?

   For the TIP31C NPN Power Transistor TO-220, the typical collector-emitter saturation voltage (Vce(sat)) is around 1.2V at a collector current (Ic) of 3A and a base current (Ib) of 375mA. This low saturation voltage is critical for efficient switching designs because it directly impacts the power dissipated by the transistor when it's in the 'ON' state (P_D_on = Vce(sat) * Ic). A lower Vce(sat) means less heat generation and higher efficiency. Regarding switching times, the TIP31C NPN Power Transistor TO-220 generally exhibits typical rise and fall times in the order of hundreds of nanoseconds. While these times are suitable for many moderate-frequency switching applications like power supplies or motor control, they are slower than those of dedicated MOSFETs or high-speed BJTs. For applications requiring very fast switching, these times contribute to switching losses during transitions. Therefore, understanding Vce(sat) and switching times is crucial for optimizing power efficiency and thermal management in any switching circuit utilizing the TIP31C NPN Power Transistor TO-220.
