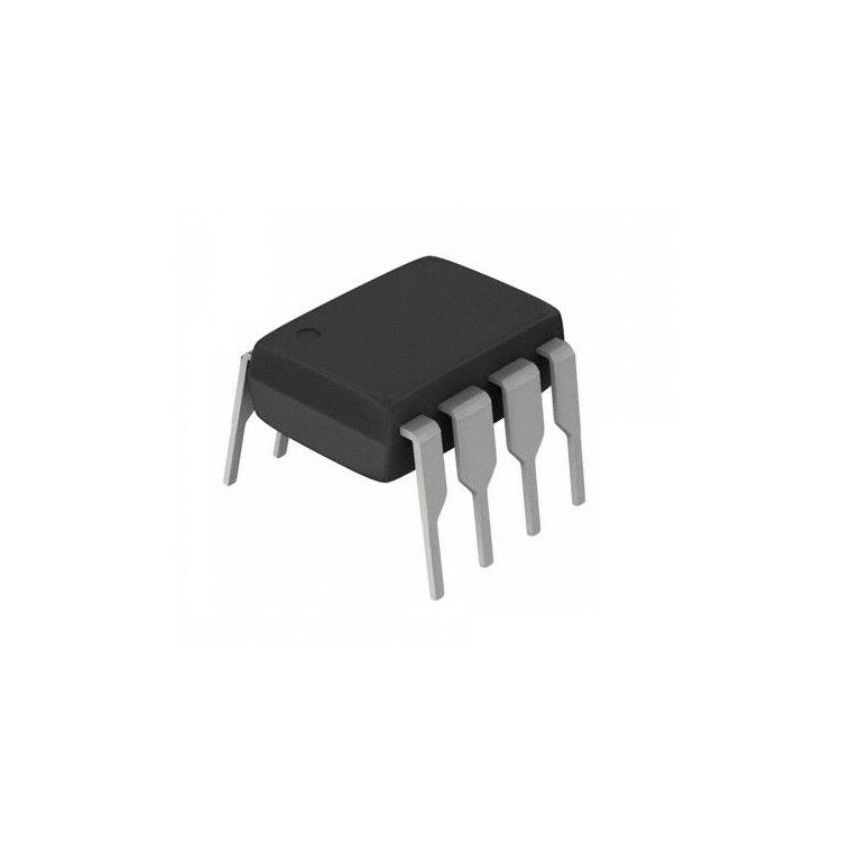

TL322CP INTEGRATED CIRCUIT DIP-8

The TL322CP integrated circuit, housed in a DIP-8 (Dual In-Line Package) package, is a versatile and widely used operational amplifier (op-amp) known for its reliable performance and ease of integration. This IC is a popular choice among electronics enthusiasts, students, and professionals alike due to its robust design and suitability for a broad spectrum of applications. The DIP-8 package allows for easy insertion into breadboards and PCBs, simplifying prototyping and circuit construction. The TL322CP offers a cost-effective solution for signal amplification, filtering, and other analog signal processing tasks. Its widespread availability and well-documented characteristics make it a valuable addition to any electronics toolkit.

The TL322CP is a dual operational amplifier, meaning it contains two independent op-amps within a single package. This feature allows for greater circuit density and reduced component count, making it ideal for applications where space is limited. Each op-amp in the TL322CP offers high gain, low input bias current, and low input offset voltage, ensuring accurate and reliable signal amplification. The device operates from a wide range of supply voltages, typically from ±3V to ±16V, providing flexibility in circuit design. Its internal frequency compensation ensures stable operation without the need for external components. The TL322CP's dual op-amp configuration and robust electrical characteristics make it a versatile component for various applications.

Key specifications of the TL322CP include a typical open-loop voltage gain of 100 dB, a common-mode rejection ratio (CMRR) of 80 dB, and a slew rate of 0.5 V/µs. These parameters define the op-amp's performance characteristics and should be considered when designing circuits. The high open-loop gain allows for precise signal amplification, while the high CMRR ensures that common-mode noise is effectively rejected. The slew rate determines the op-amp's ability to respond to rapidly changing input signals. The TL322CP's low input bias current and input offset voltage minimize errors in signal processing. Its electrical specifications make it a reliable choice for demanding applications.

The TL322CP finds applications in a wide range of electronic circuits. It is commonly used in audio amplifiers, where it boosts the amplitude of weak audio signals. In active filters, it shapes the frequency response of signals, allowing for the selective amplification or attenuation of specific frequencies. It is also used in instrumentation amplifiers, where it amplifies small differential signals from sensors. The TL322CP's versatility extends to voltage followers, where it provides a high-impedance input and a low-impedance output. Its applications also include comparators, where it compares two voltages and outputs a digital signal. The TL322CP's wide range of applications makes it an indispensable component in electronics.

In conclusion, the TL322CP integrated circuit in the DIP-8 package is an excellent choice for anyone seeking a reliable and versatile dual operational amplifier. Its ease of use, robust performance, and wide range of applications make it suitable for various electronic projects. Whether you're building audio amplifiers, active filters, or instrumentation amplifiers, the TL322CP provides the performance and reliability you need. Don't miss out on this essential component for your electronic designs. Order your TL322CP today and experience the difference! Click here to purchase now and elevate your electronic designs!
