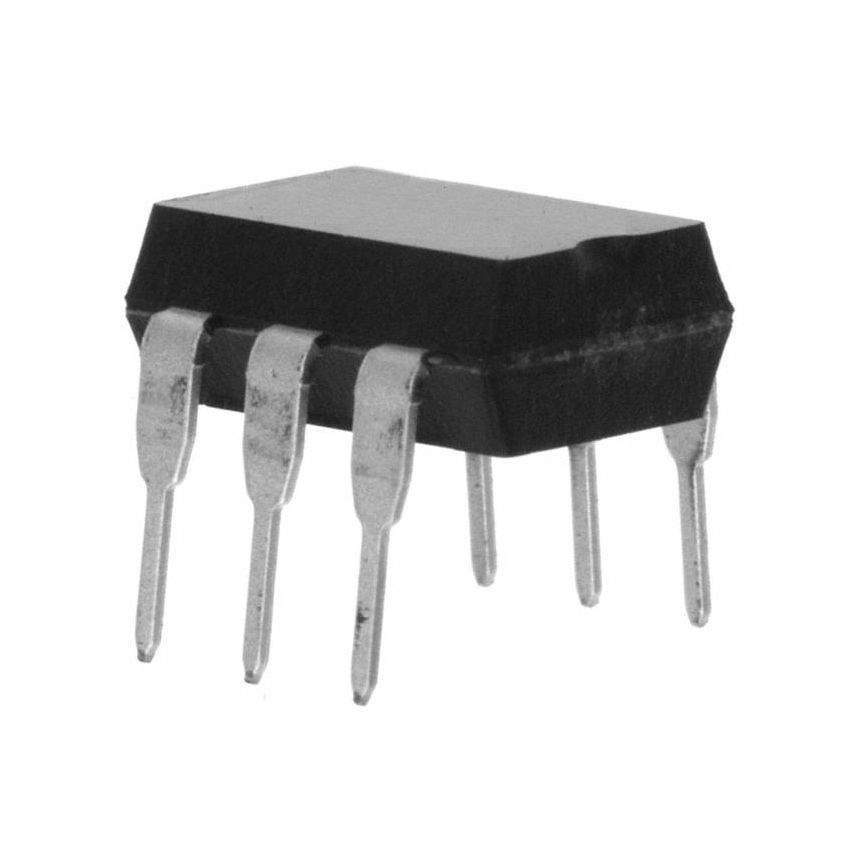

TLP3063 OPTO INTEGRATED CIRCUIT DIP-6

The TLP3063 is an opto-isolated integrated circuit housed in a DIP-6 package, designed for applications requiring robust electrical isolation and triac driving capabilities. This device integrates an infrared emitting diode (IRED) and a phototriac driver, providing a reliable and efficient means of controlling AC loads while maintaining a high level of electrical isolation between the control circuit and the load. Its compact DIP-6 form factor makes it easy to integrate into existing circuit designs, offering a cost-effective solution for isolating sensitive components from high-voltage AC circuits. The TLP3063 is an ideal choice for applications where safety and precise AC load control are paramount.

Key features of the TLP3063 include a high isolation voltage, typically up to 5000 Vrms, ensuring robust protection against voltage transients and surges. The device also boasts a high repetitive peak off-state voltage, allowing it to handle high AC voltages without false triggering. Its low trigger current ensures efficient operation and compatibility with various logic families. The TLP3063 is designed to operate over a wide temperature range, ensuring reliable performance in harsh industrial environments. Its zero-crossing detection circuitry minimizes electromagnetic interference (EMI) and reduces stress on the AC load.

The TLP3063 opto-isolated integrated circuit finds applications in various industrial control systems, lighting control systems, and home appliances. It is commonly used to control AC loads such as lamps, motors, and solenoids from a low-voltage DC control signal. In lighting control systems, it provides smooth and flicker-free dimming of incandescent and LED lamps. The TLP3063 is also employed in motor control circuits to isolate the control logic from the high-power AC drive circuitry. Its robust design and reliable performance make it a preferred choice for demanding applications.

This opto-isolated IC is particularly well-suited for isolating and controlling AC power switches in solid-state relays (SSRs). Its high isolation voltage ensures that the control circuit remains protected from high-voltage transients and surges. The TLP3063 is also used in programmable logic controllers (PLCs) to isolate output modules, enhancing system reliability and safety. Its compact size and ease of integration make it a valuable component in a wide range of industrial automation applications. Consider the TLP3063 for your next design requiring robust electrical isolation and precise AC load control.

In summary, the TLP3063 opto-isolated integrated circuit in a DIP-6 package offers a robust and reliable solution for electrical isolation and AC load control in a variety of applications. Its high isolation voltage, high repetitive peak off-state voltage, and zero-crossing detection circuitry make it an excellent choice for industrial control systems, lighting control systems, and home appliances. Don't compromise on safety and control – choose the TLP3063 for your next project. Order yours today and experience the peace of mind that comes with using a high-quality opto-isolated IC.
