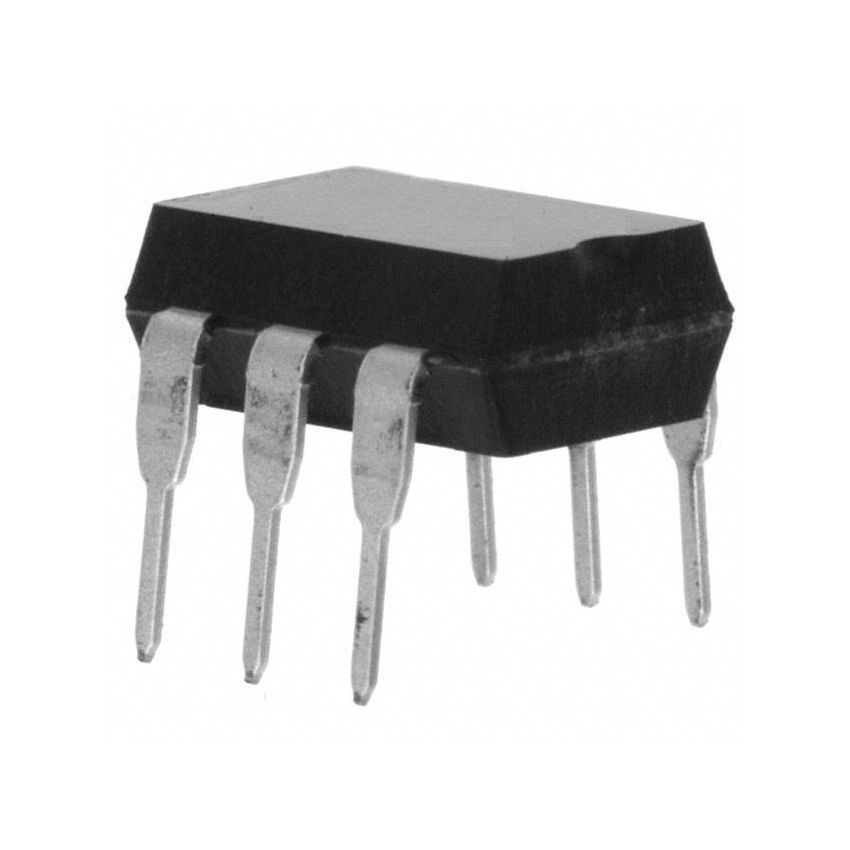

TLP598AA OPTO INTEGRATED CIRCUIT DIP-6

The TLP598AA is a high-isolation solid-state relay (SSR) housed in a 6-pin DIP (Dual In-Line Package). This optocoupler-based device provides electrical isolation between the control circuit and the load circuit, making it ideal for applications where safety and noise immunity are critical. Its compact size, low power consumption, and high switching speed make it a versatile and reliable component for various industrial, commercial, and consumer electronics applications. The TLP598AA consists of an infrared LED and a phototransistor, providing optical isolation of up to 5000 Vrms. When the LED is energized, the phototransistor conducts, allowing current to flow through the load circuit. The SSR is designed for switching AC or DC loads, offering a solid-state alternative to electromechanical relays.

The DIP-6 package allows for easy mounting on printed circuit boards (PCBs) and breadboards, making it convenient for prototyping and small-scale production. Its standard pinout simplifies integration into existing circuits, requiring minimal external components. The TLP598AA is commonly used in applications such as industrial control systems, motor control circuits, and lighting control systems. It provides a reliable and safe way to switch high-voltage or high-current loads with a low-voltage control signal. Whether you're designing a custom control system, building a motor controller, or developing a lighting control system, the TLP598AA offers the performance and features you need. Its high isolation voltage, low power consumption, and high switching speed make it an excellent choice for a wide range of applications.

Consider the TLP598AA for applications requiring electrical isolation, such as industrial control systems, medical equipment, and power supplies. Its high isolation voltage protects sensitive circuits from high-voltage transients and noise. The TLP598AA is also a popular choice for DIY electronics enthusiasts, allowing them to build safe and reliable control circuits. Its ease of use and readily available documentation make it an ideal component for electronics projects. With its proven track record and wide availability, the TLP598AA OPTO INTEGRATED CIRCUIT in the DIP-6 package remains a trusted and reliable component for solid-state relay applications. Its high isolation voltage, low power consumption, and high switching speed make it an excellent choice for a wide range of electronic projects.

Enhance your control circuits with this versatile and reliable solid-state relay. Order now and take advantage of its exceptional performance and safety features.
