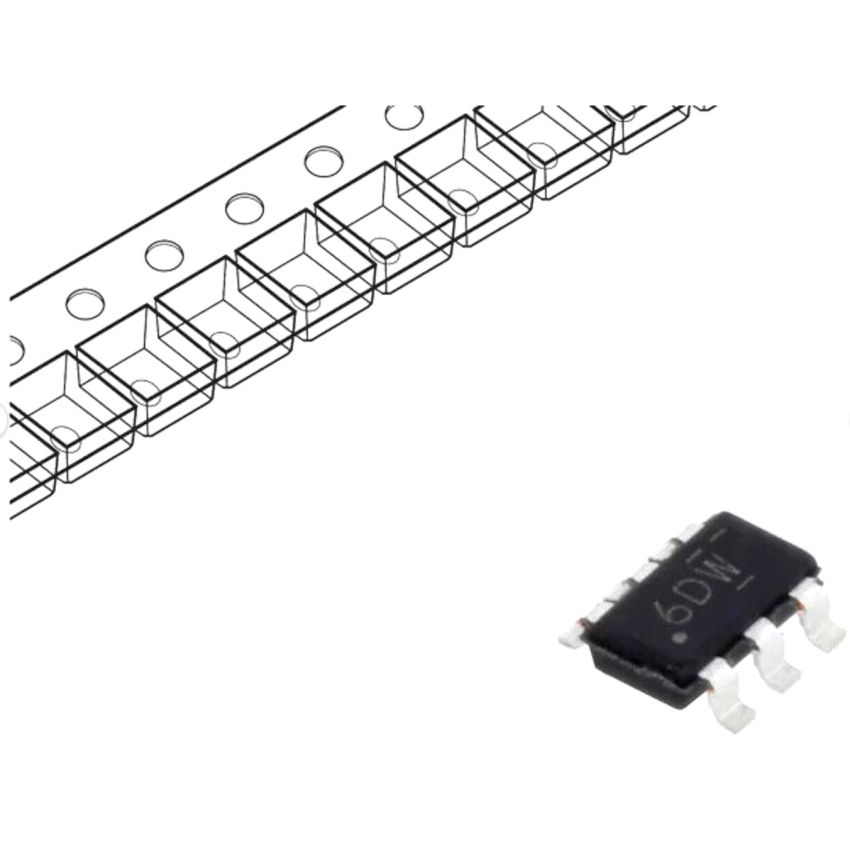

TLV62569PDDCR PMIC; DC/DC converter; 2.5÷5.5V; 0.6÷5.5VDC; 2A; TSOT23-6 (X2)

The TLV62569PDDCR is a compact and efficient Power Management Integrated Circuit (PMIC) featuring a step-down DC/DC converter, designed to provide stable and regulated power in space-constrained applications. Encased in a tiny 6-pin TSOT23 package (X2), this PMIC accepts an input voltage ranging from 2.5V to 5.5V and delivers an adjustable output voltage from 0.6VDC to 5.5VDC, with a maximum output current of 2A. The TLV62569PDDCR is ideal for portable devices, wearables, and other applications requiring efficient power conversion and precise voltage regulation in a small form factor. Its miniature size and high performance make it a versatile solution for modern electronic designs.

Key features of the TLV62569PDDCR include its high efficiency, which minimizes power loss and extends battery life. The adjustable output voltage allows for flexible configuration to meet the specific needs of different applications. The 2A output current capability provides sufficient power for a variety of loads. The TSOT23 package offers an ultra-small footprint, making it ideal for space-constrained designs. The device also features built-in protection mechanisms, such as over-current protection and short-circuit protection, enhancing its robustness and reliability. This PMIC is a cornerstone for efficient power management in portable devices.

The TLV62569PDDCR finds applications in a wide range of portable electronic devices, including smartwatches, fitness trackers, wireless earbuds, and IoT devices. In wearables, it can be used to power microcontrollers, sensors, and communication modules. In IoT devices, it can be used to provide stable power to microprocessors, memory chips, and wireless transceivers. Its high efficiency and compact size make it an ideal choice for battery-powered applications where space and power are at a premium. The device's robust design ensures reliable performance in diverse operating conditions.

From a technical perspective, the TLV62569PDDCR boasts impressive specifications. It operates with a high switching frequency, allowing for the use of smaller external components. The integrated synchronous rectifier improves efficiency and reduces power dissipation. The device also features a power-good output, which indicates when the output voltage is within the specified range. The TLV62569PDDCR is designed for easy integration into complex power management systems, providing a reliable and high-performance power conversion solution.

In summary, the TLV62569PDDCR PMIC DC/DC converter is a top-tier power management solution that delivers exceptional performance and versatility in a tiny package. Its wide input voltage range, adjustable output voltage, and high efficiency make it an ideal choice for a variety of portable applications. Whether you're designing wearables, IoT devices, or other space-constrained electronics, the TLV62569PDDCR will provide the stable and regulated power you need. Don't miss out on the opportunity to enhance your power designs – add the TLV62569PDDCR to your cart today and experience the difference!
