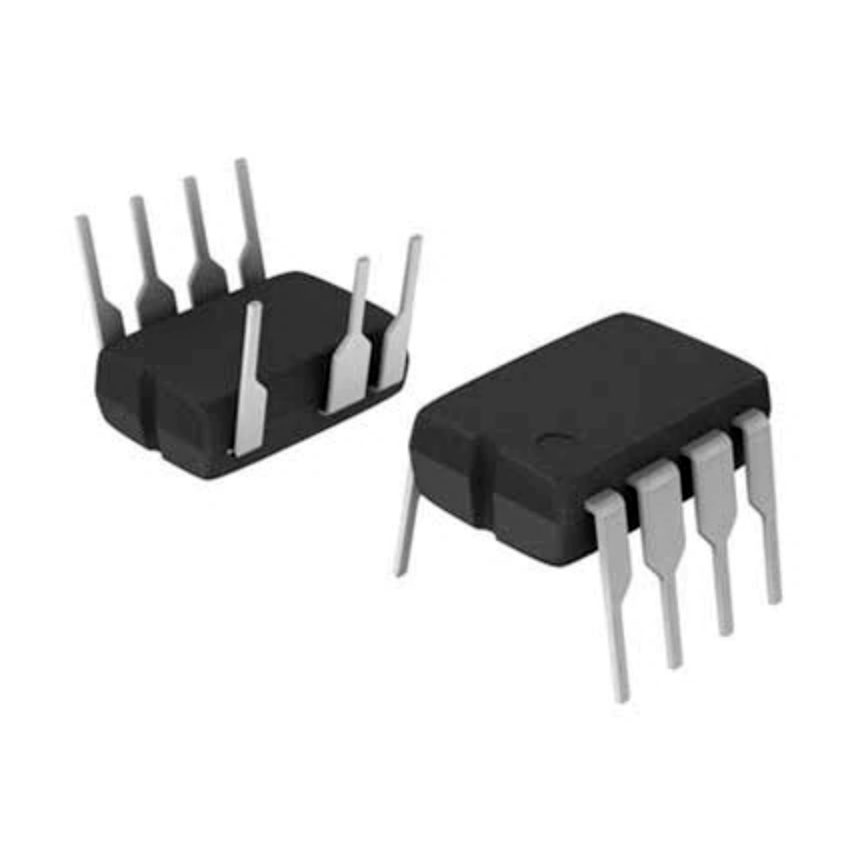

TNY180PN INTEGRATED CIRCUIT DIP-7

The TNY180PN is a highly integrated offline switcher IC (Integrated Circuit) designed for efficient and compact power supplies. Encased in a DIP-7 (Dual In-line Package) for through-hole mounting, this IC simplifies the design and construction of low-power AC-DC converters. The TNY180PN incorporates a 700V power MOSFET, oscillator, high voltage switched current source, current limit, and thermal shutdown circuitry all in a single package. This integration reduces the component count and board space required, making it ideal for cost-sensitive applications. The TNY180PN features EcoSmart technology, enabling extremely low no-load consumption, meeting stringent energy efficiency standards. Its built-in auto-restart function protects the power supply and load from fault conditions. This makes it a preferred choice for engineers seeking a compact, efficient, and protected power supply solution.

Key features of the TNY180PN include its high integration, low no-load consumption, and built-in protection functions. The DIP-7 package facilitates easy mounting and soldering. The IC is also lead-free and RoHS compliant, meeting environmental standards. Its robust construction ensures reliable operation in various environments. The TNY180PN is designed for automated assembly, reducing manufacturing costs and improving production efficiency. Its high-performance characteristics make it an excellent choice for a wide range of applications.

The TNY180PN finds extensive use in power adapters, auxiliary power supplies, and standby power supplies. In power adapters, it efficiently converts AC voltage to DC voltage for charging mobile devices and powering small appliances. In auxiliary power supplies, it provides power for housekeeping functions in larger electronic systems. In standby power supplies, it minimizes power consumption when the system is in standby mode. The device is commonly used in chargers, set-top boxes, and energy meters. Its versatility and reliability make it an essential component in many electronic designs. Its EcoSmart technology is particularly beneficial in applications where energy efficiency is critical.

When selecting the TNY180PN, consider its output power, input voltage range, and protection features to ensure it meets the specific requirements of your application. Proper soldering techniques are essential to prevent damage to the device during assembly. Always refer to the manufacturer's datasheet for detailed specifications and application guidelines. By understanding its features and limitations, you can effectively utilize the TNY180PN to create robust and efficient power supplies. Build energy-efficient power supplies with the TNY180PN. Order yours today and experience superior performance and reliability!
