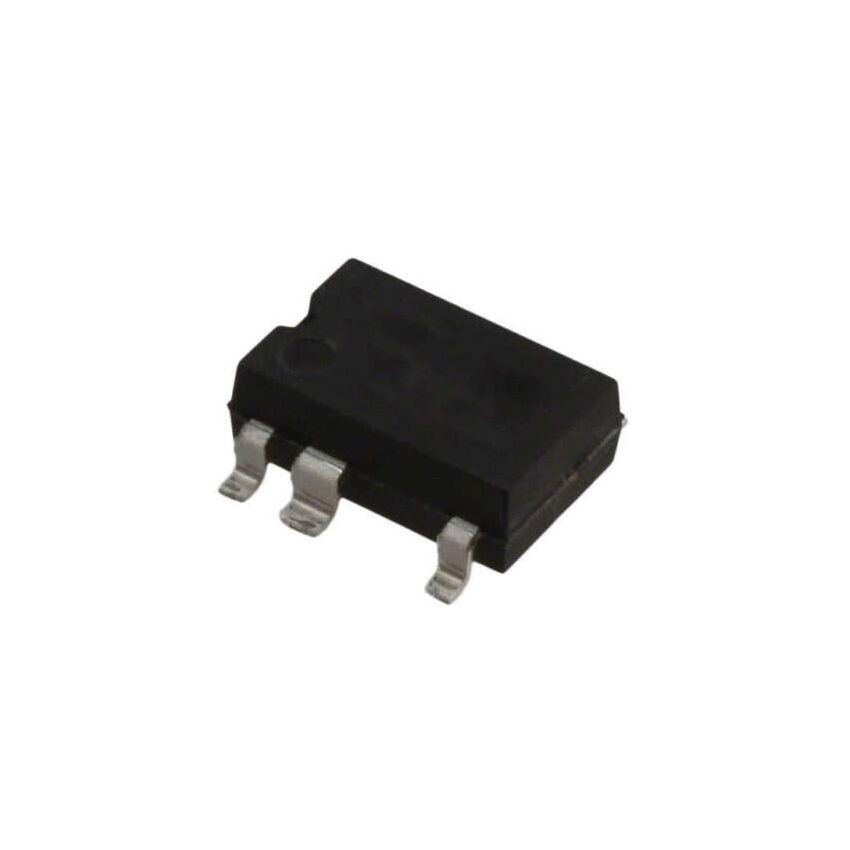

TNY288DG-TL IC OFFLINE SWITCH FLYBACK 7SO

The TNY288DG-TL is a highly efficient and compact offline switcher IC designed for flyback power supply applications. Encased in a 7-SO package, this IC integrates a power MOSFET, oscillator, high voltage switched current source, current limit, and thermal shutdown circuitry onto a single chip. This high level of integration significantly reduces component count and simplifies power supply design, making it ideal for applications where space and efficiency are critical. The TNY288DG-TL is well-suited for a wide range of applications, including chargers, adapters, standby power supplies, and LED drivers. Its robust design and comprehensive protection features ensure reliable operation in various operating conditions.

This offline switcher IC utilizes Power Integrations' EcoSmart technology to minimize energy consumption and meet stringent energy efficiency standards. The TNY288DG-TL features a built-in auto-restart function that protects the power supply from overload and short-circuit conditions. Its frequency jittering feature reduces EMI emissions, simplifying compliance with regulatory requirements. The device operates in discontinuous conduction mode (DCM) to further enhance efficiency and reduce stress on the power MOSFET. The integrated soft-start feature minimizes stress on components during startup, ensuring smooth and reliable operation. The TNY288DG-TL also incorporates a hysteretic thermal shutdown function that protects the IC from overheating.

The 7-SO package of the TNY288DG-TL offers excellent thermal performance and is designed for easy surface mounting. This compact package allows for high-density PCB layouts, making it ideal for space-constrained applications. The TNY288DG-TL is compliant with RoHS standards, ensuring that it meets environmental regulations. Its lead-free construction further underscores its commitment to environmental sustainability, making it a responsible choice for modern electronic designs. The device is designed to be highly reliable, with a long operating life, ensuring long-term performance in demanding applications. The package is also designed for automated optical inspection (AOI), facilitating efficient manufacturing processes.

Typical applications for the TNY288DG-TL include power supplies for mobile devices, such as smartphones and tablets. It is also well-suited for use in LED lighting applications, where its high efficiency and compact size are particularly beneficial. In standby power supplies, the TNY288DG-TL can provide a low-power, energy-efficient solution for powering microcontrollers and other low-power devices. Its high level of integration and robust feature set make it an excellent choice for a wide range of power supply applications. The device is also suitable for use in home appliances and industrial controls.

In summary, the TNY288DG-TL IC offers a compelling combination of performance, efficiency, and reliability in a compact package. Its high level of integration, robust feature set, and excellent thermal performance make it an ideal choice for a wide range of power supply applications. Whether you are designing mobile device chargers, LED drivers, or standby power supplies, the TNY288DG-TL provides the performance and reliability you need. Upgrade your designs today with the TNY288DG-TL and experience the difference in efficiency and performance. Order now to take advantage of its superior capabilities and optimize your power supply designs for maximum efficiency and reliability.
