TOP202YAI AC/DC Converters 15-30W 85-265 VAC 30-60W100/115/230VAC

The TOP202YAI Off-Line PWM Switcher IC is a highly integrated power conversion solution that revolutionizes the way engineers design AC-to-DC power supplies. Belonging to the renowned TOPSwitch family, this integrated circuit combines a high-voltage power MOSFET, a PWM controller, and various fault protection mechanisms onto a single CMOS chip. This high level of integration significantly reduces the total component count in a power supply design, leading to smaller form factors, lower costs, and improved reliability. The TOP202YAI is specifically designed to handle power outputs ranging from 15W to 60W depending on the input voltage and thermal configuration, making it ideal for a wide variety of applications from small consumer electronics to industrial control modules. By utilizing this switcher IC, designers can achieve high efficiency and robust performance without the complexity of traditional discrete power supply architectures, ensuring a faster time-to-market for new electronic products.

One of the standout features of the TOP202YAI is its ability to operate across a universal input voltage range of 85 VAC to 265 VAC. This flexibility allows manufacturers to design a single power supply that can be used globally, regardless of the local grid voltage. In a 100/115/230 VAC environment, the IC can deliver up to 60W of power, while in wide-range applications, it comfortably manages 15W to 30W. The internal PWM controller uses a fixed frequency of 100 kHz, which is optimized to balance efficiency with the size of the external magnetic components like transformers and inductors. This high-frequency operation allows for the use of smaller, lighter components, further contributing to the overall compactness of the power module. For engineers looking to maximize power density while maintaining cool operating temperatures, the TOP202YAI provides an elegant and efficient solution that addresses the core challenges of modern power electronics design.

Safety and protection are paramount in AC-to-DC conversion, and the TOP202YAI is equipped with an array of internal safeguards to protect both the IC and the connected circuitry. It features built-in auto-restart functionality, which automatically limits power delivery during fault conditions such as output short circuits or open loop failures. This prevents catastrophic damage to the power supply and allows for automatic recovery once the fault is cleared. Additionally, the device includes thermal shutdown protection with a large hysteresis, ensuring that the IC turns off if it exceeds safe operating temperatures and stays off until it has cooled sufficiently. This level of integrated protection eliminates the need for numerous external sensing components, further simplifying the circuit layout. By prioritizing safety through silicon-level integration, the TOP202YAI ensures that your power supply designs are not only efficient but also exceptionally rugged and reliable under adverse operating conditions.

The efficiency of the TOP202YAI is a result of the advanced TOPSwitch technology that minimizes both conduction and switching losses. The integrated power MOSFET features a high breakdown voltage and low on-resistance, while the controller logic is designed for extremely low standby power consumption. This makes the TOP202YAI an excellent choice for meeting modern energy efficiency standards, such as Energy Star or various international eco-design directives. The IC also features controlled gate turn-on, which significantly reduces electromagnetic interference (EMI), simplifying the design of the input filter and easing the process of regulatory compliance. For designers, this means less time spent on EMI troubleshooting and more time focusing on system-level functionality. Whether you are designing a primary power source for a networking device or a secondary supply for an industrial machine, the TOP202YAI provides the efficiency and low-noise performance required by today's demanding electronic environments.

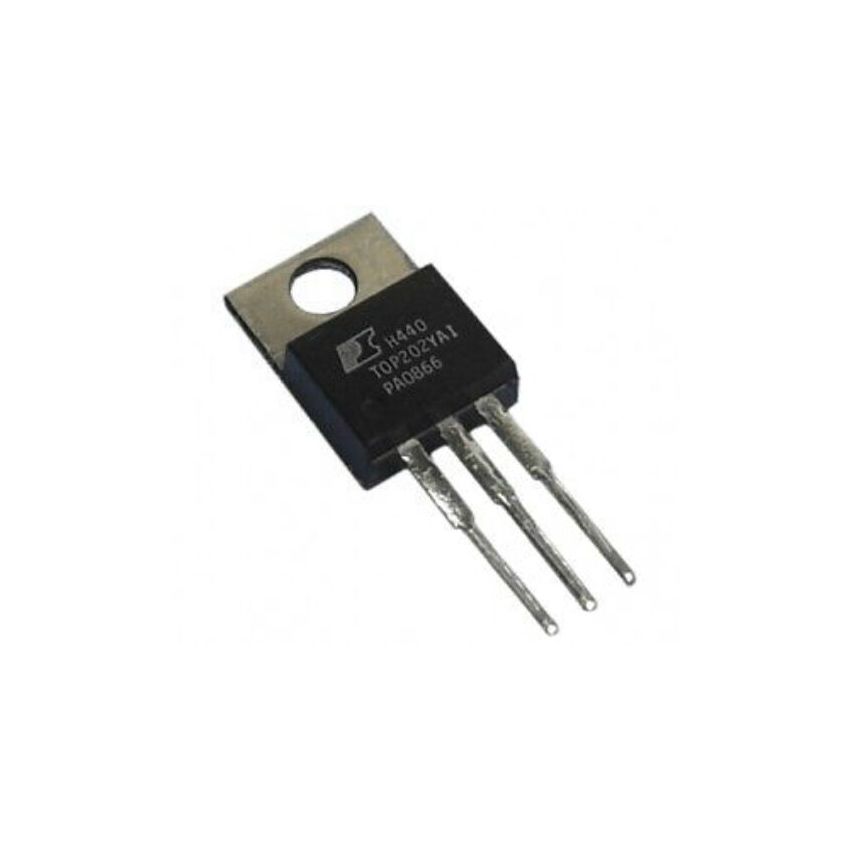

Installation and integration of the TOP202YAI are made simple by its industry-standard TO-220 package, which allows for easy mounting to heat sinks for enhanced thermal management. The pinout is designed to facilitate a clean PCB layout, separating high-voltage pins from low-voltage control signals to minimize noise coupling. This IC is compatible with a variety of transformer topologies, though it is most commonly used in flyback converters due to their simplicity and cost-effectiveness. The availability of comprehensive design tools and application notes further supports engineers in optimizing their circuits for specific power requirements. By choosing the TOP202YAI, you are gaining access to a proven technology platform that has been used in millions of power supplies worldwide, offering a level of predictability and performance that discrete solutions simply cannot match. It is the definitive choice for professionals seeking a high-performance, cost-effective off-line switcher IC.

In conclusion, the TOP202YAI Off-Line PWM Switcher IC is a versatile and powerful tool for any electronics professional involved in power supply design. Its combination of high-voltage power switching and intelligent control logic simplifies the design process while enhancing the overall efficiency and safety of the power module. With its ability to handle wide input ranges and provide robust fault protection, it is a reliable choice for a broad spectrum of global applications. We encourage you to integrate the TOP202YAI into your next project to experience the benefits of reduced component count and superior power management. Our commitment to providing high-quality semiconductor components ensures that you receive a product that meets the highest industry standards. Order your TOP202YAI units today and elevate your power supply designs to new heights of excellence and reliability. Don't miss out on this essential component for modern, high-efficiency electronics. Your journey toward better power management starts with the TOP202YAI.
