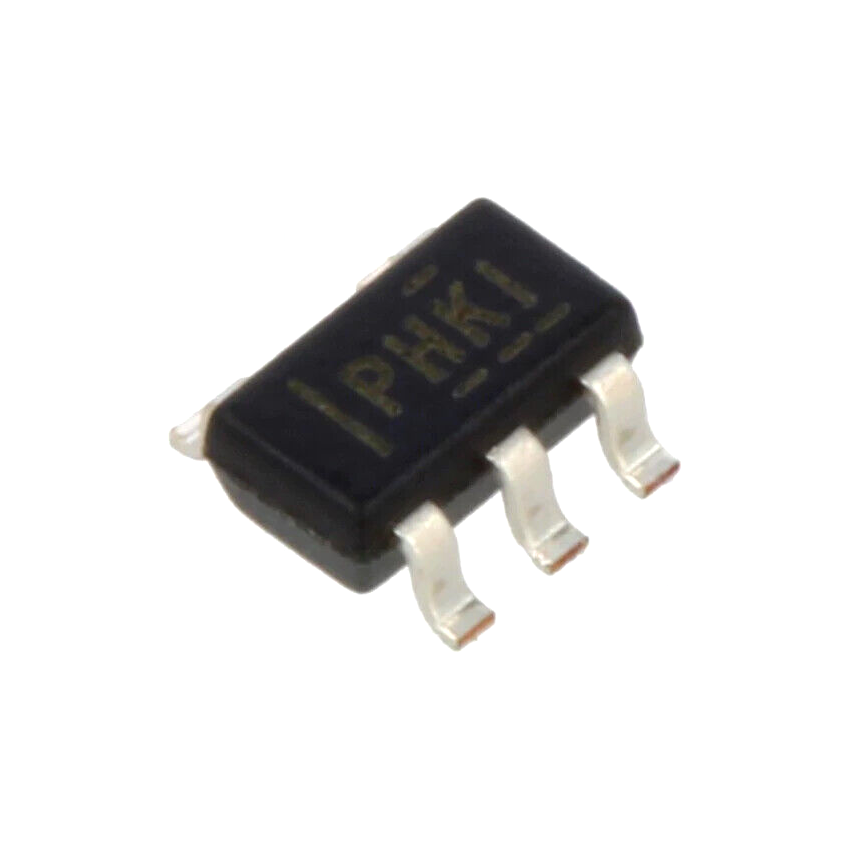

TPS62200DBVR Ic: PMIC ; Dc/Dc Wandler ; Uin : 2.5÷6VDC ; Uout: 0.7÷6VDC ; 0.3A'

The TPS62200DBVR is a highly efficient and compact synchronous step-down DC-DC converter, ideal for portable applications and battery-powered devices. This PMIC (Power Management Integrated Circuit) from Texas Instruments offers a wide input voltage range of 2.5V to 6V, making it suitable for various power sources, including single-cell lithium-ion batteries. It delivers an adjustable output voltage from 0.7V to 6V at a maximum current of 0.3A, providing flexibility for powering different loads. The TPS62200DBVR's small size and high efficiency make it an excellent choice for space-constrained applications where battery life is critical.

This DC-DC Wandler utilizes a high-frequency synchronous rectification topology to achieve efficiencies up to 95%, minimizing power losses and extending battery life. The integrated power switches reduce external component count and simplify the design process. The TPS62200DBVR also features a low quiescent current of only 18µA, further contributing to its energy efficiency. Its internal compensation network ensures stable operation with minimal external components, reducing the overall solution size and cost. The device is available in a small SOT-23 package, making it easy to integrate into compact designs.

The TPS62200DBVR is well-suited for a wide range of applications, including smartphones, tablets, portable media players, and wireless communication devices. Its high efficiency and low quiescent current make it ideal for battery-powered applications where maximizing battery life is essential. The adjustable output voltage allows it to power various loads, such as microcontrollers, sensors, and memory devices. The small size and integrated features simplify the design process and reduce the overall solution cost, making it a cost-effective choice for high-volume applications.

The TPS62200DBVR incorporates several protection features to ensure reliable operation. These include over-temperature protection (OTP), over-current protection (OCP), and short-circuit protection (SCP). The OTP feature shuts down the device when the junction temperature exceeds a safe limit, preventing thermal damage. The OCP feature limits the output current to a safe level, protecting the device and the load from over-current conditions. The SCP feature shuts down the device in the event of a short circuit, preventing damage to the device and the power source.

Optimize your power management design with the TPS62200DBVR and experience the benefits of high efficiency, compact size, and integrated protection features. Whether you're designing a smartphone, tablet, or other portable device, the TPS62200DBVR offers the performance and reliability you need to achieve optimal results. Don't compromise on power efficiency – invest in the TPS62200DBVR today and extend the battery life of your portable devices. Order now and take your power management designs to the next level!
