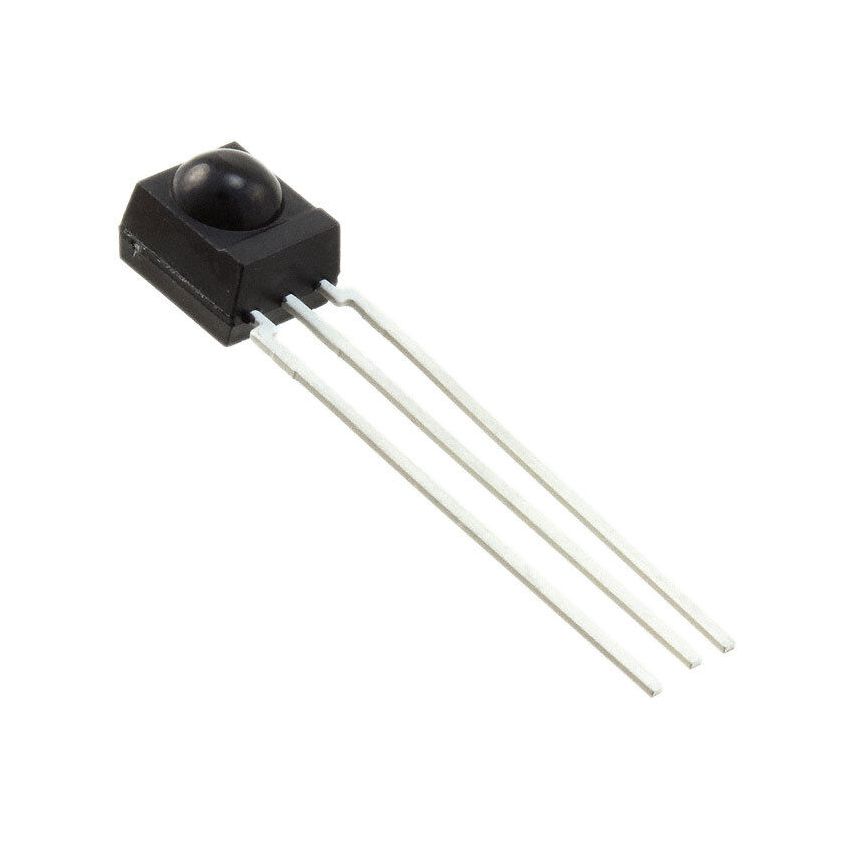

TSOP34138 3V PH.MODULE 38KHZ S.VIEW (LOT OF 2)

The TSOP34138 is a miniature infrared receiver module for remote control systems. This lot includes two individual modules, each designed to operate at 3V and detect infrared signals modulated at a carrier frequency of 38kHz. The 'S.VIEW' designation indicates a specific viewing angle, optimizing the module for receiving signals from a particular direction. These modules are commonly used in a wide range of consumer electronics, including televisions, DVD players, audio equipment, and other devices controlled by infrared remote controls. Their compact size and reliable performance make them an ideal choice for designers seeking a cost-effective and efficient solution for IR remote control functionality.

Each TSOP34138 module integrates a photodiode, preamplifier, and IR filter into a single epoxy package. The internal filter blocks out visible light and other unwanted infrared signals, ensuring that only the 38kHz modulated signal is detected. This improves the module's immunity to noise and interference, resulting in more reliable remote control operation. The 3V operating voltage makes it suitable for battery-powered devices, while the low current consumption helps to extend battery life. The module's output is an active low signal, which simplifies interfacing with microcontrollers and other digital circuits.

The 38kHz carrier frequency is a standard in many remote control systems, making the TSOP34138 a versatile choice for various applications. When an infrared signal modulated at 38kHz is received, the module's output goes low. When the signal is absent, the output remains high. This simple on/off signal can be easily interpreted by a microcontroller to decode the remote control commands. The viewing angle of the 'S.VIEW' version is optimized to provide good sensitivity within a specific cone of reception, which can be advantageous in applications where the remote control is typically used from a fixed position relative to the device.

These modules are easy to integrate into new or existing designs. Simply connect the power supply (3V), ground, and output pins to the appropriate connections on your circuit board. The module's compact size allows it to be easily mounted in a variety of locations. The TSOP34138 is a reliable and cost-effective solution for adding infrared remote control functionality to your electronic devices. This lot of two modules provides a convenient way to prototype or repair existing systems. Consider the TSOP34138 for your next project requiring IR remote control capabilities.

With its robust design and ease of use, the TSOP34138 is a popular choice among electronics hobbyists, engineers, and manufacturers. Whether you're building a custom remote control system, repairing an existing device, or simply experimenting with infrared technology, these modules offer a reliable and convenient solution. Order your lot of two TSOP34138 3V PH.MODULE 38KHZ S.VIEW modules today and experience the convenience of infrared remote control! Add to cart now!
