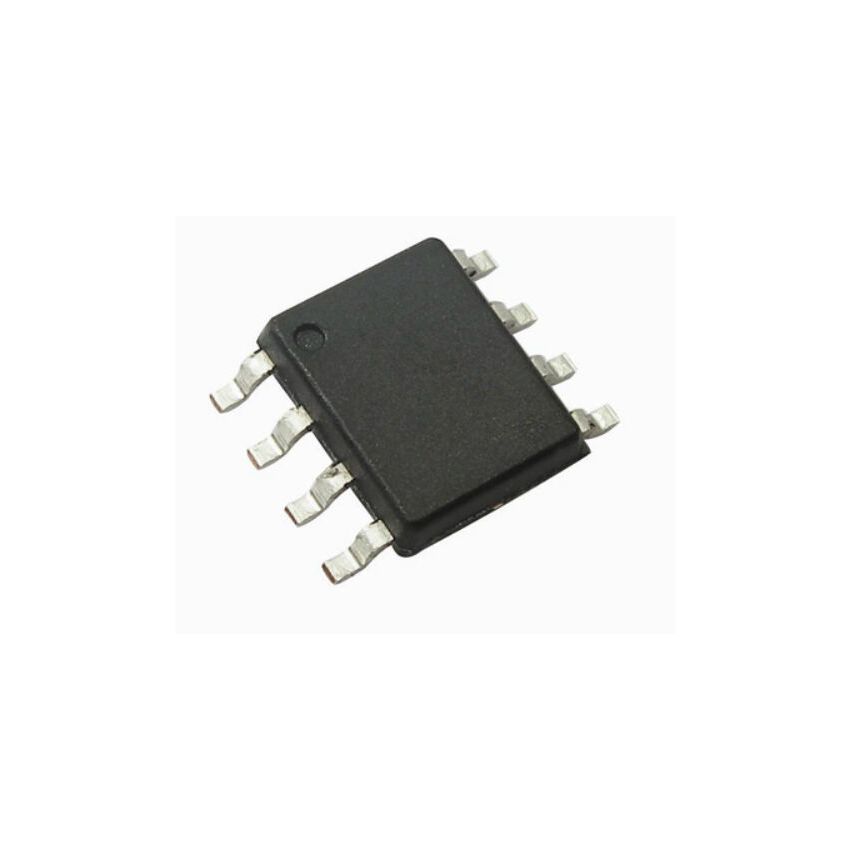

UC3842AL INTEGRATED CIRCUIT SOP-8 UC3842AL SMD

The UC3842AL is a high-performance fixed frequency current mode PWM controller integrated circuit, specifically designed for off-line and DC-to-DC converter applications. Encased in a compact SOP-8 (Small Outline Package) for surface mount device (SMD) compatibility, this IC offers a cost-effective and efficient solution for power supply designs. Its robust architecture and precise control capabilities make it a popular choice for a wide range of applications, including power adapters, battery chargers, and auxiliary power supplies. The UC3842AL's ability to operate at high frequencies allows for smaller and lighter power supply designs, reducing overall system cost and size.

This integrated circuit features a wide operating voltage range, low start-up current, and a high-current totem-pole output stage, making it suitable for driving MOSFETs directly. The UC3842AL incorporates essential protection features such as undervoltage lockout (UVLO), overcurrent protection (OCP), and overvoltage protection (OVP), ensuring safe and reliable operation of the power supply. Its current mode control architecture provides inherent line regulation and load regulation, resulting in stable and consistent output voltage even under varying input voltage and load conditions. The SOP-8 package simplifies PCB assembly and reduces board space requirements.

The UC3842AL is commonly used in switched-mode power supplies (SMPS), DC-DC converters, and battery chargers. Its high operating frequency allows for the use of smaller and less expensive passive components, such as inductors and capacitors, reducing the overall cost of the power supply. The integrated protection features safeguard the power supply against potential damage due to overcurrent, overvoltage, or undervoltage conditions. Furthermore, its low start-up current minimizes power consumption during start-up, improving overall energy efficiency. The UC3842AL is a versatile and reliable solution for a wide range of power supply applications.

When selecting a PWM controller for your power supply design, consider the UC3842AL for its exceptional performance characteristics and integrated protection features. Its compact SOP-8 package and SMD compatibility simplify PCB assembly and reduce board space requirements. The UC3842AL's robust architecture and precise control capabilities ensure stable and reliable operation of the power supply, even under demanding conditions. Whether you're designing a power adapter, a battery charger, or an auxiliary power supply, the UC3842AL is a dependable choice.

Ready to optimize your power supply designs? Add the UC3842AL integrated circuit to your cart today and experience the difference in performance and reliability. Don't miss out on this essential component for your next power supply project. Order now and take your designs to the next level!
