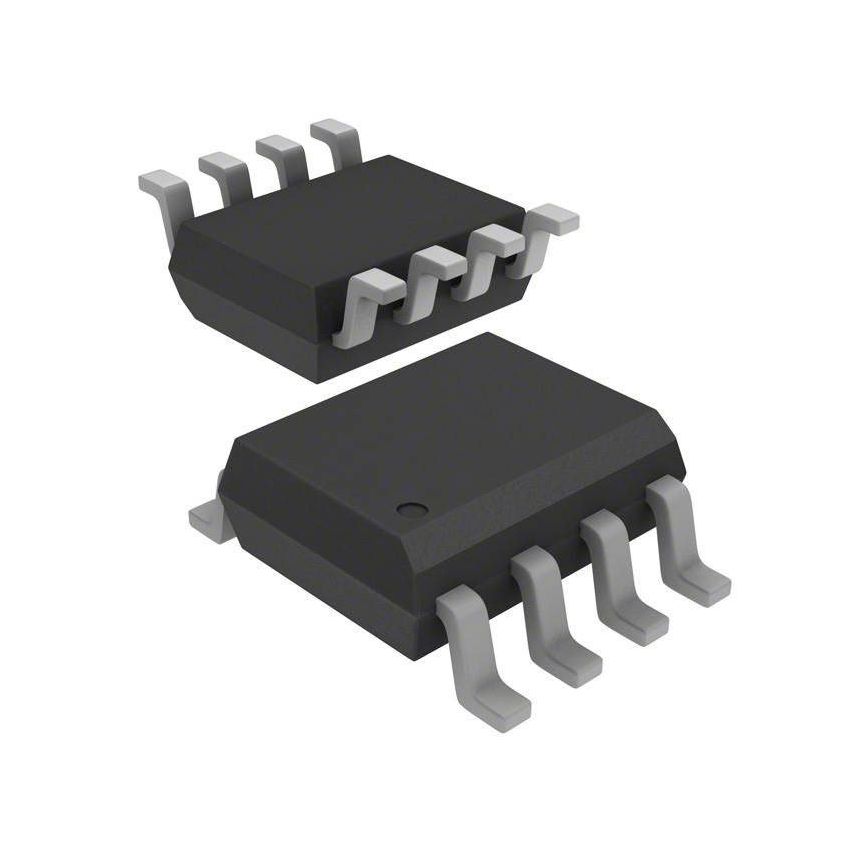

UC3844D8 PWM Controller Current Mode, 30V-10V supply, 450 kHz, 13.5V/200mA SO8

The UC3844D8 is a high-performance, current-mode PWM (Pulse Width Modulation) controller IC designed for a wide range of power supply applications. This controller operates with a supply voltage range of 10V to 30V and features a fixed switching frequency of 450 kHz, optimized for efficient power conversion. Housed in a compact SO8 (Small Outline 8-pin) package, the UC3844D8 delivers a peak output current of 200mA at 13.5V, making it suitable for driving MOSFETs in various power supply topologies. Its current-mode architecture provides inherent line voltage feed-forward, resulting in improved regulation and transient response compared to voltage-mode controllers. The UC3844D8 is an ideal choice for designers seeking a reliable and efficient PWM controller in a small form factor.

This PWM controller's fixed switching frequency of 450 kHz allows designers to optimize the performance of their power supplies for specific applications, balancing efficiency and component size. The UC3844D8 incorporates essential features such as under-voltage lockout (UVLO), programmable duty cycle, current limiting, and a high-current output stage, making it a versatile choice for various power supply topologies. The integrated current limiting feature protects the power supply from overloads and short circuits, enhancing system reliability and preventing component damage. The SO8 package offers excellent thermal performance and is suitable for surface-mount assembly, facilitating automated manufacturing processes.

The UC3844D8's under-voltage lockout (UVLO) circuitry ensures that the controller does not begin switching until the input voltage reaches a predetermined threshold, preventing erratic operation and protecting the power supply from damage during startup. The device also features a soft-start function, which gradually increases the duty cycle during startup, minimizing inrush current and reducing stress on the power components. The UC3844D8's low startup current and quiescent current contribute to its high efficiency, making it an energy-efficient solution for power supply applications. The current mode control offers improved noise immunity compared to voltage mode control, leading to more stable and reliable operation in noisy environments.

Typical applications for the UC3844D8 include off-line power supplies, DC-DC converters, AC-DC adapters, battery chargers, and LED lighting drivers. Its versatility and robust design make it suitable for a wide range of industrial, commercial, and consumer electronics applications. The UC3844D8 is also a popular choice for power factor correction (PFC) circuits, where its current-mode control architecture provides excellent performance. When designing with the UC3844D8, it is important to carefully select the external components to optimize performance and ensure compliance with safety standards. Proper layout techniques are also crucial to minimize noise and ensure stable operation.

In conclusion, the UC3844D8 PWM Controller Current Mode, 30V-10V supply, 450 kHz, 13.5V/200mA SO8 is a highly versatile and reliable solution for a wide range of power supply applications. Its integrated features, robust design, and compact SO8 package make it an excellent choice for designers seeking a cost-effective and high-performance controller. Whether you're designing an off-line power supply, a DC-DC converter, or any other power electronic application, the UC3844D8 offers the features and performance you need to succeed. Upgrade your power supply designs today with the UC3844D8! Order now and experience the difference in efficiency and control.
