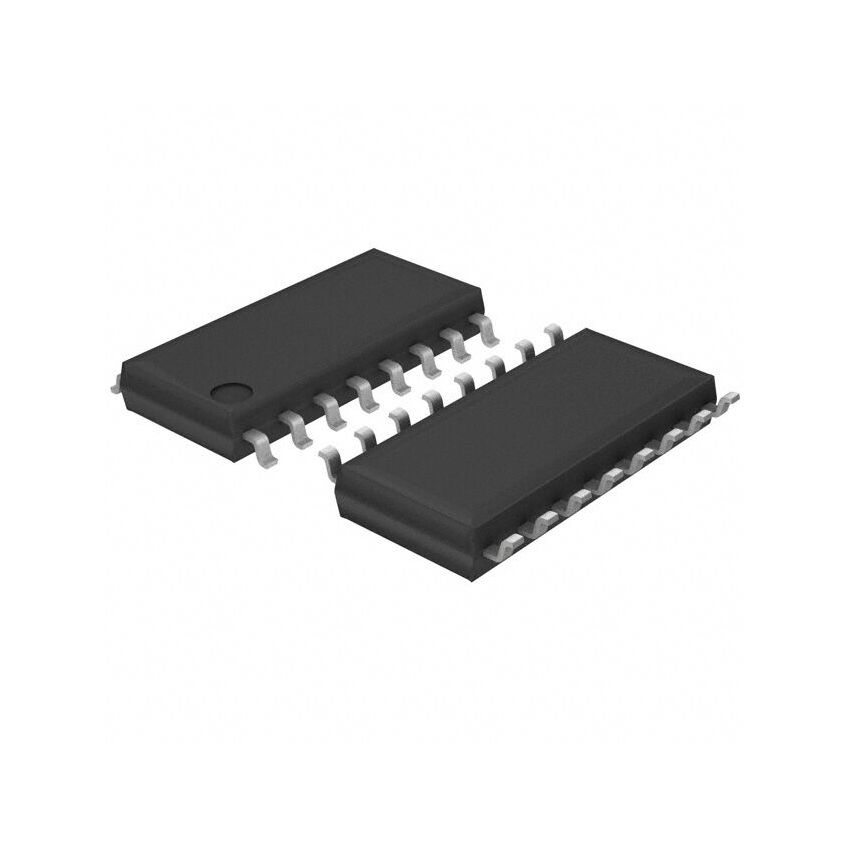

ULN2004 SMD INTEGRATED CIRCUIT SMD

The ULN2004 is a highly versatile and widely used high-voltage, high-current Darlington transistor array integrated circuit. This SMD (Surface Mount Device) version offers a compact footprint, making it ideal for modern, space-constrained electronic designs. The ULN2004 is designed to interface between low-level logic circuits and higher-power loads, such as relays, solenoids, and motors. Its robust design and ease of use have made it a staple in various applications, from industrial control systems to hobbyist projects. The SMD package allows for automated assembly, reducing manufacturing costs and improving reliability. It is commonly used as a relay driver.

Key features of the ULN2004 include seven independent Darlington transistor pairs, each capable of driving loads up to 500mA and 50V. The integrated suppression diodes protect the driving circuitry from inductive kickback when switching inductive loads, enhancing the overall reliability of the system. The ULN2004's high input impedance makes it compatible with a wide range of logic families, including TTL, CMOS, and 5V microcontrollers. The SMD package ensures efficient heat dissipation, preventing overheating and ensuring consistent performance. It is also suitable for use as a stepper motor driver.

The benefits of using the ULN2004 extend beyond its technical specifications. Its compact SMD package saves valuable board space, allowing for more complex designs in smaller form factors. The integrated suppression diodes eliminate the need for external components, simplifying the design process and reducing BOM (Bill of Materials) costs. The ULN2004's high current and voltage capabilities make it suitable for driving a wide range of loads, providing flexibility in design. Its well-documented characteristics and widespread availability of application notes make it an accessible component for both novice and experienced designers. It is also suitable for use as a lamp driver.

Typical applications for the ULN2004 include relay driving, solenoid driving, stepper motor control, and lamp driving. In relay driving applications, it provides the necessary current and voltage to activate relays from low-level logic signals. In solenoid driving applications, it controls the activation of solenoids in various industrial and automotive systems. In stepper motor control, it drives the windings of stepper motors to achieve precise positioning. Its versatility also makes it suitable for various other applications, such as LED displays and logic buffers. The ULN2004 is a reliable choice for applications requiring high-current and high-voltage switching capabilities.

For electronics enthusiasts and professionals seeking a reliable and versatile Darlington transistor array, the ULN2004 SMD is an excellent choice. Its compact size, integrated suppression diodes, and high current/voltage capabilities make it an ideal solution for a wide range of applications. Upgrade your electronic projects with the ULN2004 SMD and experience enhanced performance and reliability. Order yours today and take your designs to the next level.
