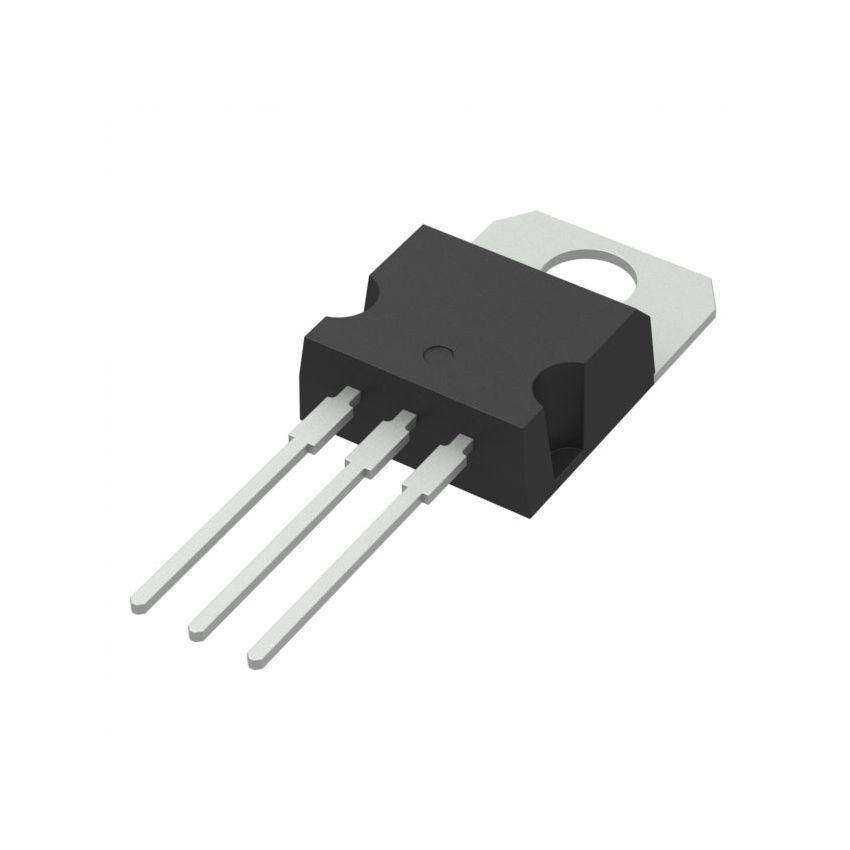

BTA06-600CWRG TRIAC Alternistor 600V 6A TO220AB

FAQs for Products

1. What does 'Alternistor' signify for the BTA06-600CWRG TRIAC Alternistor 600V 6A TO220AB, especially regarding inductive load performance?

   The 'Alternistor' designation for the BTA06-600CWRG TRIAC Alternistor 600V 6A TO220AB indicates a high-performance TRIAC specifically designed with enhanced commutation capabilities. Unlike conventional TRIACs, an Alternistor features improved turn-off characteristics, making it significantly more robust when switching inductive loads such as motors, solenoids, or transformers. This advanced design minimizes the need for external snubber networks (RC circuits) that are typically required with standard TRIACs to prevent false triggering or damage due to high dV/dt (rate of voltage change) transients during commutation. The BTA06-600CWRG's Alternistor technology ensures reliable operation and extended lifespan in applications where conventional TRIACs might struggle, simplifying circuit design and reducing component count while maintaining precise AC power control.

2. What are the recommended thermal management practices for the BTA06-600CWRG TRIAC Alternistor 600V 6A TO220AB when operating at its 6A current rating, given its TO220AB package?

   Effective thermal management is crucial for the long-term reliability and performance of the BTA06-600CWRG TRIAC Alternistor 600V 6A TO220AB, especially when operating near its 6A current rating. The TO220AB package, while offering good thermal performance, necessitates a heatsink for continuous operation at higher currents or elevated ambient temperatures. The primary recommendation is to mount the BTA06-600CWRG directly onto an appropriately sized aluminum heatsink, using thermal grease or a thermal pad to ensure optimal heat transfer from the device's tab to the heatsink. Calculating the thermal resistance from junction to ambient (Rth j-a) is vital, considering the device's junction-to-case thermal resistance (Rth j-c) and the heatsink's thermal resistance. Adequate airflow around the heatsink is also beneficial. Proper thermal management prevents the junction temperature from exceeding its maximum limit, ensuring the BTA06-600CWRG maintains its specified performance and durability.

3. Can the BTA06-600CWRG TRIAC Alternistor 600V 6A TO220AB be effectively used in dimmer circuits for LED lighting, considering its specifications and gate characteristics?

   While the BTA06-600CWRG TRIAC Alternistor 600V 6A TO220AB is capable of controlling AC power and can be used in general dimmer circuits, its suitability for modern LED lighting dimming requires careful consideration. Traditional TRIAC dimmers operate by phase-angle control, which can be problematic for certain LED drivers, potentially causing flickering, hum, or reduced performance due to the non-linear load characteristics of LEDs. The BTA06-600CWRG's robust 600V and 6A ratings are more than adequate for most residential and commercial lighting loads. However, for optimal LED dimming, it's crucial to ensure the LED driver is 'TRIAC dimmable' or 'leading-edge dimmable' compatible. Additionally, the specific gate trigger current (IGT) and holding current (IH) of the BTA06-600CWRG must be matched with the dimmer control circuit to ensure reliable turn-on and turn-off across the dimming range, preventing premature turn-off or erratic behavior at low dimming levels.

4. What are the typical gate trigger current (IGT) requirements and holding current (IH) for the BTA06-600CWRG TRIAC Alternistor 600V 6A TO220AB, and how do these impact control circuit design?

   Understanding the gate trigger current (IGT) and holding current (IH) is critical for designing an effective control circuit for the BTA06-600CWRG TRIAC Alternistor 600V 6A TO220AB. The IGT is the minimum current required at the gate to switch the TRIAC from its off-state to its on-state. For the BTA06-600CWRG, typical IGT values are in the milliampere range, which simplifies driving from microcontrollers or low-power logic circuits, often requiring a gate resistor to limit current. The IH is the minimum anode current required to keep the TRIAC in its on-state after the gate signal is removed. If the load current drops below IH, the TRIAC will turn off, which can be an issue with very light loads or capacitive loads. Designers must ensure the gate drive circuit can supply sufficient IGT under all operating conditions, and that the load current remains above IH during the conduction phase to maintain stable operation of the BTA06-600CWRG, preventing unintended commutation.

5. How does the 600V voltage rating of the BTA06-600CWRG TRIAC Alternistor 600V 6A TO220AB provide a sufficient safety margin for common AC line voltages (e.g., 120V/240V) in industrial control applications?

   The 600V voltage rating of the BTA06-600CWRG TRIAC Alternistor 600V 6A TO220AB provides a robust safety margin for controlling AC line voltages such as 120V RMS or 240V RMS, which are common in residential, commercial, and industrial applications. In an AC circuit, the peak voltage (Vp) is approximately 1.414 times the RMS voltage. For a 120V RMS line, the peak voltage is about 170V, and for a 240V RMS line, it's about 340V. The 600V rating of the BTA06-600CWRG offers a significant buffer against transient overvoltages, voltage spikes, and inductive kickback that can occur on AC power lines. This generous voltage headroom ensures the TRIAC remains within its safe operating area even during abnormal line conditions, enhancing the reliability and longevity of the controlled system. This robust rating makes the BTA06-600CWRG an ideal choice for demanding AC power switching and control tasks where voltage stability is paramount.

6. What are the advantages of using the BTA06-600CWRG TRIAC Alternistor 600V 6A TO220AB over a standard TRIAC in applications requiring high dV/dt and dI/dt immunity?

   The BTA06-600CWRG TRIAC Alternistor 600V 6A TO220AB offers distinct advantages over standard TRIACs, particularly in applications demanding high dV/dt (rate of voltage change) and dI/dt (rate of current change) immunity. Its Alternistor technology is engineered for superior commutation performance, meaning it can withstand rapid changes in voltage across its terminals without false triggering, a common issue for standard TRIACs when switching inductive loads or in noisy environments. This inherent high dV/dt immunity often eliminates or significantly reduces the need for external snubber circuits, simplifying design and reducing BOM cost. Furthermore, its robust construction typically provides enhanced dI/dt capability, allowing it to handle fast current rise times during turn-on more reliably. These characteristics make the BTA06-600CWRG TRIAC Alternistor 600V 6A TO220AB ideal for industrial control, motor control, and solid-state relay applications where reliability under transient conditions is critical.

7. What considerations should be made regarding electromagnetic interference (EMI) when integrating the BTA06-600CWRG TRIAC Alternistor 600V 6A TO220AB into sensitive electronic systems, particularly during switching operations?

   When integrating the BTA06-600CWRG TRIAC Alternistor 600V 6A TO220AB into sensitive electronic systems, especially during its switching operations, careful consideration of electromagnetic interference (EMI) is essential. TRIACs, by their nature, can generate EMI due to the abrupt switching of AC current, creating high-frequency harmonics that can interfere with nearby sensitive circuits. To mitigate this, several design practices are recommended. Utilizing zero-crossing detection circuits to trigger the BTA06-600CWRG only when the AC voltage crosses zero can significantly reduce conducted and radiated EMI, as it minimizes the sudden change in current. Additionally, proper PCB layout, including short and wide traces for high-current paths, adequate grounding, and shielding, can help contain EMI. In some cases, a small RC snubber network, even if not strictly necessary for the Alternistor's commutation, might be employed to further suppress switching noise. Filtering components like common-mode chokes or line filters on the AC input can also be beneficial to ensure the BTA06-600CWRG operates without adversely affecting other system components.
