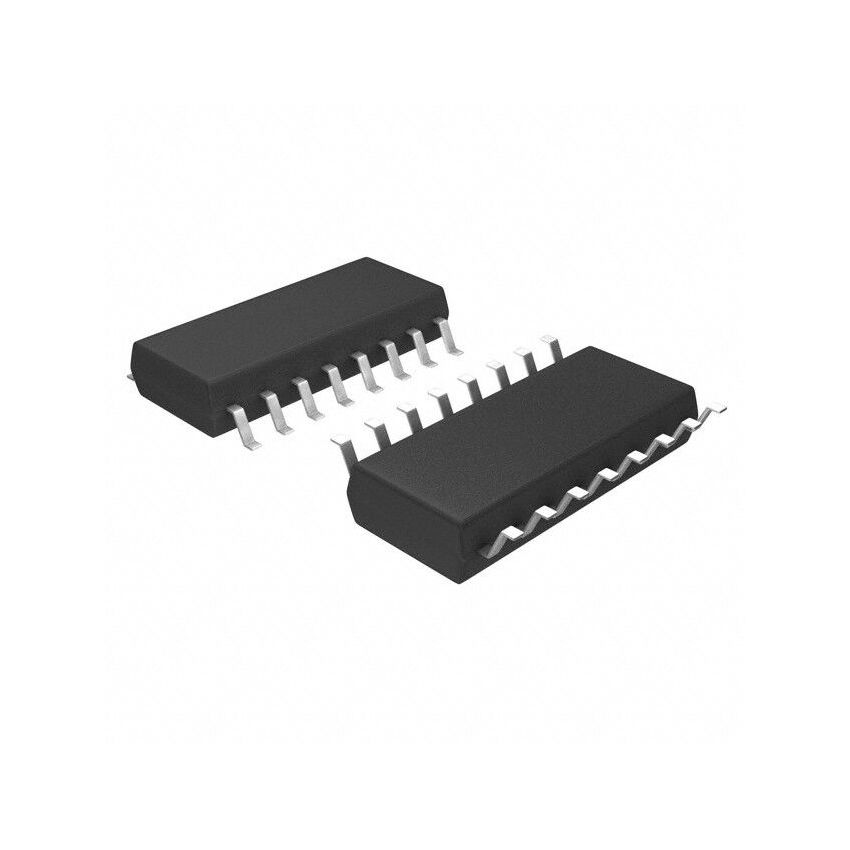

74F139SC IC DECODER/DEMUX DL 1OF4 16-SOIC

The 74F139SC is a high-speed dual 1-of-4 decoder/demultiplexer integrated circuit (IC) housed in a 16-SOIC (Small Outline Integrated Circuit) package. This IC is designed for applications requiring fast and efficient decoding or demultiplexing of digital signals, such as memory addressing, data routing, and control logic. The 16-SOIC package is a surface-mount package that offers a compact footprint and is suitable for high-density circuit board designs. The 74F139SC consists of two independent 1-of-4 decoders/demultiplexers, each with two select inputs (A and B) and an enable input (G). When the enable input is low, the decoder/demultiplexer is active, and one of the four outputs (Y0-Y3) is selected based on the binary code applied to the select inputs. When the enable input is high, all outputs are high, effectively disabling the decoder/demultiplexer.

Key features of the 74F139SC include its high speed, low power consumption, and wide operating voltage range. The high speed allows for fast decoding and demultiplexing of digital signals, while the low power consumption minimizes energy usage. The wide operating voltage range provides flexibility in power supply selection. The 74F139SC is commonly used in memory addressing applications, where it can be used to select one of four memory banks based on the address inputs. It can also be used in data routing applications, where it can be used to direct data to one of four destinations. In control logic applications, it can be used to generate control signals based on the input code.

When selecting the 74F139SC, consider the speed requirements, power consumption, and operating voltage range of your application. Ensure that the IC's specifications meet or exceed your requirements. Proper decoupling capacitors should be used to minimize noise and ensure stable operation. The 74F139SC is a reliable and versatile decoder/demultiplexer that offers excellent performance in a wide range of applications. Its high speed, low power consumption, and wide operating voltage range make it an ideal choice for demanding digital logic designs. Upgrade your digital circuits with the 74F139SC and experience enhanced performance and efficiency.

Order yours today and take your projects to the next level!
