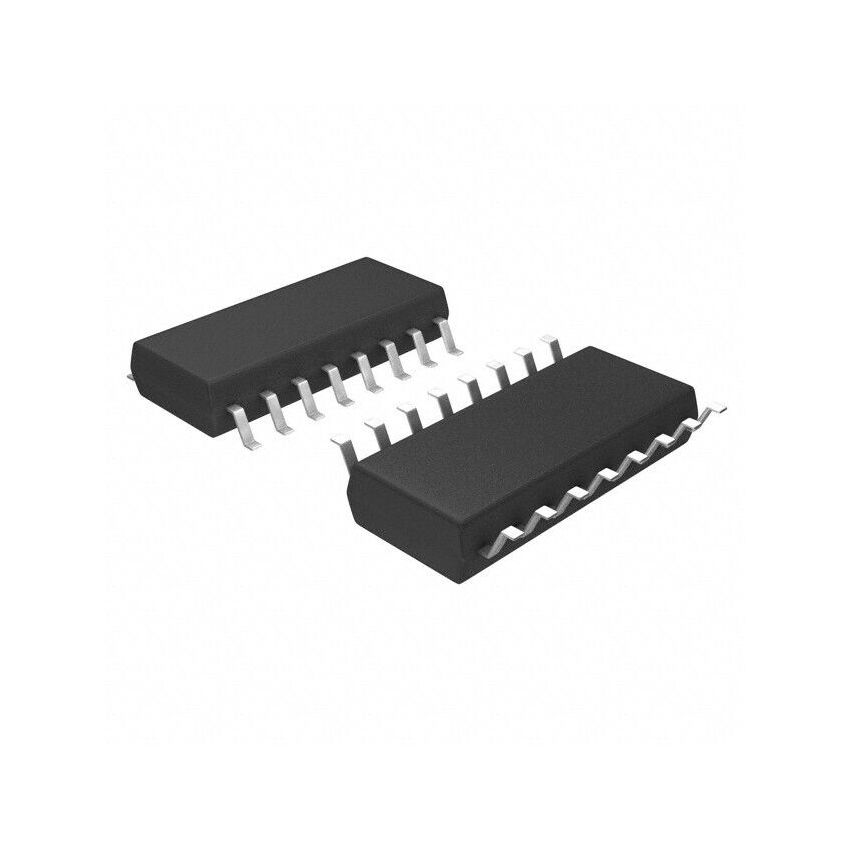

74HC595D,118 IC SHIFT REGISTER 8BIT 16SOIC (X2)

The 74HC595D,118 is a high-speed CMOS 8-bit shift register with output latches, housed in a 16-SOIC (Small Outline Integrated Circuit) package. This integrated circuit is a fundamental building block in digital electronics, enabling serial-to-parallel data conversion, which is crucial for expanding the number of output pins from a microcontroller or other digital device. The 'HC' designation indicates that it belongs to the high-speed CMOS logic family, offering a good balance between speed and power consumption. The 74HC595D,118 is widely used in applications such as LED displays, motor control, and memory addressing, where multiple outputs need to be controlled with a limited number of control lines.

Diving into the specifications, the 74HC595D,118 operates with a supply voltage range of 2V to 6V, making it compatible with various logic levels. It features three-state outputs, allowing the outputs to be disabled, which is useful for multiplexing applications. The shift register has a serial input (SER), a shift register clock input (SRCLK), and a storage register clock input (RCLK). Data is shifted into the register on the rising edge of the SRCLK, and then transferred to the output latches on the rising edge of the RCLK. The IC also includes an output enable (OE) pin, which controls the state of the outputs. Understanding these specifications is crucial for effectively utilizing the 74HC595D,118 in digital circuits.

The benefits of using the 74HC595D,118 extend beyond its technical capabilities. Its serial-to-parallel conversion capability allows for a significant reduction in the number of I/O pins required from a microcontroller, simplifying the design and reducing the cost of the overall system. The 16-SOIC package is compact and easy to solder, making it suitable for both prototyping and mass production. Furthermore, the 74HC595D,118's high-speed operation ensures fast data transfer and minimal delay. Its versatility allows it to be used in a wide range of applications, from simple LED displays to complex motor control systems, making it a valuable addition to any electronics engineer's toolkit.

Consider the 74HC595D,118 for a variety of applications. In LED displays, it can be used to control multiple LEDs with a minimal number of control lines, creating dynamic and visually appealing displays. In motor control systems, it can be used to control multiple motors with a single microcontroller, simplifying the control logic and reducing the complexity of the system. In memory addressing, it can be used to expand the addressable memory space of a microcontroller, allowing for the use of larger memory chips. Its versatility makes it suitable for projects ranging from simple hobby circuits to complex industrial systems.

In conclusion, the 74HC595D,118 IC Shift Register is a reliable, versatile, and cost-effective solution for a wide range of digital electronics applications. Its serial-to-parallel conversion capability simplifies the design process, while its high-speed operation ensures fast data transfer. Whether you're a seasoned engineer or a budding hobbyist, the 74HC595D,118 is an essential addition to your electronics toolkit. Don't miss out on the opportunity to enhance your projects with this dependable IC. Order your 74HC595D,118 IC Shift Registers today and experience the difference in your digital designs!
