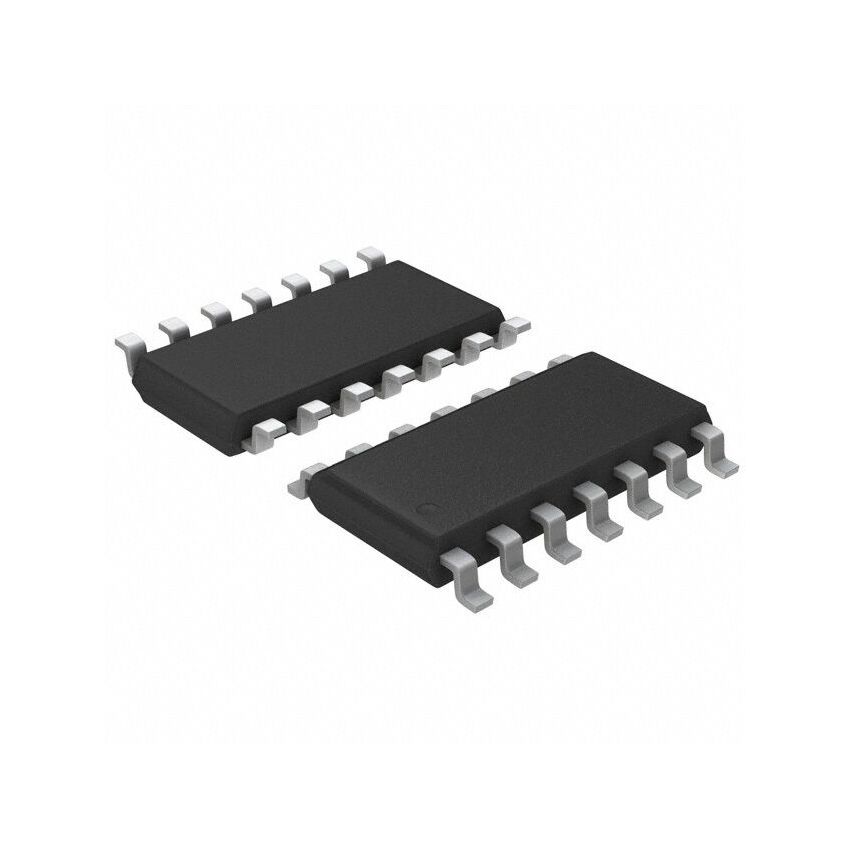

74LV4066D IC SWITCH QUAD 1X2 14SOIC

The 74LV4066D IC is a high-speed, quad single-pole single-throw (SPST) analog switch designed for a wide range of applications. This integrated circuit features four independent switches, each with a control input that determines whether the switch is open or closed. Encased in the compact 14-SOIC (Small Outline Integrated Circuit) package, the 74LV4066D offers excellent performance and ease of integration into various circuit designs. The 74LV4066D is designed to operate with a wide supply voltage range, typically from 1.0V to 5.5V, making it compatible with both low-voltage and high-voltage logic circuits. Its low on-resistance (typically 5 ohms) ensures minimal signal distortion and attenuation when the switch is closed. The high off-resistance (typically 100 Mohms) ensures minimal signal leakage when the switch is open.

These characteristics make it an ideal choice for applications where signal integrity is critical. The quad SPST configuration of the 74LV4066D allows for versatile switching capabilities. Each switch can be controlled independently, allowing for flexible routing of analog or digital signals. The switches are bidirectional, meaning they can pass signals in either direction when closed. The 14-SOIC package of the 74LV4066D allows for easy and efficient mounting on printed circuit boards (PCBs). Its small size and flat leads make it suitable for automated assembly processes, reducing manufacturing costs and improving overall production efficiency.

The surface-mount design also minimizes parasitic inductance and capacitance, which is crucial for high-frequency applications. This IC is commonly used in analog signal switching, where it can route analog signals from one circuit to another. It is also suitable for use in digital signal switching, where it can route digital signals from one circuit to another. In audio and video applications, the 74LV4066D can be used to switch between different audio or video sources. Furthermore, it is ideal for use in multiplexers and demultiplexers, where it can select one of several input signals or route one input signal to one of several outputs. The 74LV4066D IC is manufactured to meet stringent quality standards, ensuring reliable performance and long-term durability.

Its robust construction and stable electrical characteristics make it a dependable choice for a wide range of applications. Whether you are designing an analog signal switching circuit, a digital signal switching circuit, or a multiplexer/demultiplexer, this IC offers the performance and reliability you need. Enhance your electronic projects with the versatile 74LV4066D IC. Order yours today and experience the benefits of its low on-resistance, high off-resistance, and quad SPST configuration. Its compact 14-SOIC package makes it easy to use and integrate into your designs, allowing you to quickly and efficiently develop high-performance switching circuits.
