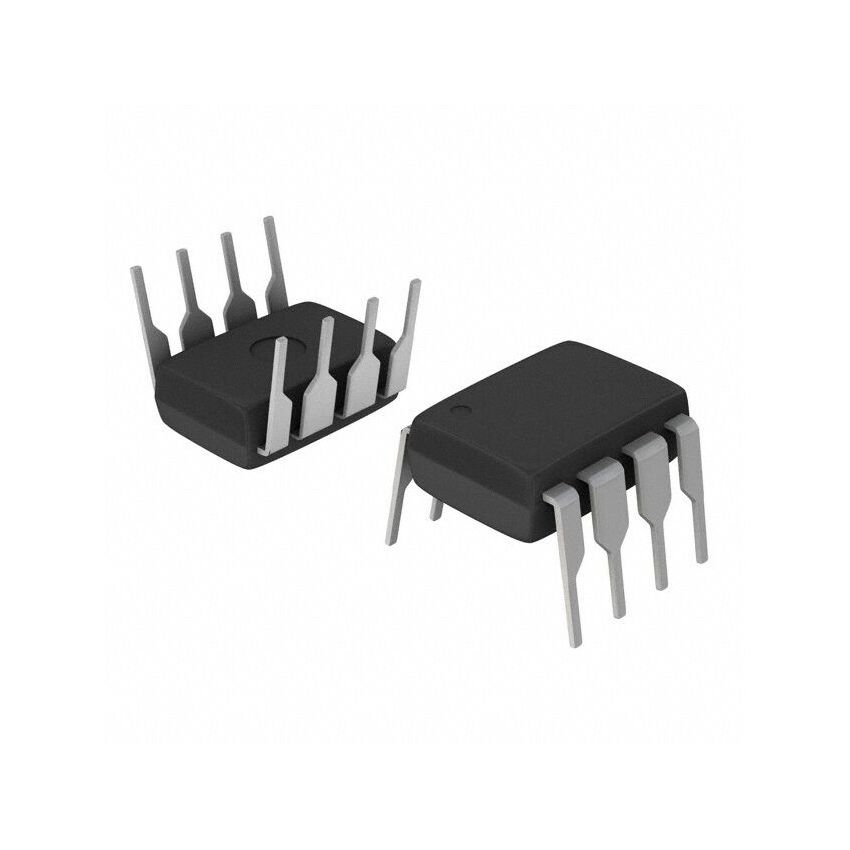

AD633JN ANALOG DEVICES INTEGRATED CIRCUIT

Unlock precision and efficiency in your analog signal processing applications with the AD633JN, a high-performance analog multiplier from Analog Devices. This integrated circuit is meticulously designed to provide accurate four-quadrant multiplication, division, squaring, and square-rooting functionalities, making it an indispensable component for a wide spectrum of electronic designs. The AD633JN boasts exceptional linearity and a wide bandwidth, ensuring reliable and consistent performance even in demanding environments. Its low total harmonic distortion (THD) minimizes signal degradation, preserving signal integrity for sensitive applications. With a typical bandwidth of 1 MHz, the AD633JN allows for rapid processing of analog signals, enabling real-time operations and enhancing overall system responsiveness. This integrated circuit operates from a dual power supply, typically ±15V, offering versatility in power management and compatibility with existing analog systems.

The AD633JN features differential X and Y inputs, providing flexibility in signal configuration and allowing for precise control over input signals. Its Z input can be used to sum the outputs of multiple AD633JN devices, facilitating complex signal processing architectures. The internal resistor network ensures accurate scaling and minimizes external component requirements, simplifying circuit design and reducing the overall footprint. This reduces the complexity of your PCB layout and lowers manufacturing costs. The AD633JN finds widespread use in various applications, including voltage-controlled amplifiers (VCAs), mixers, modulators, and automatic gain control (AGC) circuits. In VCAs, the AD633JN acts as a variable resistor, enabling precise adjustment of signal amplitude.

As a mixer, it combines two signals to generate sum and difference frequencies, crucial for radio frequency (RF) applications. In modulators, the AD633JN encodes information onto a carrier signal, facilitating data transmission. And in AGC circuits, it maintains a constant output signal level despite variations in input signal strength. Its robust design and dependable performance make the AD633JN an excellent choice for demanding industrial, scientific, and medical applications. The Analog Devices AD633JN represents a pinnacle of analog integrated circuit design, delivering unparalleled precision, versatility, and reliability. Upgrade your analog signal processing capabilities with the AD633JN and experience the difference that high-performance engineering can make.

Whether you're designing a sophisticated audio processing system or a critical industrial control loop, the AD633JN provides the performance and flexibility you need to succeed. Don't compromise on quality. Invest in the AD633JN today and take your projects to the next level. Order now and experience the superior performance of the Analog Devices AD633JN in your next project.
