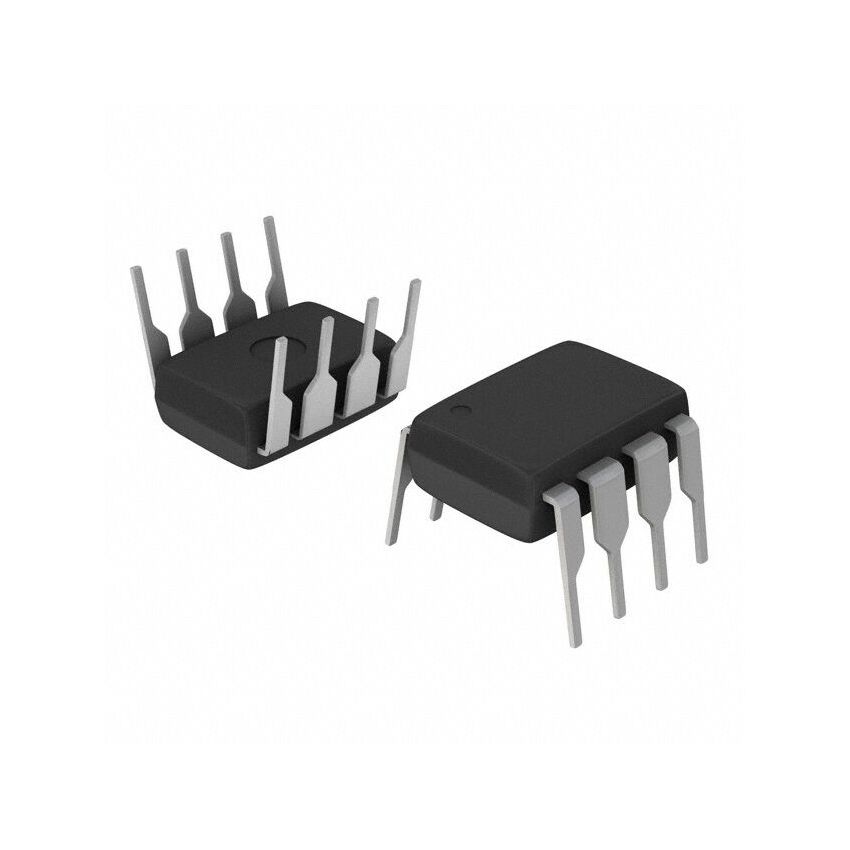

AD8307ANZ INTEGRATED CIRCUIT DIP-8

The AD8307ANZ is a low-cost, high-performance logarithmic amplifier designed for accurate measurement of RF and IF signals. This integrated circuit (IC) comes in a DIP-8 (Dual In-line Package) configuration, making it easy to prototype and integrate into existing circuits. The AD8307ANZ provides a wide dynamic range of over 90 dB, allowing it to measure signals from very weak to very strong with high accuracy. Its logarithmic response provides a linear output voltage proportional to the input signal power in decibels, simplifying signal processing and analysis. Key features of the AD8307ANZ include high sensitivity, low power consumption, and excellent linearity. These attributes make it an ideal choice for a wide range of RF and IF applications, including power measurement, signal detection, and automatic gain control (AGC).

The DIP-8 package allows for easy breadboarding and prototyping, making it a valuable tool for engineers and hobbyists alike. The AD8307ANZ is commonly used in applications such as spectrum analyzers, network analyzers, and wireless communication systems. Its wide dynamic range and high accuracy make it suitable for measuring both narrowband and wideband signals. The IC also includes built-in temperature compensation circuitry, ensuring stable performance over a wide temperature range. The AD8307ANZ is designed to operate from a single power supply, simplifying system design and reducing power consumption. Its low power consumption makes it suitable for use in battery-powered devices.

The integrated circuit's robust design ensures reliable operation even under demanding conditions. It is designed to withstand high voltages and temperatures, making it a dependable choice for long-term use. In addition to its electrical performance, the AD8307ANZ is also designed for ease of use. The standard DIP-8 package allows for simple soldering and integration into existing circuit designs. Its compact size minimizes the footprint on the printed circuit board (PCB), allowing for higher density designs. The AD8307ANZ is a versatile and reliable logarithmic amplifier that provides excellent performance in a single chip.

Its wide dynamic range, high accuracy, and low power consumption make it an ideal choice for a wide range of RF and IF applications. Whether you are designing a new spectrum analyzer or upgrading an existing wireless communication system, the AD8307ANZ offers the performance and reliability you need. Unlock precise signal analysis capabilities today, and harness the power of the AD8307ANZ for your RF measurements. Don't settle for inaccurate measurements – choose the AD8307ANZ for superior performance and reliability. Order yours now and see the difference it makes. Perfect for RF power measurement, signal strength indication, and instrumentation requiring accurate logarithmic response.
