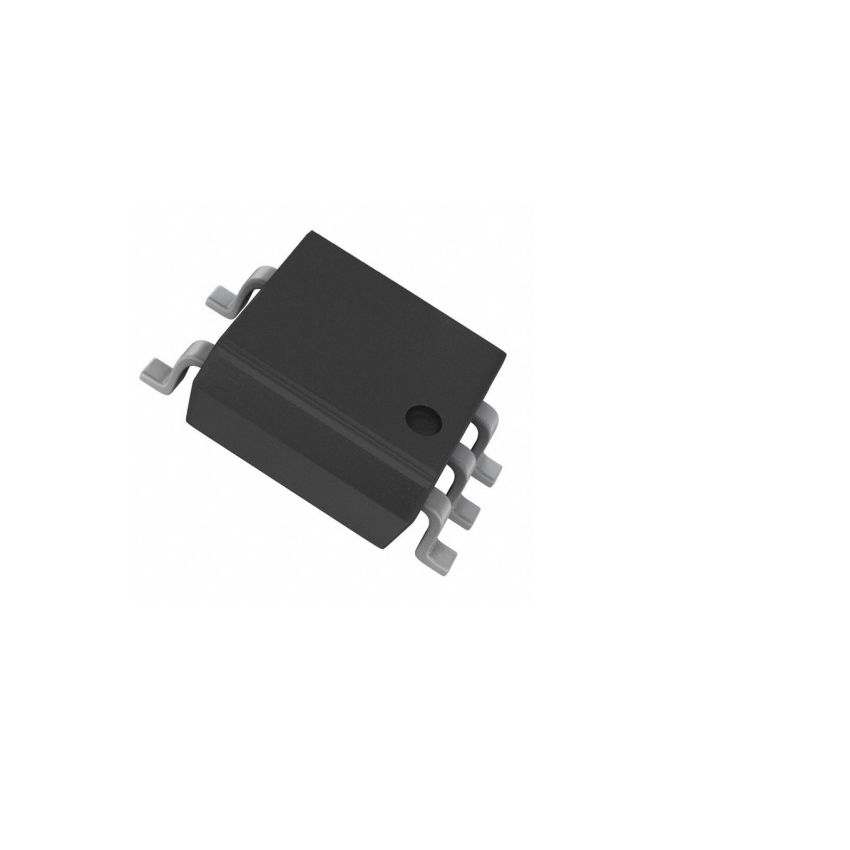

PC417 Ultra High Speed Opto-Isolator SOP-5

The PC417 Ultra High Speed Opto-Isolator SOP-5 represents a significant advancement in signal isolation technology, offering unparalleled speed and reliability for a wide range of applications. This compact, surface-mount device is designed to provide robust electrical isolation between circuits while maintaining exceptional signal integrity. Its small outline package (SOP-5) makes it ideal for space-constrained applications where board density is a critical factor. The PC417 leverages advanced optoelectronic technology to achieve superior performance characteristics, making it a preferred choice for demanding industrial, telecommunications, and automotive environments. It's a crucial component for ensuring system safety and preventing ground loops.

At the heart of the PC417 lies a high-efficiency infrared LED and a high-speed photodiode detector, meticulously engineered to deliver rapid signal transmission. This combination enables the opto-isolator to achieve ultra-fast switching speeds, minimizing propagation delay and ensuring accurate data transfer. The device boasts a high common-mode transient immunity (CMTI), which effectively suppresses noise and prevents spurious signals from interfering with the intended signal path. This feature is particularly important in noisy industrial environments where electromagnetic interference (EMI) is prevalent. The PC417 is designed for seamless integration into existing circuit designs.

The PC417 Ultra High Speed Opto-Isolator SOP-5 offers numerous benefits that make it a superior choice over traditional isolation methods. Its compact size and surface-mount design simplify assembly and reduce board space requirements, leading to smaller and more efficient electronic products. The high-speed performance ensures minimal signal distortion and accurate data transmission, which is crucial for real-time control systems and high-frequency communication applications. Furthermore, the robust electrical isolation provides enhanced safety and protects sensitive circuitry from voltage spikes and surges. The device's high CMTI ensures reliable operation in harsh environments, minimizing downtime and improving overall system reliability.

This opto-isolator finds applications in a diverse range of industries. In industrial automation, it's used to isolate control signals between PLCs and motor drives, preventing electrical noise from disrupting sensitive control circuitry. In telecommunications, it provides isolation in data transmission lines, ensuring signal integrity and protecting equipment from voltage surges. In automotive electronics, it's used in battery management systems and electric vehicle (EV) charging stations to provide safe isolation between high-voltage and low-voltage circuits. The PC417 is also suitable for medical equipment, power supplies, and instrumentation applications where reliable electrical isolation is paramount. Its versatility makes it a valuable component for any design requiring robust signal isolation.

Upgrade your system's isolation capabilities with the PC417 Ultra High Speed Opto-Isolator SOP-5. Experience the benefits of its ultra-fast switching speeds, high CMTI, and compact design. Ensure the safety and reliability of your electronic circuits with this advanced optoelectronic device. Order yours today and take your designs to the next level. Don't compromise on performance or safety – choose the PC417 for superior signal isolation. Invest in the best, and experience the difference. Click here to purchase now and revolutionize your electronic designs!
