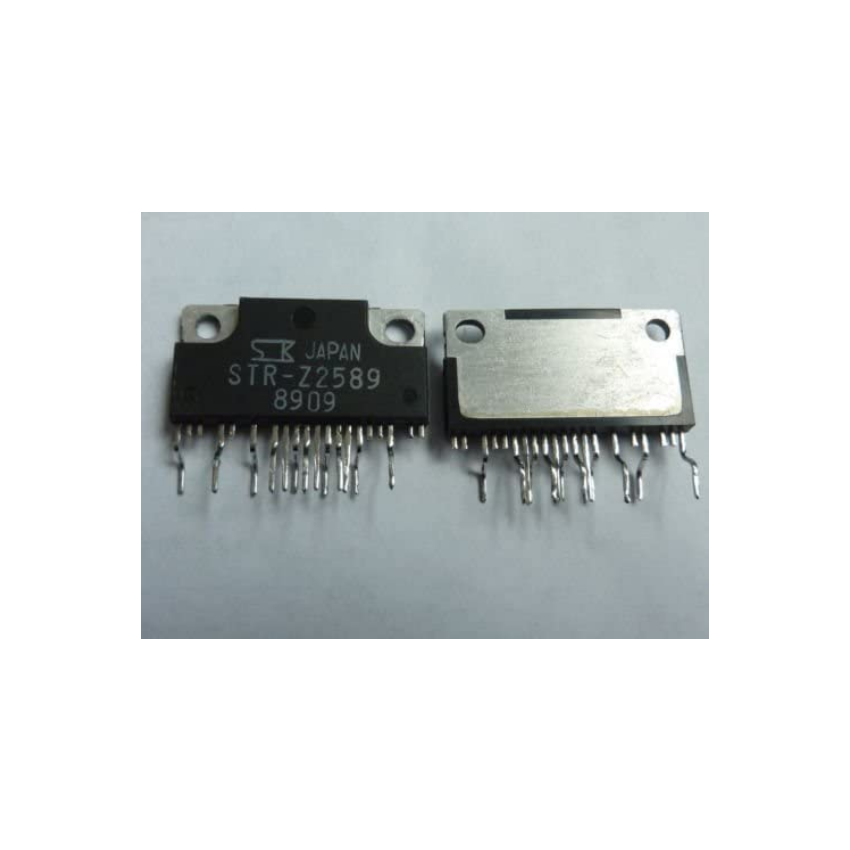

STR-Z2589 STRZ2589 used in Toshiba Power Supply Q860A 42XV505D 37RV753B LCD TV

The STR-Z2589, also denoted as STRZ2589, is a crucial power integrated circuit (IC) specifically designed for use in the power supply units of various Toshiba LCD TVs, including models such as Q860A, 42XV505D, and 37RV753B. This IC plays a vital role in regulating and controlling the power delivered to the different components of the television, ensuring stable and reliable operation. The STR-Z2589 is a highly integrated device that incorporates multiple functions, such as power factor correction (PFC) and pulse-width modulation (PWM) control, into a single package. Its robust design and advanced features make it an essential component for maintaining the performance and longevity of these Toshiba LCD TVs. Replacing a faulty STR-Z2589 can often restore a malfunctioning TV to its original working condition.

The STR-Z2589 is responsible for converting the AC mains voltage into the various DC voltages required by the TV's internal circuitry, including the backlight, audio amplifier, and digital processing units. It achieves this through a combination of PFC and PWM techniques. The PFC stage ensures that the power drawn from the AC mains is sinusoidal and in phase with the voltage, minimizing harmonic distortion and improving energy efficiency. The PWM stage regulates the output voltage by adjusting the duty cycle of a switching transistor, providing precise control over the power delivered to the load. The STR-Z2589 also incorporates various protection features, such as over-voltage protection (OVP), over-current protection (OCP), and over-temperature protection (OTP), to prevent damage to the TV in the event of a fault condition.

The STR-Z2589 is typically located on the power supply board of the Toshiba LCD TV. When a TV exhibits symptoms such as no power, intermittent power, or distorted picture, a faulty STR-Z2589 may be the cause. Replacing the IC requires careful soldering skills and a good understanding of electronics. It is essential to use a high-quality replacement part to ensure proper operation and avoid further damage to the TV. Before replacing the STR-Z2589, it is recommended to check other components on the power supply board, such as capacitors and diodes, to rule out other potential causes of the problem. A thorough diagnosis is crucial for a successful repair.

From a technical perspective, the STR-Z2589 is a complex integrated circuit with multiple pins and internal circuitry. It operates at high frequencies and voltages, requiring careful design and layout to ensure stable and reliable operation. The datasheet for the STR-Z2589 provides detailed information on its electrical characteristics, pinout, and application circuits. Designers and technicians should consult the datasheet before working with the IC to ensure proper usage and avoid damage. The STR-Z2589 is a specialized component designed for specific applications in Toshiba LCD TVs, and it is not typically interchangeable with other power ICs.

In conclusion, the STR-Z2589 (STRZ2589) is a critical power IC used in the power supplies of Toshiba LCD TVs such as the Q860A, 42XV505D, and 37RV753B. It provides essential power regulation and protection functions, ensuring the stable and reliable operation of the TV. If you are experiencing power-related issues with your Toshiba LCD TV, replacing the STR-Z2589 may be the solution. Ensure you use a high-quality replacement part and exercise caution during the repair process. Order your STR-Z2589 today and restore your Toshiba LCD TV to its original glory!
