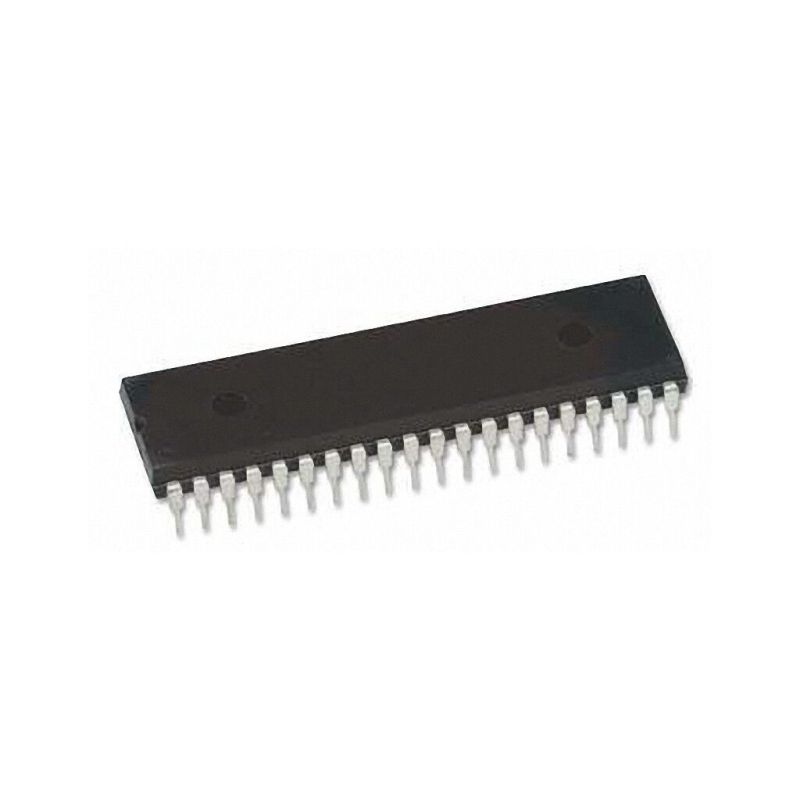

SY6522 INTEGRATED CIRCUIT DIP-40

The SY6522, housed in a DIP-40 (Dual In-line Package) package, is a versatile and widely used integrated circuit known as the Versatile Interface Adapter (VIA). Originally designed by Synertek, this IC provides a flexible interface between microprocessors and peripheral devices. The SY6522 is particularly renowned for its use in the Commodore 64 and other vintage computer systems, where it served as a critical component for handling input/output (I/O) operations. The DIP-40 package is a through-hole package that is easy to mount on printed circuit boards (PCBs), making it ideal for prototyping, hobbyist projects, and retro computing applications. Its robust design and well-defined pinout have made it a favorite among electronics enthusiasts for decades. Key features of the SY6522 include its two 8-bit parallel I/O ports, which can be individually configured as inputs or outputs.

This flexibility allows the IC to interface with a wide range of peripheral devices, such as keyboards, printers, displays, and sensors. The SY6522 also includes two programmable timers, which can be used to generate interrupts, control timing sequences, and implement real-time functions. These timers are highly configurable and can be used in a variety of modes, making them suitable for a wide range of applications. The SY6522 also features a serial shift register, which can be used for serial communication with other devices. This allows the IC to interface with serial peripherals, such as shift registers, serial EEPROMs, and other serial devices. The SY6522 is designed to operate over a wide range of supply voltages, typically from 4.5V to 5.5V, making it compatible with a variety of microprocessor systems.

Its low power consumption makes it suitable for battery-powered applications. The SY6522 is manufactured using high-quality CMOS technology, which ensures its reliability and longevity. Its robust design and stable characteristics make it a dependable choice for demanding applications. Engineers and hobbyists alike will appreciate the SY6522's ease of use and versatility. Its well-documented specifications and readily available datasheets simplify design and troubleshooting. The IC's wide availability and low cost make it an attractive option for budget-conscious projects.

Whether you're designing a retro computer system, an embedded controller, or a general-purpose I/O interface, the SY6522 is an excellent choice. Its combination of flexibility, reliability, and ease of use makes it a valuable asset in any electronic project. Revive your vintage computer projects or create new and innovative designs with the SY6522. Order yours today and unlock the full potential of your electronic creations!
