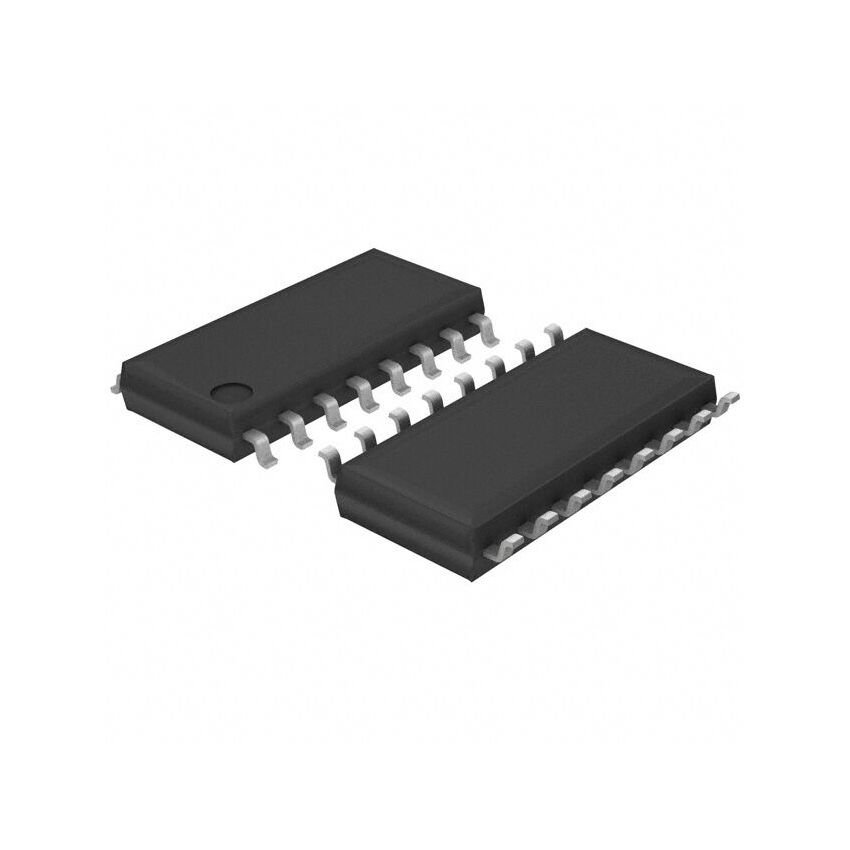

TD62003AF 7CH DARLINGTON SINK DRIVER TD62003AFG

The TD62003AF and TD62003AFG are high-voltage, high-current Darlington sink drivers, each featuring seven independent channels. These integrated circuits are designed for applications requiring reliable switching of inductive loads, such as relays, solenoids, and lamps. With a robust architecture, these drivers offer excellent performance in demanding industrial and automotive environments. The TD62003AF/AFG series provides a cost-effective solution for interfacing low-level logic signals to high-power loads, simplifying circuit design and reducing component count. These devices are essential components for efficient and dependable control systems.

Key features of the TD62003AF/AFG include a high output voltage capability, typically up to 50V, and a substantial sink current capacity per channel. This allows for direct driving of a wide range of loads without the need for external components. The integrated clamp diodes provide protection against inductive kickback, ensuring the longevity and reliability of both the driver and the connected load. Input logic compatibility with various microcontrollers and logic families further enhances the versatility of these drivers. The Darlington configuration ensures high current gain, minimizing the required input current.

The TD62003AF and TD62003AFG are commonly used in applications such as motor control, LED displays, and general-purpose switching circuits. Their ability to handle high currents and voltages makes them ideal for controlling relays in automotive systems, driving solenoids in industrial machinery, and managing LED arrays in signage. The integrated protection features and ease of use contribute to their widespread adoption in diverse electronic systems. Consider these drivers for your next project requiring reliable high-power switching.

These Darlington sink drivers are available in a compact package, facilitating easy integration into existing and new designs. The TD62003AF comes in a through-hole package, while the TD62003AFG is available in a surface-mount package, offering flexibility in assembly and manufacturing. Their robust design and comprehensive feature set make them a preferred choice for engineers seeking a dependable and efficient solution for driving inductive loads. Ensure optimal performance and protection in your applications with these versatile drivers.

Upgrade your control systems with the TD62003AF or TD62003AFG 7-Channel Darlington Sink Driver. Experience reliable high-current switching, integrated protection, and simplified circuit design. Perfect for automotive, industrial, and general-purpose applications. Order yours today and take control of your inductive loads with confidence!
