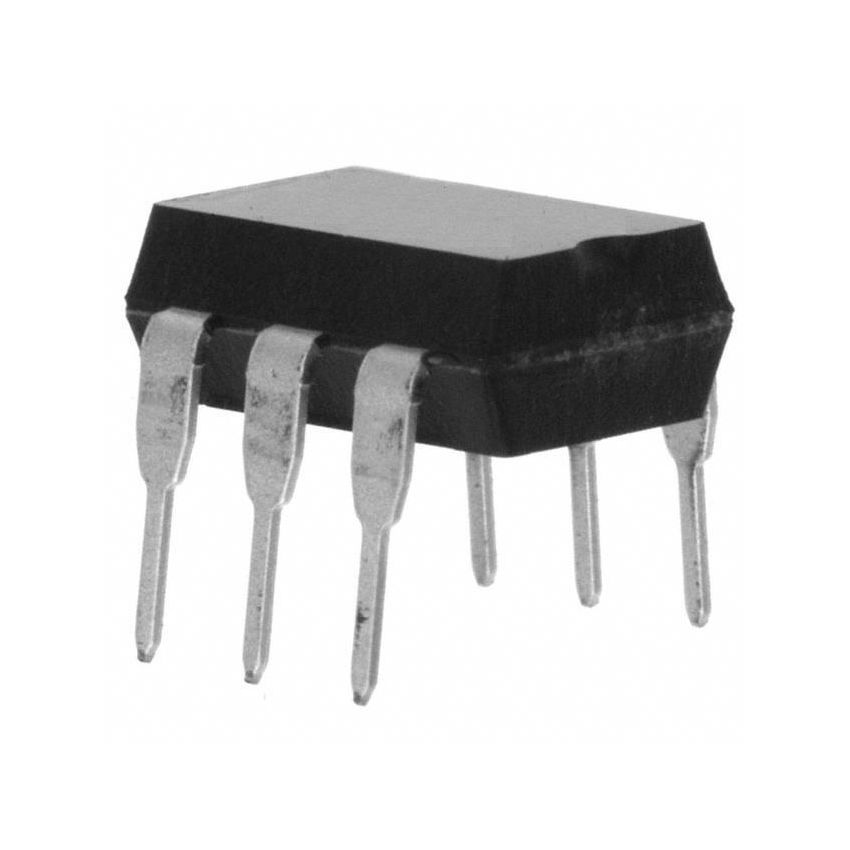

TIL3023 INTEGRATED CIRCUIT DIP-6 = MOC3023

The TIL3023 integrated circuit, also known as MOC3023, is a highly reliable and versatile optocoupler designed for isolating low-voltage control circuits from high-voltage AC power lines. Encased in a DIP-6 (Dual In-line Package) package, it offers ease of mounting and integration into various electronic systems. This optocoupler provides a crucial barrier between sensitive control circuitry and potentially dangerous AC voltages, ensuring the safety of both the equipment and the user. Its primary function is to optically couple an input signal to an output, allowing for electrical isolation and preventing ground loops or voltage spikes from damaging the control circuit.

The TIL3023/MOC3023 is widely used in applications such as solid-state relays, motor control circuits, and lighting control systems. Its ability to provide electrical isolation makes it an essential component in any system where a low-voltage control signal needs to interface with a high-voltage AC power line. The DIP-6 package facilitates easy insertion into standard breadboards and PCBs, making it a popular choice among hobbyists, engineers, and manufacturers alike. The device operates by converting an electrical signal into light, which then triggers a photosensitive device on the output side, effectively transferring the signal without any direct electrical connection.

One of the key advantages of the TIL3023/MOC3023 is its high isolation voltage, which provides a significant safety margin against voltage transients and surges. This ensures that the control circuit remains protected even under adverse conditions. The device also offers a high level of noise immunity, preventing unwanted signals from interfering with the control signal. This is particularly important in industrial environments where electrical noise can be a significant problem. The TIL3023/MOC3023 is designed to meet stringent safety standards, ensuring that it can be used in a wide range of applications without compromising safety.

When selecting an optocoupler for isolating low-voltage control circuits from high-voltage AC power lines, the TIL3023/MOC3023 stands out for its combination of high isolation voltage, noise immunity, and ease of use. Its DIP-6 package makes it easy to integrate into existing circuits, while its robust design ensures reliable operation in demanding environments. Whether you are designing a solid-state relay, a motor control circuit, or a lighting control system, the TIL3023/MOC3023 offers the performance and reliability you need. Its high isolation voltage and noise immunity provide a crucial barrier against voltage transients and electrical noise, ensuring the safety and reliability of your system.

Ready to safeguard your low-voltage control circuits? The TIL3023 (MOC3023) optocoupler is your ultimate solution. Encased in an easy-to-mount DIP-6 package, it provides essential electrical isolation from high-voltage AC power lines, ensuring safety and reliability. Perfect for solid-state relays, motor control, and lighting systems. Don't risk damage – choose the TIL3023/MOC3023 for seamless integration and superior protection. Order yours today and fortify your electronic systems!
