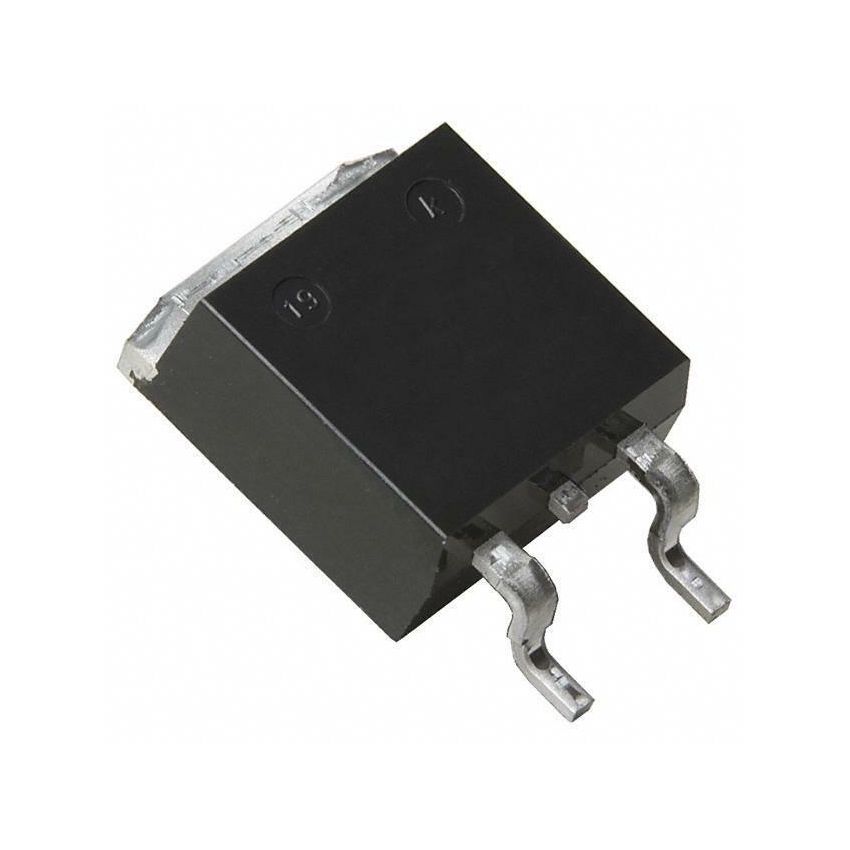

TK3P50D Transistor: N-MOSFET; unipolar; 500V; 3A; 60W; DPAK 1983'

The TK3P50D is a robust N-Channel MOSFET transistor designed for efficient power switching and amplification applications. This unipolar transistor boasts a drain-source voltage of 500V and a continuous drain current of 3A, making it suitable for a variety of medium-power applications. With a power dissipation rating of 60W, it can handle significant power loads. Encased in a DPAK (TO-252) package, this MOSFET offers a compact footprint and excellent thermal dissipation. The TK3P50D is ideal for applications requiring moderate current handling and high voltage capabilities in a space-saving design.

This N-Channel MOSFET features a fast switching speed, enabling it to handle high-frequency switching applications with ease. The low gate charge reduces the drive requirements, simplifying the design of gate drive circuits. Its avalanche energy rating ensures robustness against transient voltage spikes, enhancing the reliability of the system. The TK3P50D is designed to operate over a wide temperature range, making it suitable for both industrial and consumer applications. Its compact size and high performance make it a popular choice for power supplies, motor control, and DC-DC converters.

The TK3P50D finds applications in various power management systems, including synchronous rectification, load switching, and battery charging. Its high voltage capability makes it an excellent choice for off-line power supplies. In motor control applications, it can be used to drive small to medium-sized motors with precise control. Its fast switching speed and low gate charge make it suitable for high-frequency DC-DC converters. The DPAK package allows for easy mounting and efficient heat dissipation, ensuring reliable operation in demanding environments.

When selecting the TK3P50D, consider its key specifications, including the drain-source voltage, continuous drain current, and on-resistance. Ensure that these specifications meet the requirements of your application. Also, verify the gate drive voltage and switching speed to ensure compatibility with your gate drive circuit. Proper heat sinking is essential to maintain the MOSFET's operating temperature within its specified limits. By carefully considering these factors, you can ensure that the TK3P50D provides reliable and efficient performance in your power management system. Upgrade your project with the TK3P50D today!

In summary, the TK3P50D N-Channel MOSFET transistor is a reliable and efficient solution for power switching applications. Its key features include a 500V voltage rating, 3A continuous drain current, and 60W power dissipation. These features make it suitable for a wide range of power management tasks, including synchronous rectification, load switching, and battery charging. Its compact DPAK package simplifies mounting and enhances thermal dissipation. Don't miss out on the opportunity to enhance your project's performance. Order your TK3P50D now and experience the difference!
