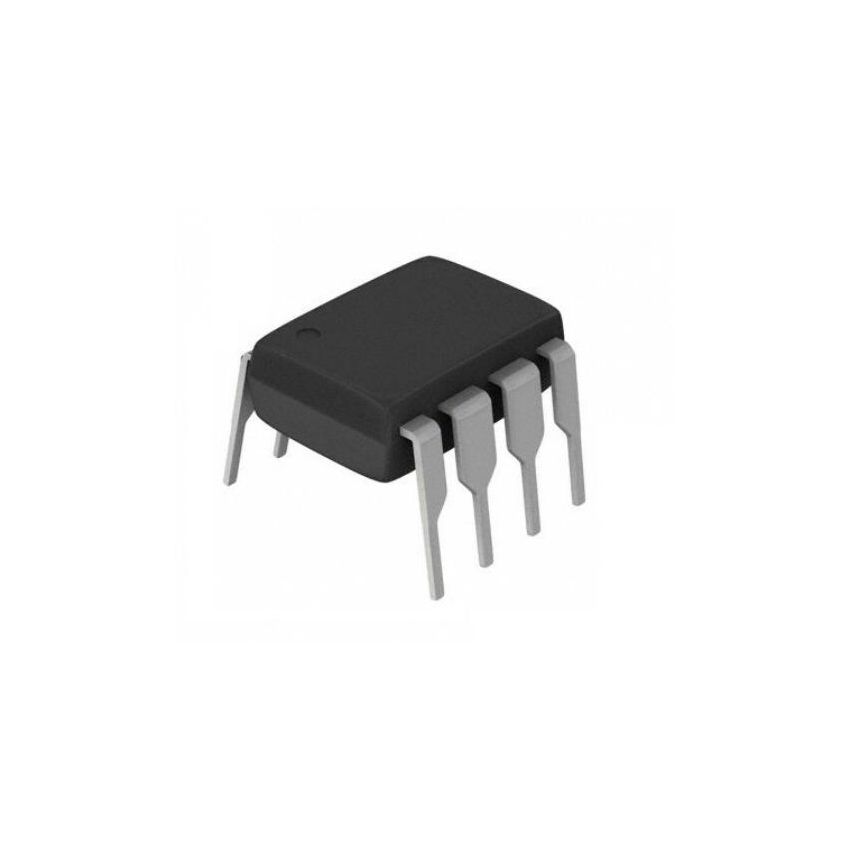

TL431CP Precision Adjustable Shunt Regulator IC - DIP-8 (5 Pack)

FAQs for Products

1. How do I ensure loop stability when using the TL431CP Precision Adjustable Shunt Regulator IC - DIP-8 (5 Pack) with capacitive loads?

   Achieving stability with the TL431CP Precision Adjustable Shunt Regulator IC - DIP-8 (5 Pack) is a primary concern for engineers, as the device can become unstable under certain combinations of cathode current and load capacitance. The IC exhibits a 'stability boundary' where specific ranges of capacitance (typically between 10nF and 10uF) can cause high-frequency oscillation depending on the cathode current. To mitigate this, you should consult the 'Typical Characteristics' curves in the datasheet which map the stable operating regions. For high-precision designs, it is often recommended to use a large output capacitor (greater than 10uF) with a low ESR or, conversely, a very small capacitor (less than 100pF) to avoid the unstable zone entirely. Additionally, adding a series resistor between the cathode and the load capacitor can effectively isolate the capacitive load and dampen oscillations. In applications like SMPS feedback loops, proper frequency compensation using a RC network between the cathode and the reference pin is essential to ensure a robust phase margin and prevent transient ringing.

2. What are the critical design considerations for calculating the resistor divider for the TL431CP Precision Adjustable Shunt Regulator IC - DIP-8 (5 Pack)?

   When setting the output voltage for the TL431CP Precision Adjustable Shunt Regulator IC - DIP-8 (5 Pack), the formula Vout = Vref * (1 + R1/R2) is used, where Vref is nominally 2.495V. However, professional designers must account for the reference input current (Iref), which is typically around 2uA. To minimize the error introduced by Iref, the current flowing through the resistor divider (R1 and R2) should be at least 100 times greater than Iref. This usually leads to choosing an R2 value that allows for approximately 1mA of divider current. While using lower resistance values improves accuracy and noise immunity, it increases the overall power consumption of the circuit. Furthermore, the tolerance of the resistors directly impacts the precision of the output voltage; therefore, using 0.1% or 1% metal film resistors is highly recommended to maintain the inherent accuracy of the TL431CP Precision Adjustable Shunt Regulator IC - DIP-8 (5 Pack). Thermal drift of the resistors should also be matched if the device is intended for use across wide temperature fluctuations.

3. Can the TL431CP Precision Adjustable Shunt Regulator IC - DIP-8 (5 Pack) be used as a standalone comparator in high-voltage sensing applications?

   Yes, the TL431CP Precision Adjustable Shunt Regulator IC - DIP-8 (5 Pack) is frequently utilized as a precision comparator due to its sharp turn-on characteristics and integrated 2.495V reference. In this configuration, the reference pin acts as the non-inverting input. When the voltage at the reference pin exceeds 2.495V, the internal transistor begins to conduct, pulling the cathode voltage down. This makes it an excellent choice for over-voltage protection circuits or battery undervoltage indicators. One major advantage of using the TL431CP Precision Adjustable Shunt Regulator IC - DIP-8 (5 Pack) over a standard comparator like the LM393 is the built-in precision reference, which reduces component count and PCB footprint. However, designers must ensure that the cathode current stays within the operational range of 1mA to 100mA during the 'on' state. If the sensed voltage is significantly higher than the IC's maximum rating of 36V, a high-impedance voltage divider must be used at the reference pin to scale the signal down to the 2.5V threshold safely.

4. What are the minimum and maximum cathode current requirements for the TL431CP Precision Adjustable Shunt Regulator IC - DIP-8 (5 Pack) to maintain regulation?

   Maintaining the correct cathode current (Ik) is vital for the performance of the TL431CP Precision Adjustable Shunt Regulator IC - DIP-8 (5 Pack). The device requires a minimum cathode current, typically 1mA (Imin), to enter the regulation region where the internal bandgap reference and error amplifier are fully functional. If the current drops below this threshold, the device's dynamic impedance increases significantly, leading to poor regulation and unpredictable output voltage. On the upper end, the TL431CP Precision Adjustable Shunt Regulator IC - DIP-8 (5 Pack) is rated for a maximum continuous cathode current of 100mA. Operating near this limit requires careful attention to the power dissipation of the DIP-8 package to prevent thermal shutdown or long-term reliability issues. In most precision reference applications, an operating current between 5mA and 15mA is considered the 'sweet spot,' providing a low dynamic impedance of approximately 0.2 ohms while keeping self-heating to a minimum, which is crucial for maintaining the 50ppm/°C typical temperature coefficient.

5. How does the TL431CP Precision Adjustable Shunt Regulator IC - DIP-8 (5 Pack) perform as an error amplifier in isolated SMPS designs?

   In isolated switch-mode power supplies (SMPS), the TL431CP Precision Adjustable Shunt Regulator IC - DIP-8 (5 Pack) is the industry-standard choice for the secondary-side error amplifier. It is typically paired with an optocoupler (such as the PC817) to provide feedback to the primary-side controller while maintaining galvanic isolation. The IC compares the output voltage (scaled via a divider) against its internal 2.495V reference. The difference is amplified, and the resulting cathode current modulates the optocoupler's LED brightness. This configuration allows the TL431CP Precision Adjustable Shunt Regulator IC - DIP-8 (5 Pack) to provide high DC gain, which is essential for tight load and line regulation. Designers must implement a compensation network (Type II or Type III) using capacitors and resistors between the cathode and reference pins to manage the feedback loop's crossover frequency and gain margin. The DIP-8 package of this TL431CP Precision Adjustable Shunt Regulator IC - DIP-8 (5 Pack) is particularly useful in industrial SMPS prototyping as it allows for easy swapping of compensation components during the tuning phase.

6. Why is the TL431CP Precision Adjustable Shunt Regulator IC - DIP-8 (5 Pack) preferred over standard Zener diodes for voltage regulation?

   The TL431CP Precision Adjustable Shunt Regulator IC - DIP-8 (5 Pack) offers several significant technical advantages over traditional Zener diodes. First and foremost is the adjustability; while Zeners are fixed at specific voltages, the TL431CP can be programmed to any voltage between 2.495V and 36V using two external resistors. Secondly, the TL431CP features a much sharper 'knee' characteristic, meaning it transitions from non-conducting to conducting much more abruptly than a Zener. This is due to its internal high-gain error amplifier, which results in a dynamic impedance of about 0.2 ohms, compared to several ohms or even tens of ohms for many Zener diodes. Furthermore, the TL431CP Precision Adjustable Shunt Regulator IC - DIP-8 (5 Pack) provides superior temperature stability. While Zener voltages drift significantly with temperature (especially those above 5V), the TL431CP's internal bandgap reference is temperature-compensated, ensuring a stable output across the commercial 0°C to 70°C range. This makes it a far more reliable component for precision instrumentation and stable power supply rails.

7. What are the thermal and mechanical benefits of the DIP-8 package for the TL431CP Precision Adjustable Shunt Regulator IC - DIP-8 (5 Pack)?

   The DIP-8 (Dual In-line Package) version of the TL431CP Precision Adjustable Shunt Regulator IC - DIP-8 (5 Pack) is highly valued for both prototyping and rugged industrial applications. Mechanically, the through-hole design provides a much stronger physical connection to the PCB than surface-mount alternatives like SOT-23, making it ideal for environments subject to high vibration or mechanical stress. From a thermal perspective, the DIP-8 package offers a higher power dissipation rating (typically around 1000mW at 25°C ambient) compared to smaller packages, allowing the IC to handle higher cathode currents without exceeding the maximum junction temperature. The larger physical size also facilitates easier heat dissipation into the PCB traces. For engineers, the DIP-8 format of the TL431CP Precision Adjustable Shunt Regulator IC - DIP-8 (5 Pack) is indispensable for breadboarding new designs and allows for the use of IC sockets, which simplifies troubleshooting and component replacement in the field without the need for specialized de-soldering equipment required for SMD components.
