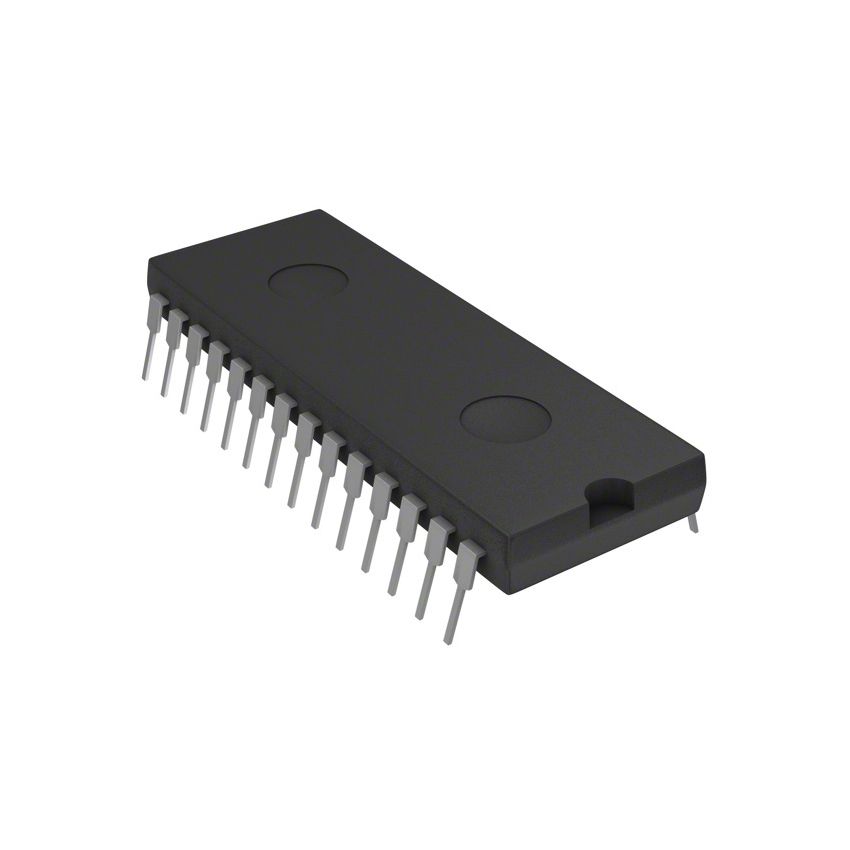

U63764DC70G1 8K x 8 nvSRAM CapStore IC DIP-28

The U63764DC70G1 8K x 8 nvSRAM CapStore IC, presented in a robust DIP-28 package, represents a pinnacle of non-volatile memory technology, offering a unique blend of high-speed SRAM performance with the data retention capabilities of non-volatile memory. This 64Kbit (8K words by 8 bits) non-volatile Static Random Access Memory (nvSRAM) is meticulously designed for applications where critical data must be preserved instantaneously and reliably without the need for external power or batteries. The integrated CapStore feature, a self-contained energy storage element, ensures that data is automatically and securely transferred from the volatile SRAM to the non-volatile memory cells upon power loss, and then restored upon power-up. This seamless operation guarantees data integrity, making it an indispensable component for systems demanding both speed and absolute data persistence.

Engineered for mission-critical applications, the U63764DC70G1 boasts impressive operational specifications that set it apart in the memory landscape. With an access time of 70ns, this nvSRAM delivers speeds comparable to standard SRAM, enabling high-performance data processing and rapid system responsiveness, crucial for real-time operations. The 8K x 8-bit organization provides a total of 64 kilobits of storage, perfectly sized for buffering critical system configurations, transaction logs, or event data. Housed in a durable DIP-28 (Dual In-line Package) form factor, it offers ease of integration into existing designs, especially in industrial or legacy systems where through-hole components are preferred or required. Its wide operating voltage range further enhances its versatility, allowing it to be deployed in diverse power environments without compromising performance or reliability.

The U63764DC70G1 finds its ideal application in sectors where data loss can have severe consequences, making it a cornerstone for system reliability. In industrial automation, it is crucial for storing machine state, process parameters, and production data in PLCs, CNC machines, and robotics, ensuring seamless recovery after unexpected power outages. Point-of-Sale (POS) systems leverage its non-volatile nature for transaction logging and electronic journal storage, guaranteeing that no sales data is lost. Medical devices utilize it for patient data, calibration settings, and event logs, where data integrity is paramount for safety and efficacy. Furthermore, its rapid access and non-volatile attributes make it suitable for network equipment, gaming machines, and security systems, providing robust and instantaneous data backup without the complexities of battery-backed SRAM or the slower write times of EEPROMs or Flash memory.

A standout feature of the U63764DC70G1 is its integrated CapStore technology. Unlike traditional battery-backed SRAM (BBSRAM) which relies on an external battery that can fail or leak, the CapStore system utilizes an internal capacitor to provide the necessary energy for data transfer to the non-volatile elements during power down. This eliminates the need for battery maintenance, reduces overall system cost and complexity, and enhances long-term reliability by removing a common point of failure. The device automatically detects power loss and initiates the data save operation, requiring no external intervention from the host processor. Similarly, upon power restoration, data is automatically recalled from the non-volatile storage back into the SRAM, ensuring transparent operation and immediate availability of critical information, significantly improving system uptime and data integrity.

The U63764DC70G1 offers a distinct competitive advantage by combining the best attributes of both volatile and non-volatile memory technologies. Its SRAM-like speed ensures that system performance is not hindered, while the integrated non-volatile backup guarantees data persistence, a critical factor for mission-critical applications. This hybrid approach simplifies design by consolidating two memory functions into a single component, reducing board space, power consumption, and overall bill of materials. The DIP-28 package, while larger than surface-mount alternatives, provides excellent thermal dissipation and robustness, making it suitable for harsh industrial environments and for easier prototyping and repair. This nvSRAM represents a strategic investment for designers seeking robust data protection and high performance without the liabilities associated with traditional non-volatile memory solutions.

Elevate the reliability and performance of your critical systems with the U63764DC70G1 8K x 8 nvSRAM CapStore IC DIP-28. This innovative memory solution provides the ultimate combination of high-speed data access and guaranteed non-volatile data retention, all within a single, easy-to-integrate package. Ideal for industrial controls, POS systems, medical equipment, and any application where data integrity is non-negotiable, this nvSRAM eliminates the complexities and risks of external battery backup. Don't compromise on speed or data security. Secure your supply of the U63764DC70G1 today and empower your designs with a memory solution built for unwavering performance and ultimate peace of mind. Purchase now and ensure your critical data is always safe, accessible, and ready when you are.
