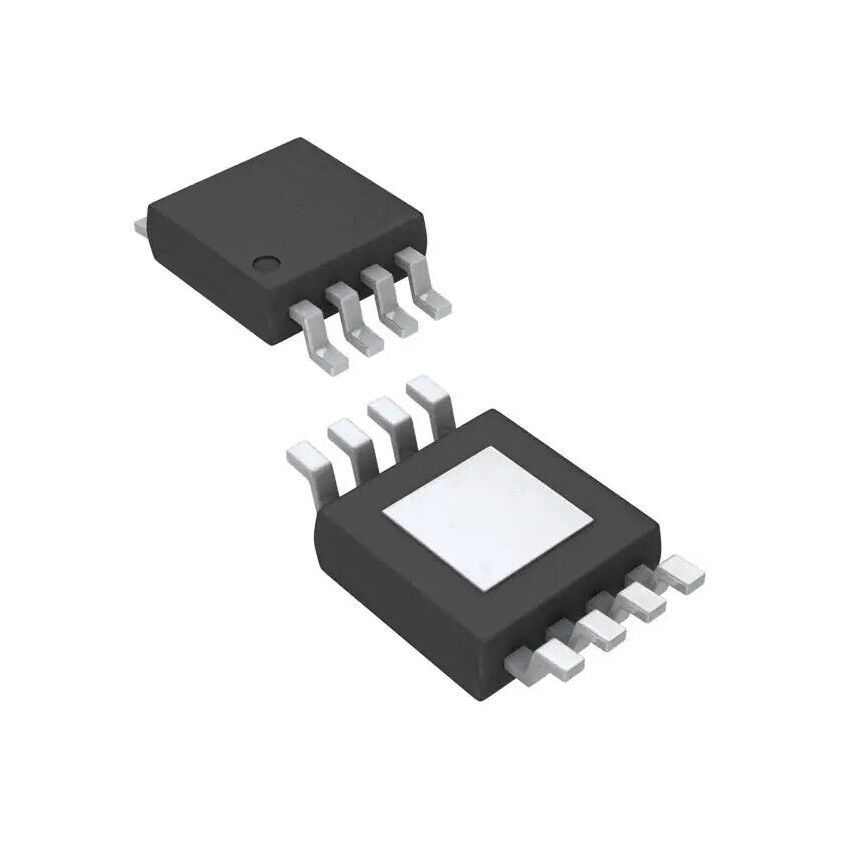

UCC37321DGN Low-Side Gate Driver IC Inverting 8-HVSSOP

The UCC37321DGN is a high-speed, low-side gate driver IC designed to efficiently drive MOSFETs and IGBTs in a variety of power electronics applications. Housed in an 8-HVSSOP package, this inverting gate driver offers a compact footprint while delivering robust performance. Its primary function is to amplify the control signal from a microcontroller or other logic device to a level suitable for driving the gate of a power transistor. This ensures fast switching speeds, reduced switching losses, and improved overall system efficiency. The UCC37321DGN is an ideal choice for applications requiring precise and reliable gate control.

This low-side gate driver IC features an inverting configuration, meaning that a low-level input signal will result in a high-level output signal, and vice versa. This is a common configuration in many power electronics circuits, allowing for straightforward integration with existing control systems. The UCC37321DGN is capable of delivering high peak current to quickly charge and discharge the gate capacitance of power transistors, minimizing switching times and reducing power dissipation. Its robust design and high-voltage capabilities make it suitable for demanding applications such as motor drives, power supplies, and DC-DC converters.

The UCC37321DGN is designed with several key features to enhance its performance and reliability. These include under-voltage lockout (UVLO) protection, which prevents the gate driver from operating when the supply voltage is too low, protecting the power transistor from damage. The IC also incorporates thermal shutdown protection, which disables the gate driver if the junction temperature exceeds a safe limit, preventing overheating and ensuring long-term reliability. These protection features make the UCC37321DGN a robust and dependable solution for driving power transistors.

The 8-HVSSOP package of the UCC37321DGN offers excellent thermal performance and a compact footprint, making it easy to integrate into space-constrained applications. The package also provides good electrical isolation, minimizing the risk of noise and interference. The UCC37321DGN is compatible with a wide range of power transistors, including MOSFETs and IGBTs, making it a versatile solution for various power electronics designs. Its high-speed switching capabilities and robust protection features make it an excellent choice for demanding applications.

Upgrade your power electronics designs with the UCC37321DGN low-side gate driver IC. Its inverting configuration, high-speed switching capabilities, and robust protection features make it an ideal choice for driving MOSFETs and IGBTs in a variety of applications. Improve the efficiency and reliability of your systems with this compact and powerful gate driver. Order your UCC37321DGN today and experience the difference it can make in your power electronics designs. Click here to purchase now and take your designs to the next level.
