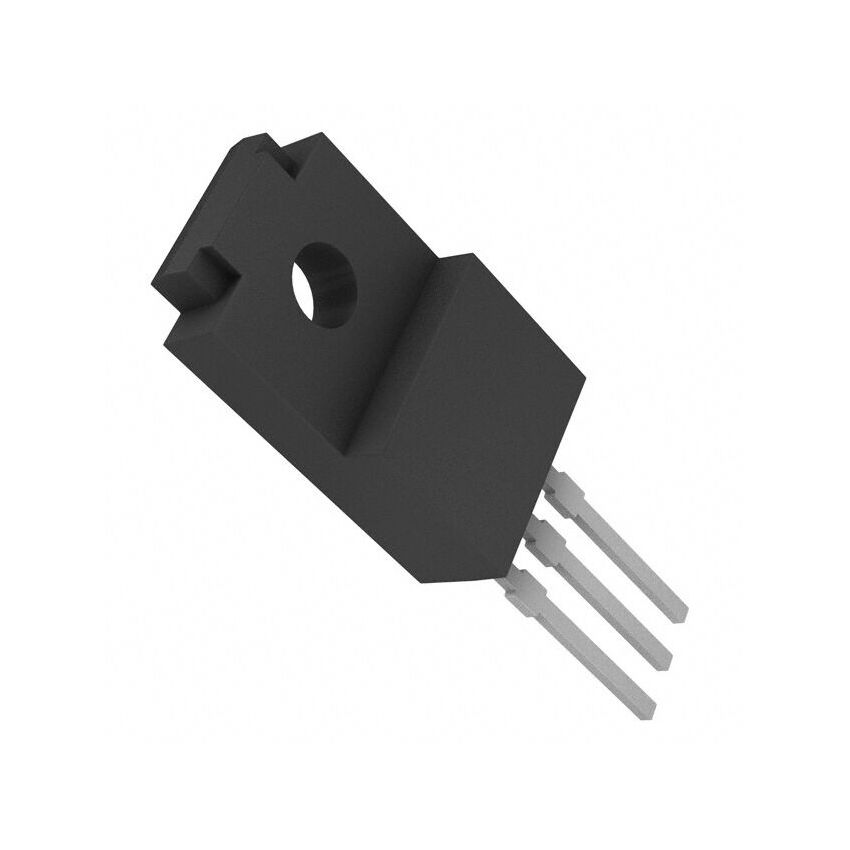

2SA1441 + 2SC3691 TRANSISTOR TO-220FP (PAIR)

This matched pair of 2SA1441 and 2SC3691 transistors offers a powerful and reliable solution for audio amplification and power switching applications. These high-performance transistors, housed in the robust TO-220FP (Full Pack) package, are designed to deliver exceptional linearity, low distortion, and high power handling capabilities. This complementary pair ensures balanced amplification, making them ideal for constructing high-fidelity audio amplifiers and other demanding circuits. The TO-220FP package provides excellent thermal dissipation, allowing these transistors to operate at high power levels without overheating. This feature is critical for maintaining stability and reliability in demanding applications. The 2SA1441 is a PNP transistor, while the 2SC3691 is an NPN transistor.

Their complementary characteristics make them a perfect match for push-pull amplifier configurations. This configuration reduces distortion and improves efficiency compared to single-ended designs. Key electrical characteristics include high collector-emitter voltage, high collector current, and low saturation voltage. These specifications enable these transistors to handle significant power levels while minimizing losses. The TO-220FP package provides full insulation to the metal tab, reducing the need for separate insulating materials and making installation easier and safer. This insulation also helps to improve thermal performance by allowing for direct mounting to a heatsink without the risk of electrical shorts.

From a technical standpoint, the 2SA1441 and 2SC3691 transistors are manufactured using advanced silicon technology, ensuring consistent performance and reliability. Their internal structure is optimized for high-frequency operation, making them suitable for a wide range of audio and RF applications. These transistors are ideal for use in high-power audio amplifiers, power supplies, motor control circuits, and other applications that require high-current switching. In audio amplifiers, the 2SA1441 and 2SC3691 can deliver clean, undistorted sound, even at high volume levels. Their excellent linearity ensures that the amplified signal accurately replicates the original audio input, providing a high-fidelity listening experience. In power supplies, these transistors can be used to regulate voltage and current, ensuring stable and reliable operation of electronic devices.

They are also suitable for use in motor control circuits, where they can switch high currents to control the speed and direction of motors. These transistors can also be found in linear power amplifiers, switching regulators, and DC-DC converters. In short, the 2SA1441 and 2SC3691 transistor pair provides a superior solution for high-power amplification and switching needs. If you are looking to enhance the performance and reliability of your audio amplifier or power supply, this matched pair is the perfect choice. Don't miss out on the opportunity to elevate your projects with these high-quality transistors. Click 'Add to Cart' now and experience the difference in your circuits!
